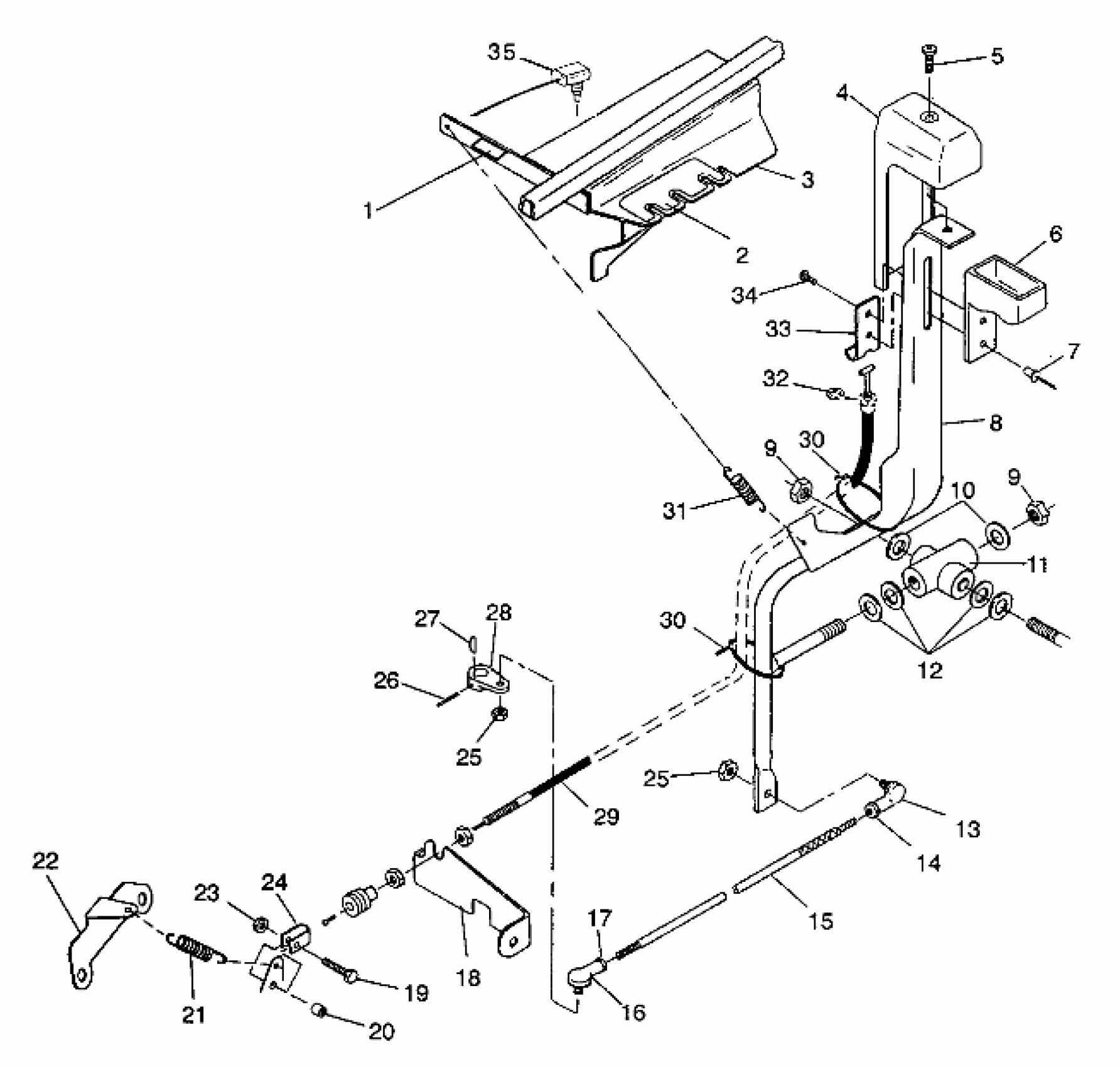

Polaris 350L 4X4 - W938139 SHIFT LINKAGE ASSEMBLY 4X4 350L W938139 (4924052405031A) Diagram

#

Description
Price

1

TRIM, EDGE Substituted by 5521131

8360012-067

Unavailable

2

DECAL,SHIFT PATTERN [No Longer Available]

7072905

Unavailable

3

PLATE, SHIFT

1341079

$13.99

4

HANDLE,SHIFT LEVER

5431267

Unavailable

5

SCREW(10)

7512029

Unavailable

6

LEVER,SHIFT(ACTUATOR)

5431266

Unavailable

7

RIVET, POP(50)

7621322

$0.56

8

LEVER,SHIFT WELD.

1341069-067

Unavailable

9

NUT FLEX-LOC(10)

7542303

$6.39

9

NUT FLEX-LOC(10)

7542303

$6.39

10

WASHER,WROUGHT(10)

7558302

$1.59

11

BLOCK,SHIFT POINT

5431106

$44.51

12

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

13

ROD END, LH Substituted by 7061013

7060141

$65.33

14

NUT(10)

7546702

$1.49

15

ROD,SHIFT LINKAGE

5020538

Unavailable

16

ROD END, RH Substituted by 7061014

7060142

$65.33

17

NUT(10)

7546701

$3.99

18

SHIFTLOCK, CABLE,BLK.

5222569-067

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

20

BUSHING

5332795

$5.56

21

SPRING,TRANSMISSION LOCK

7042043

$13.99

22

BRKT,SPRING,SHIFTLOCK

5222570-067

Unavailable

23

NUT HEX-LOCK(10)

7542101

$3.99

24

PIN, CLEVIS

7080316

Unavailable

25

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

25

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

26

PIN, SPIRAL(10)

7661506

Unavailable

27

KEY, HI-PRO

7721113

Unavailable

28

LEVER, SHIFT

5130783

Unavailable

29

CABLE, SHIFT

7080420

Unavailable

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

SPRING,SHIFT LEVER

7041227

$5.75

32

RING,RETAIN.EXT.(10)

7710421

$1.83

33

CLIP,CABLE CONNECT.

5222576

Unavailable

34

SCREW(10)

7511868

Unavailable

35

SWITCH

4110090

Unavailable
