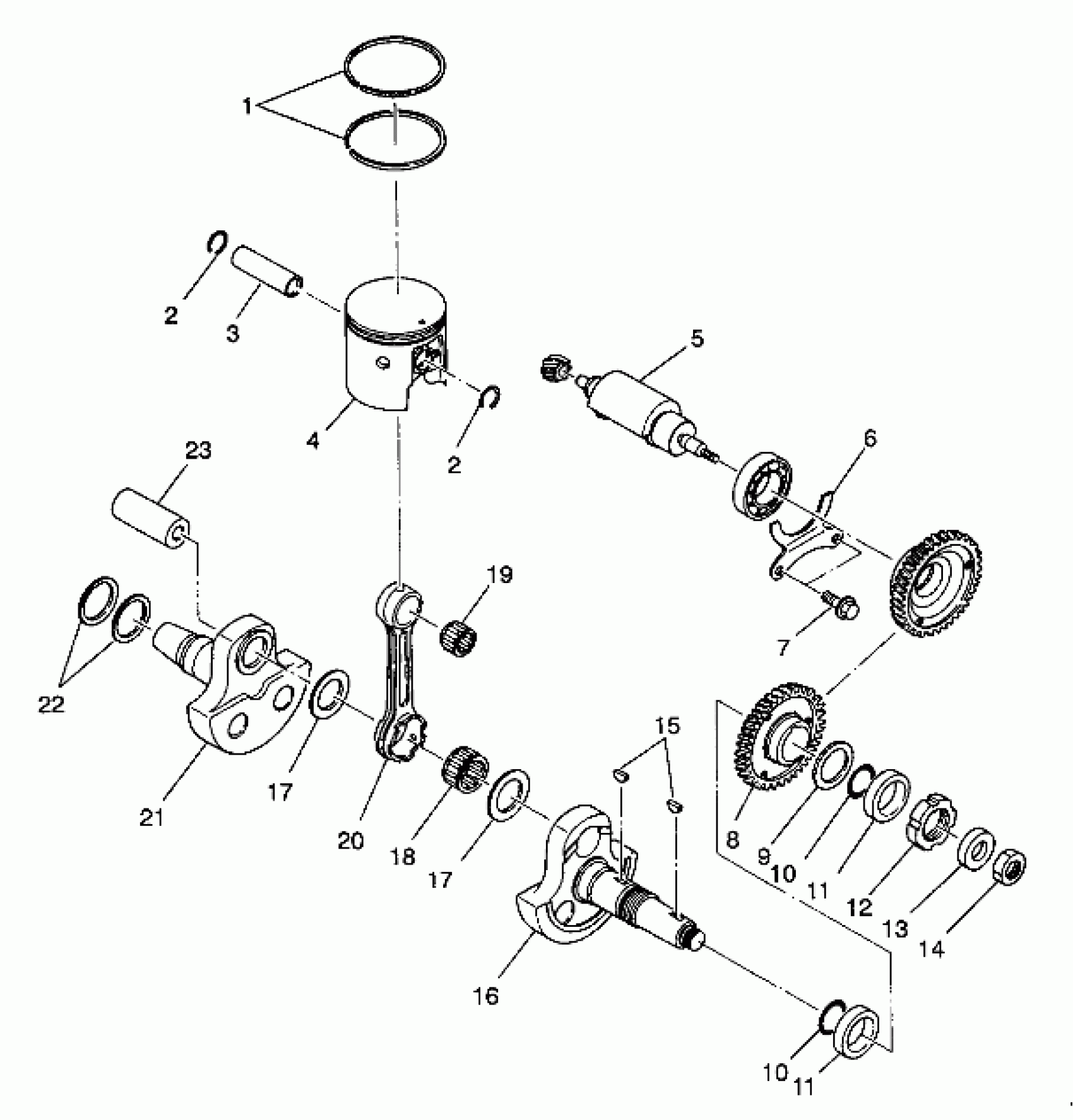

Polaris 350L 4X4 - W938139 PISTON and CRANKSHAFT 4X4 350L W938139 (4924052405037A) Diagram

#

Description
Price

-

RING,PISTON,(.020 O/S)

3084166

Unavailable

1

RING,PISTON,(.010 O/S)

3084165

Unavailable

1

RING, PISTON,(STD.)

3084164

Unavailable

2

CLIP,(10)

3084167

$6.39

2

CLIP,(10)

3084167

$6.39

3

Pin, Piston

3083838

$27.99

4

PISTON, (.010 O/S) *

3084162

Unavailable

4

PISTON, (.020 O/S)

3084163

Unavailable

4

PISTON, (STD.)

3084161

Unavailable

5

BALANCER Substituted by 3087042 (Incl. 6,7)

3084172

Unavailable

6

PLATE Substituted by 3086768

3084173

$25.40

7

BOLT, FLANGE Substituted by 3086769

3084174

Unavailable

8

GEAR, DRIVE *

3084156

$110.32

9

WASHER, GUIDE Substituted by 3086764

3084159

Unavailable

10

O RING

3084160

Unavailable

10

O RING

3084160

Unavailable

11

COLLAR Substituted by 3086763

3084158

Unavailable

11

COLLAR Substituted by 3086763

3084158

Unavailable

12

NUT, SLIT Substituted by 3086762

3084157

Unavailable

13

WASHER Substituted by 3086767

3083904

Unavailable

14

LOCKNUT

3083905

Unavailable

15

KEY WOODRUFF

3081543

$12.94

16

CRANKSHAFT #1,MAG SIDE

3084149

$216.99

16

CRANKSHAFT ASM,(350L) Substituted by 3084776 (Incl. 17, 18, 20, 21, 23)

3084367

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

17

Spacer, Crank Pin

3084155

Unavailable

18

Bearing, Large End

3084154

Unavailable

19

Bearing, Small End

3084168

$31.99

20

Rod, Connecting

3084153

Unavailable

21

CRANKSHAFT #2,PTO SIDE

3084151

$223.01

22

SPACER #2, (0.3)

3084170

Unavailable

23

PIN, CRANK #1

3084152

$78.39
