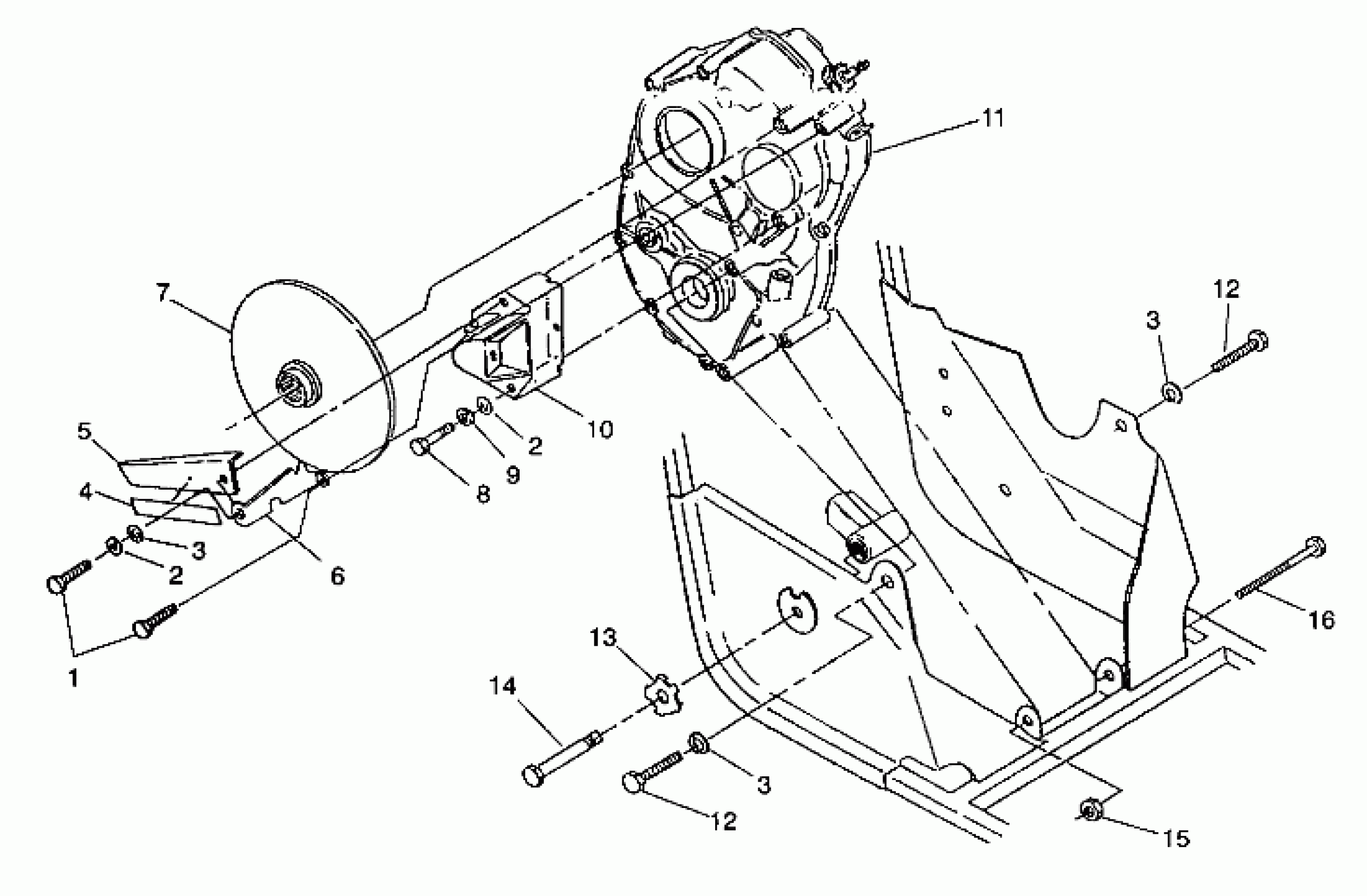

Polaris 350L 4X4 - W938139 GEARCASE/BRAKE MOUNTING 4X4 350L W938139 (4924052405027A) Diagram

#

Description
Price

1

SCREW(10)

7512307

$3.97

2

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

2

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER(10)

7552603

$0.79

3

WASHER(10)

7552603

$0.79

3

WASHER(10)

7552603

$0.79

4

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

5

COVER,BRAKE DISC.

5222563-067

Unavailable

6

SHIFTLOCK, CABLE,BLK.

5222569-067

Unavailable

7

DISC, BRAKE

1910087

Unavailable

8

BOLT(10)

7515345

$5.56

9

LOCK WASHER(10)

7552901

$1.19

10

CALIPER, R.BRAKE

1910073

Unavailable

11

1 Asm., Gearcase (See Gearcase Assembly pg.34)

----

Unavailable

12

BOLT(10) Substituted by 7512492

7515458

$1.19

12

BOLT(10) Substituted by 7512492

7515458

$1.19

13

PLATE,BOLT LOCK

5220958

$36.41

14

BOLT, SHOULDER

7512701

$23.81

14

BOLT, SHOULDER

7512702

Unavailable

15

NUT LOCK(10)

7542403

Unavailable

16

BOLT(10)

7515472

$2.38
