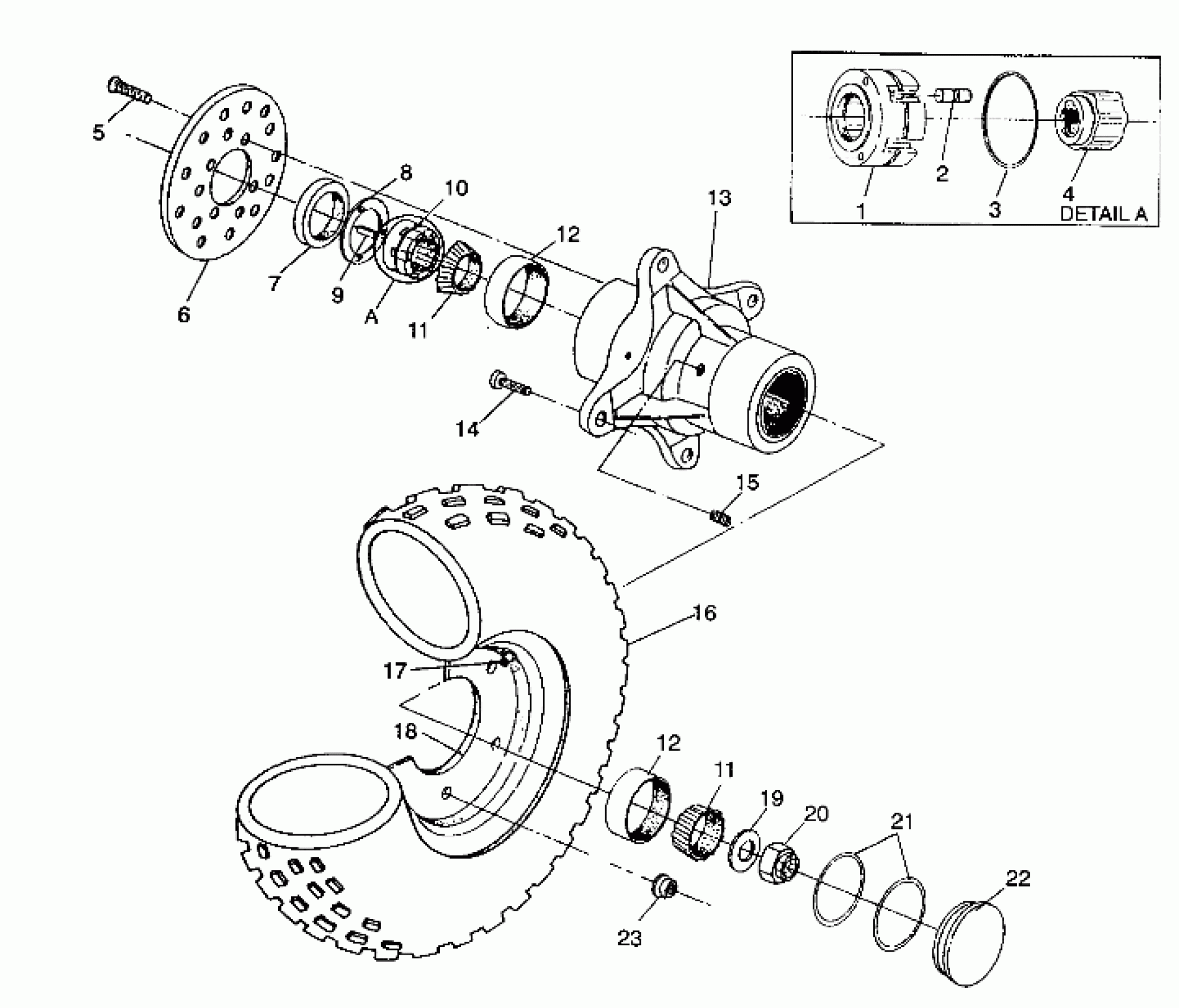

Polaris 350L 4X4 - W938139 FRONT WHEEL ASSEMBLY 4X4 350L / W938139 (4924052405015A) Diagram

#

Description
Price

1

CAGE, ROLL Substituted by 3250028

3250023

$218.56

2

ROLLS

3250010

$35.99

3

SPRING, GARTER

3250022

Unavailable

4

CAM

3250024

$140.09

5

BOLT(10)

7515321

$1.49

6

DISC, BRAKE Substituted by 5242935

5211326

$89.03

7

SEAL, FR. HUB

3610019

$35.99

8

Plate, Armature

5211148

$23.99

9

KEY

7721205

Unavailable

10

CLUTCH ASM,FR.HUB

1520143

$307.49

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

HUB ASM,W/BRG.RACE (Incl. 7, 12, 14)

1520182

Unavailable

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(25X8-12) (25x8x12)

5410568

Unavailable

17

VALVE-RIM

1525017

$5.59

18

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

1520179-117

$90.87

19

WASHER, RETAINER

5211101

Unavailable

20

KIT, NUT

2203005

Unavailable

21

O RING

5410470

$2.41

22

CAP, HUB

5431368

$23.99

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59
