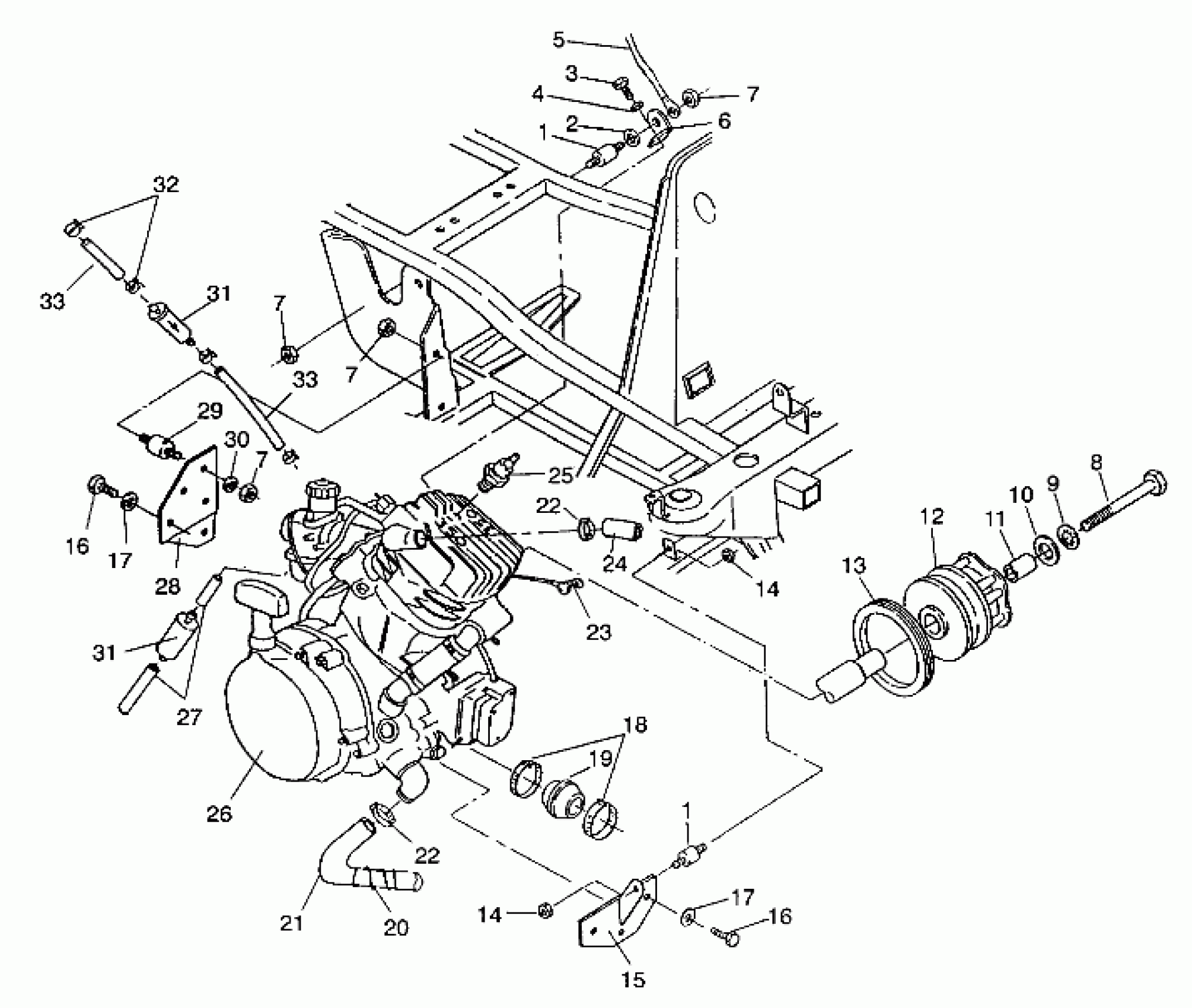

Polaris 350L 4X4 - W938139 ENGINE MOUNTING 4X4 350L W938139 (4924052405004A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

MOUNT,ENG.TOP

5222415-067

Unavailable

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

Asm., Drive Clutch (See Drive Clutch Assembly pg. 25)

-------

Unavailable

13

Seal, Cover Case (See Clutch Cover Assembly pg. 24)

-------

Unavailable

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

MOUNT,ENGINE

1040231-067

Unavailable

16

SCREW(10)

7512490

$3.99

16

SCREW(10)

7512490

$3.99

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

18

CLAMP, NARROW BAND(10)

7080511

$4.79

19

BOOT,CLUTCH INTAKE

5410421

$11.19

20

SPRING,HOSE RETAINER

7041079

$4.95

21

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

22

CLAMP-HOSE,(10) Substituted by 7080475

7080233

$10.32

22

CLAMP-HOSE,(10) Substituted by 7080475

7080233

$10.32

23

INSULATOR-CABLE

5410346

$6.39

24

HOSE,ENG,UPPER

5410570

$44.51

25

SPARKPLUG (10)

3070156

$3.99

26

ENG.EC35PL-02 [No Longer Available]

1211466

Unavailable

27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

MOUNT,REAR,ATV

5222416-067

Unavailable

29

MOUNT, MOTOR

3110028

Unavailable

30

WASHER(10)

7555801

$3.99

31

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

31

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

32

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

33

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

33

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable
