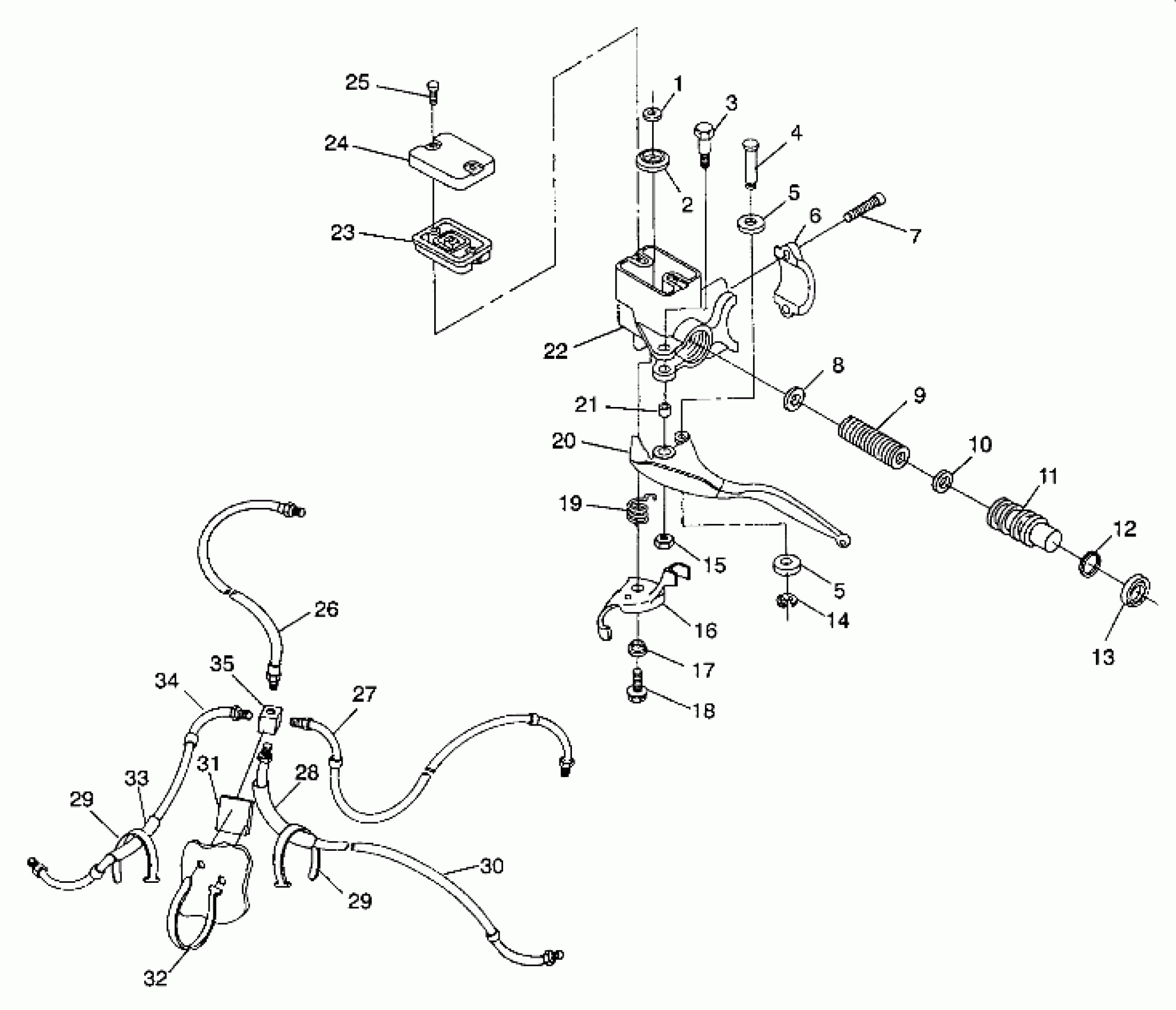

Polaris 350L 4X4 - W938139 CONTROLS - MASTER CYLINDER/BRAKE LINE 4X4 350L W938139 (4924052405021A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

PIN,BRAKELEVER ROLLER

7661627

Unavailable

5

ROLLER, BRAKE LEVER

5020598

Unavailable

5

ROLLER, BRAKE LEVER

5020598

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BOLT,SOCKET HEAD(10)

7512290

$4.79

8

WASHER(10)

7555708

$3.99

9

SPRING,COMPRESSION,(10)

7041203

$33.87

10

U PACKING SEAL

5410164

Unavailable

11

PISTON, MASTER CYL.

5020599

Unavailable

12

O RING

5410163

$1.60

13

SEAL, OIL

3610022

Unavailable

14

RING, RETAINING(10)

7710425

Unavailable

15

NUT(10)

7542124

Unavailable

16

LEVER,PARK.BRAKE

2050060

$5.75

17

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

18

SCREW(10)

7511866

$4.79

19

SPRING,PK.BRAKE

7041229

$32.37

20

LEVER, BRAKE

5630387

Unavailable

21

BUSHING,BRAKE LEVER

5332931

Unavailable

22

HSG.,MASTER CYL.

5130772

Unavailable

23

GASKET,MASTER CYL.

5410527

$8.99

24

COVER,MASTER CYL.

5630338

Unavailable

25

SCREW,W/WASHER(10)

7512050

$3.99

26

LINE,BRAKE,UP./FTGS.

1930748

$87.99

27

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

28

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

29

STRAP, BLK

7080272

Unavailable

29

STRAP, BLK

7080272

Unavailable

30

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

31

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

32

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

33

CONDUIT, 38 CM.

8360031-38

$2.63

34

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

35

FITTING, TEE

7052044

Unavailable
