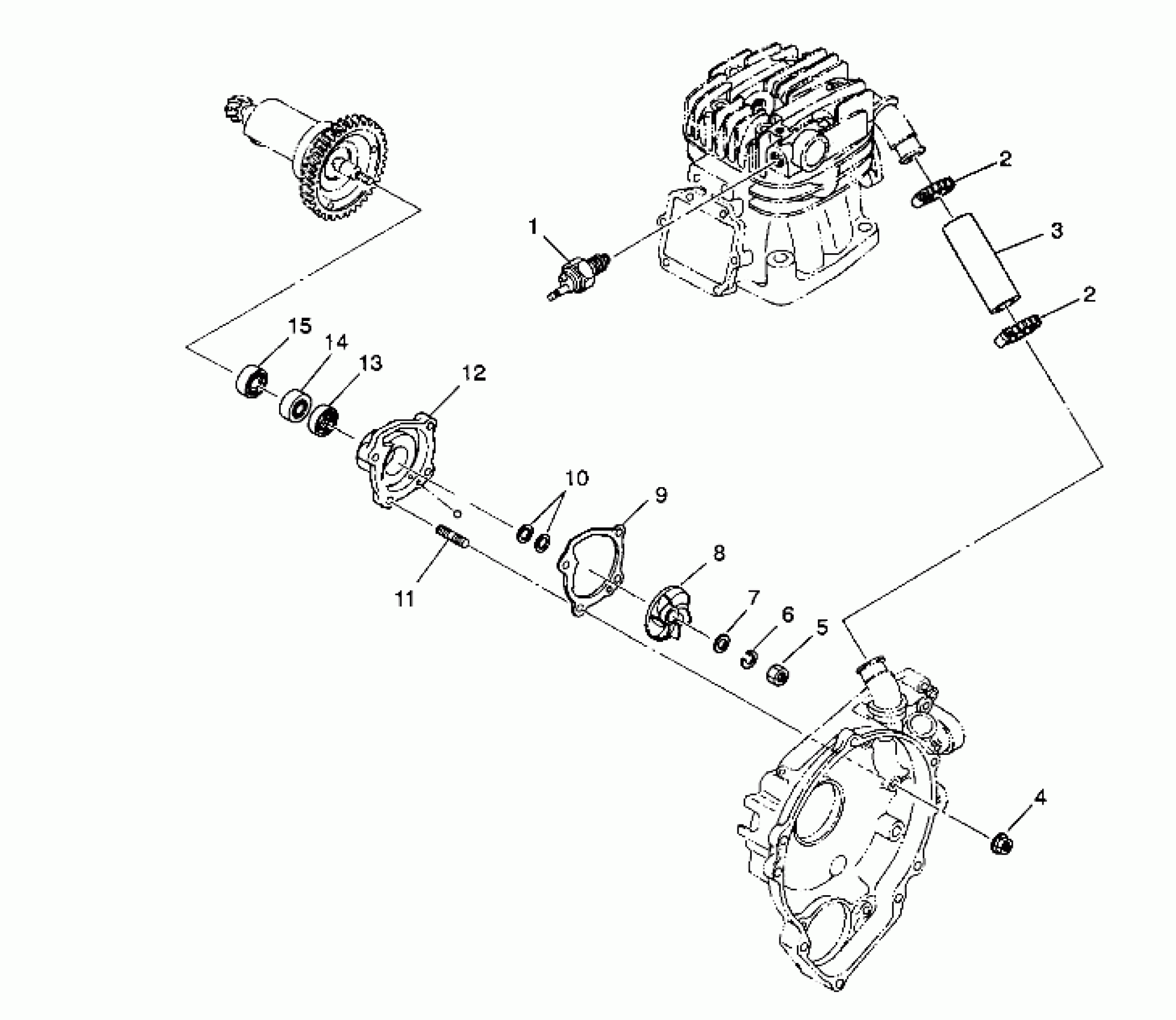

Polaris 350L 2X4 - W937539 WATER PUMP 2X4 350L W937539 (4924032403033A) Diagram

#

Description

Price

1

SWITCH,THERMAL,IOS

3084284

Unavailable

2

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

2

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

3

HOSE, MAIN Substituted by 3086773

3084190

Unavailable

4

NUT, FLANGE(10)

3083856

$2.38

5

Nut

3083073

$2.38

6

WASHER SPRING(10)

3080077

$2.38

7

Washer

3082206

$0.63

8

Impeller

3084186

Unavailable

9

GASKET (Casing)

3084187

Unavailable

10

SPACER #3, (0.1)

3084188

Unavailable

10

SPACER #4, (0.2)

3084189

Unavailable

11

STUD

3084182

Unavailable

12

CASING, WATER PUMP (Incl. 11)

3084181

Unavailable

13

Seal, Oil

3084185

Unavailable

14

Seal, Oil

3084184

Unavailable

15

Bearing, Ball

3084183

Unavailable
