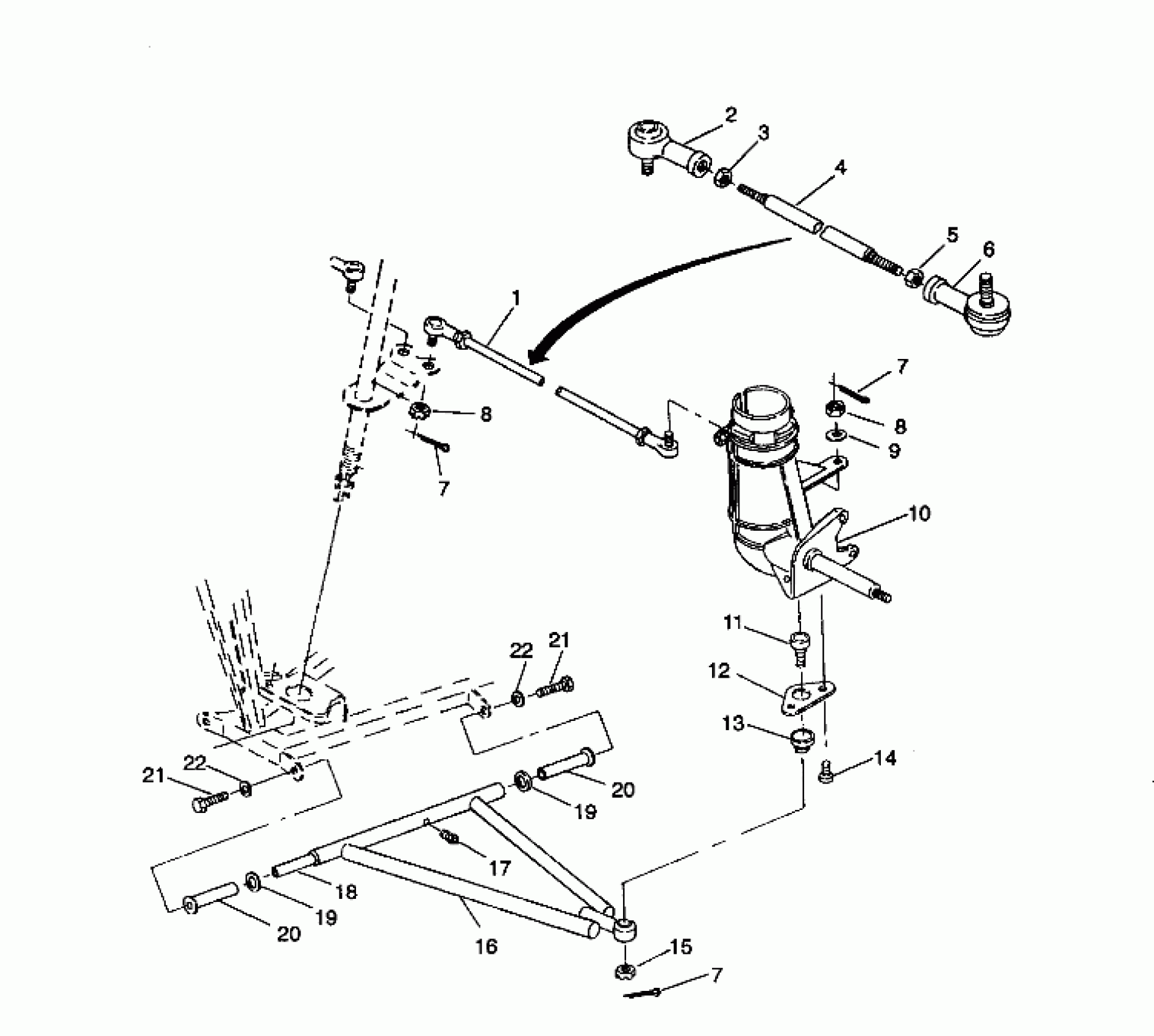

Polaris 350L 2X4 - W937539 STEERING/A-ARM ASSEMBLY 2X4 350L W937539 (4924032403016A) Diagram

#

Description
Price

1

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

2

ROD END, RH Substituted by 7060172

7060138

$56.65

3

NUT, RH, 10 MM.(10)

7546901

$2.39

4

TIE ROD

5020478

$48.56

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END

7060147

$56.65

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

8

NUT, CASTLE(10)

7546904

$4.79

8

NUT, CASTLE(10)

7546904

$4.79

9

WASHER(10)

7555806

$1.49

10

Support,Strut & Spindle,RH (See Pg.11 Ref.16)

-------

Unavailable

10

Support,Strut & Spindle,LH (See Pg.11 Ref.16)

-------

Unavailable

11

BALL JOINT Substituted by 7080673

7080364

Unavailable

12

BRACKET-BALL JOINT

5211121

$31.99

13

Boot, Rubber

5410548

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

15

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

16

A-FRAME, LH, BLK. Substituted by 2200479

1580060-067

Unavailable

16

A-FRAME, RH, BLK. Substituted by 2200480

1580061-067

Unavailable

17

ZERK,FITTING,THREADED(10)

7080433

$1.49

18

SHAFT, A-ARM,(2X4)

5020680

Unavailable

19

BUSHING,A-ARM SPACER(10)

5020677

$10.39

19

BUSHING,A-ARM SPACER(10)

5020677

$10.39

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

20

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

21

BOLT(10) Substituted by 7512492

7515458

Unavailable

21

BOLT(10) Substituted by 7512492

7515458

Unavailable

22

WASHER(10)

7552603

$1.49

22

WASHER(10)

7552603

$1.49
