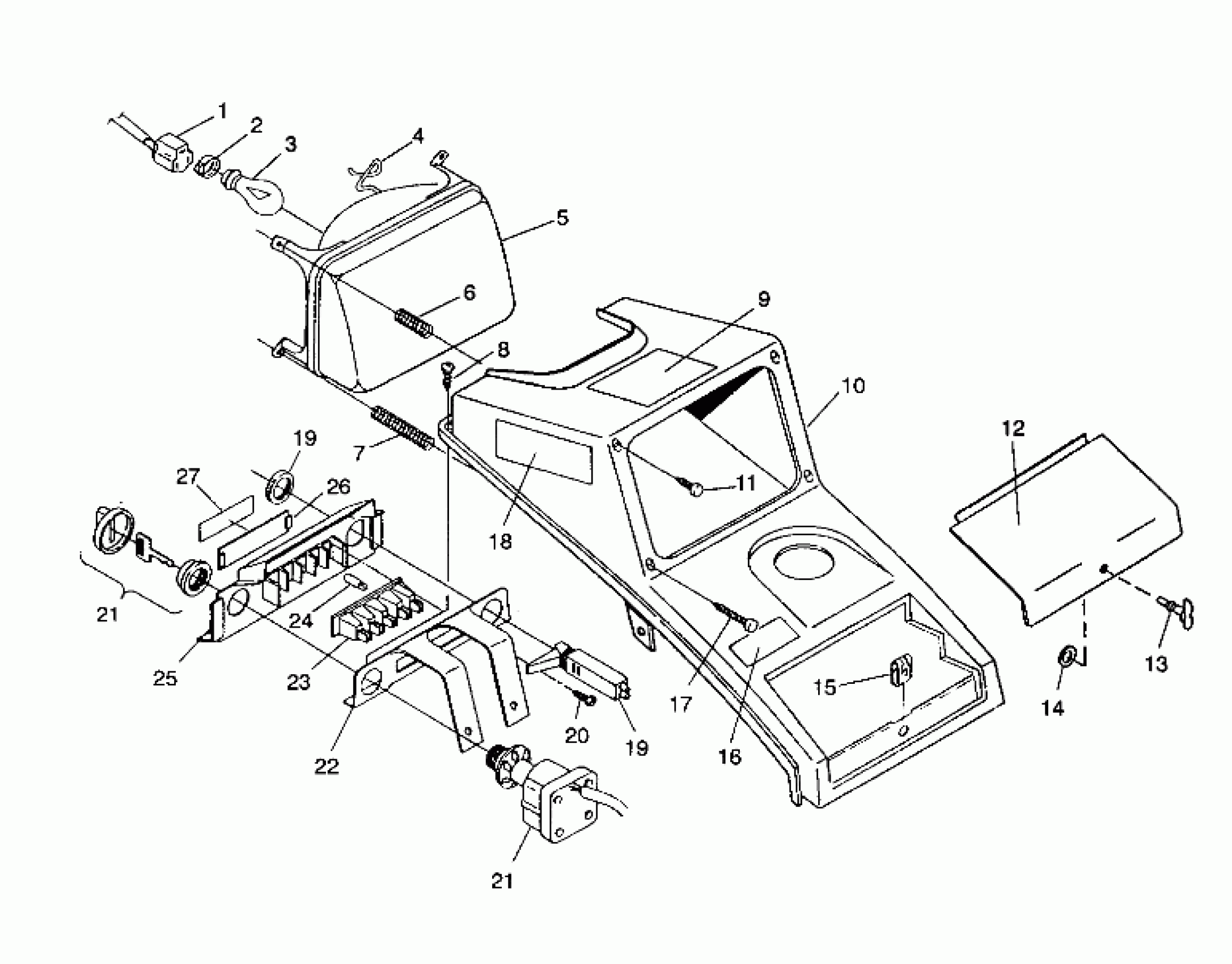

Polaris 350L 2X4 - W937539 HEADLIGHT ASSEMBLY 2X4 350L W937539 (4924032403009A) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460428

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

HEADLIGHT ASM.

4032038

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SPRING,ADJ.

4032041

Unavailable

8

SCREW(10)

7512017

$4.79

9

DECAL,CERTIF.,ATV Substituted by 7075909

7073464

Unavailable

10

COVER,(P.RED),H/L.

5431202-136

Unavailable

11

SCREW, ADJ.(10)

4032003

Unavailable

12

DOOR,ACCESS(P.RED)

5431201-136

Unavailable

13

FASTENER, 1/4 TURN(10)

7670064

$6.23

14

RING,SPLIT RETAINER(10)

7670065

$1.99

15

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

16

LABEL, 'U.S.A.'

7073024

Unavailable

17

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

18

DECAL,'350 L/C'(93-350 2X4)

7073801

Unavailable

19

KIT-CHOKE CONTROL

2200188

$24.27

19

CABLE, CHOKE

7080371

$97.13

19

KIT-CHOKE CONTROL

2200188

$24.27

19

CABLE, CHOKE

7080371

$97.13

20

SCREW, SEM(10)

7511862

$6.99

21

SWITCH, IGNITION

4110140

$137.60

21

SWITCH, IGNITION

4110140

$137.60

22

BRKT, IGN. PANEL

5220965-067

Unavailable

23

STRIP, SOCKET

4032037

$27.19

24

BULB

4030042

Unavailable

25

PANEL, IGNITION

5430995

Unavailable

26

LENS ASM,PILOT LIGHT (Incl. 27)

2652049

Unavailable

27

DECAL, PANEL [No Longer Available] NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

7072528

Unavailable
