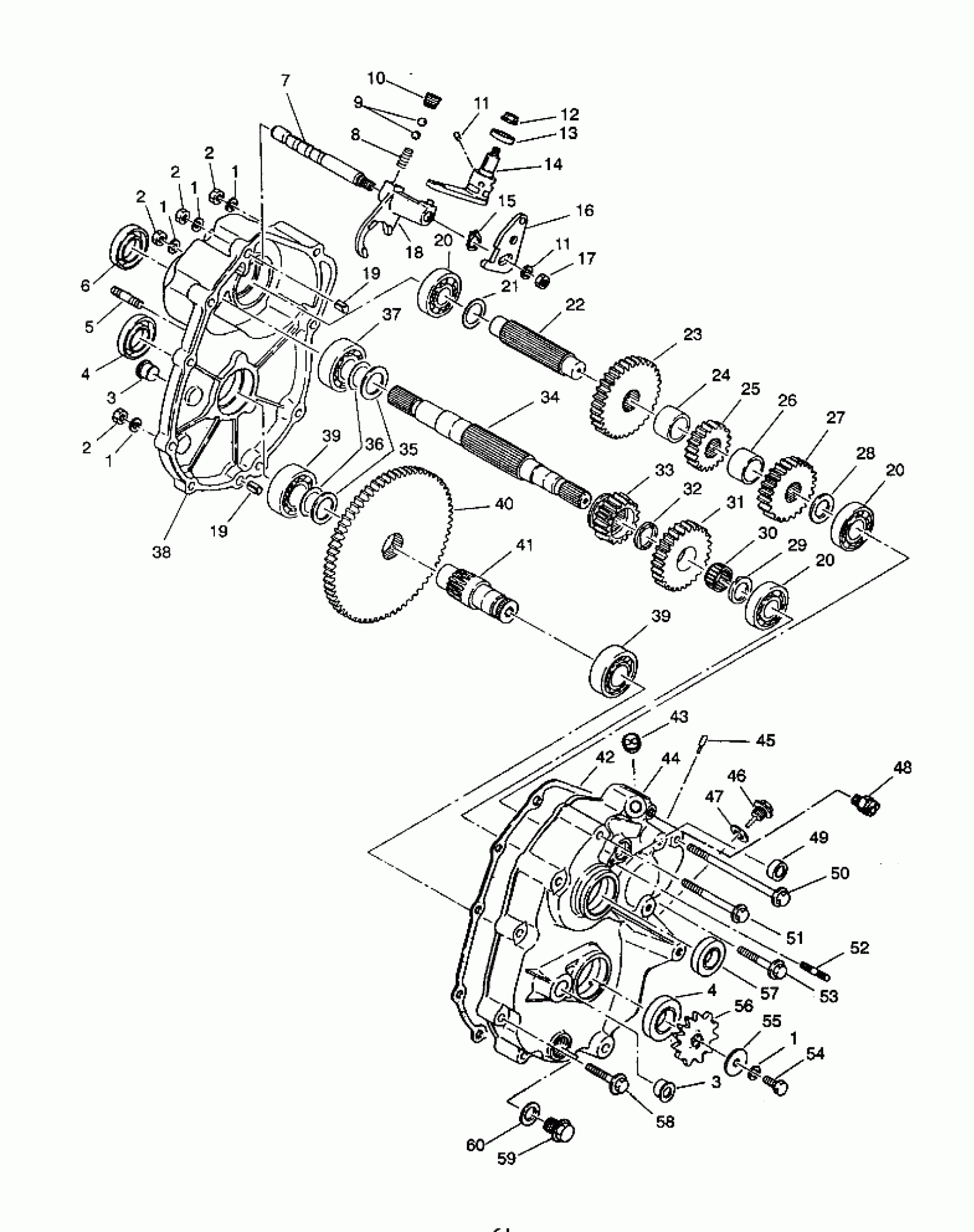

Polaris 350L 2X4 - W937539 GEARCASE ASSEMBLY 2X4 350L W937539 (4924032403027A) Diagram

#

Description
Price

-

GEARCASE,(ME35,P2) (Incl.1-60)

1341081

$1,104.99

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

3

SUPPORT

3231517

Unavailable

3

SUPPORT

3231517

Unavailable

4

SEAL, OIL

3231516

Unavailable

4

SEAL, OIL

3231516

Unavailable

5

STUD

3231608

Unavailable

6

SEAL, OIL

3231507

Unavailable

7

SHAFT, SHIFT

3231614

Unavailable

8

SPRING

3231613

Unavailable

9

BALL, STEEL

3231502

Unavailable

11

PIN

3231607

Unavailable

11

PIN

3231607

Unavailable

12

NUT, LOCK

3231555

Unavailable

13

SEAL, OIL

3231521

Unavailable

14

SHAFT, SELECT

3231616

Unavailable

15

C RING

3231618

Unavailable

16

LEVER, LOCKING

3231619

Unavailable

17

NUT(10)

3231620

Unavailable

18

SHIFTER

3231612

Unavailable

19

PIPE, KNOCK

3231543

$1.41

19

PIPE, KNOCK

3231543

$1.41

20

BEARING

3231511

Unavailable

20

BEARING

3231511

Unavailable

20

BEARING

3231511

Unavailable

21

SHIM 20, 0.3

3231564

Unavailable

21

SHIM 20, 0.1

3231565

Unavailable

22

SHAFT

3231512

$34.70

23

GEAR

3231514

Unavailable

24

COLLAR

3231581

$3.60

25

GEAR (18)

3231510

$29.59

26

COLLAR

3231587

Unavailable

27

GEAR

3231529

$55.54

28

Washer

3231513

$4.39

29

WASHER

3231527

Unavailable

30

BEARING,NEEDLE

3231526

Unavailable

31

GEAR

3231524

$57.14

32

WASHER

3231525

Unavailable

33

GEAR (18)

3231585

Unavailable

34

SHAFT, INPUT

3231580

Unavailable

35

WASHER

3231505

$3.40

36

SHIM 25, 0.3

3231562

Unavailable

36

SHIM 25, 0.1

3231563

Unavailable

37

BEARING

3231506

Unavailable

38

CASE, LH

3231594

Unavailable

39

BEARING

3231609

Unavailable

39

BEARING

3231609

Unavailable

40

GEAR (66)

3231582

Unavailable

41

SHAFT, OUTPUT

3231586

Unavailable

42

PACKING

3231553

Unavailable

43

SW,REV./NEUT.INDIC.

4110062

$32.37

44

CASE, RH

3231615

$262.36

45

PIPE,BREATHER

3231548

Unavailable

46

PLUG, OIL

3231561

Unavailable

47

GASKET

3231539

Unavailable

48

SW,REV./NEUT.INDIC.

4110062

$32.37

49

SEAL, OIL

3231621

Unavailable

50

BOLT

3231606

Unavailable

51

BOLT

3231603

Unavailable

52

STUD

3231622

Unavailable

53

BOLT

3231605

Unavailable

54

BOLT

3231536

Unavailable

55

WASHER(10)

3231599

Unavailable

56

SPKT, 12T (Opt.) (Splined)

3221044

$43.99

56

SPKT, 11T (Opt.) (Splined)

3221043

$39.99

56

SPKT,13T,SPLINED (Std.) (Splined)

3221041

$43.99

57

SEAL, OIL

3231528

Unavailable

58

BOLT

3231602

Unavailable

59

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

60

GASKET

3231592

Unavailable
