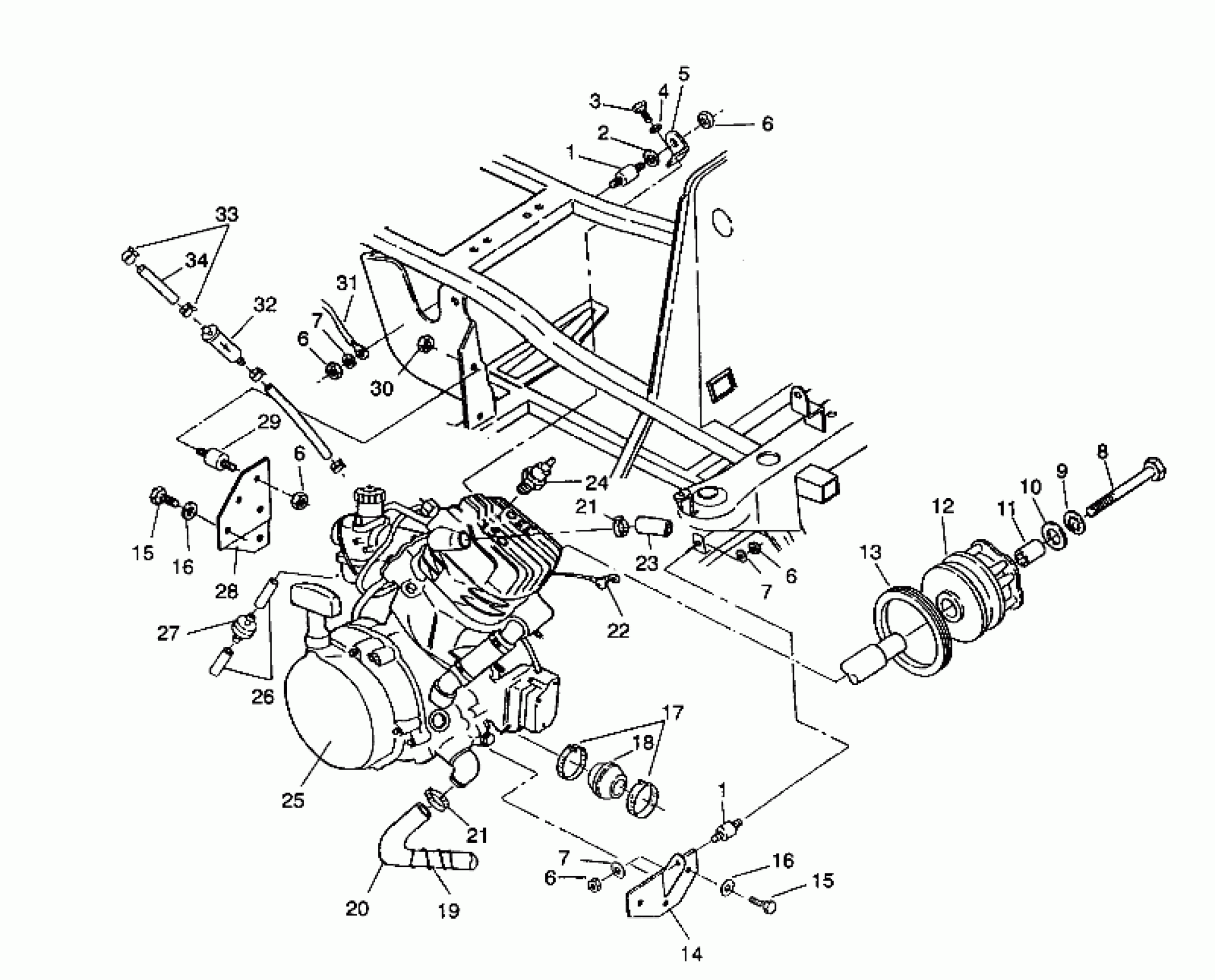

Polaris 350L 2X4 - W937539 ENGINE MOUNTING 2X4 350L W937539 (4924032403004A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT,ENG.TOP

5222415-067

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

6

NUT LOCK(10)

7542403

Unavailable

7

WASHER(10)

7555801

$3.97

7

WASHER(10)

7555801

$3.97

7

WASHER(10)

7555801

$3.97

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

Asm.,Drive Clutch (See pg.20, Ref.1)

----

Unavailable

13

Seal,Cover Case (See pg. 22, Ref.6)

----

Unavailable

14

MOUNT,ENGINE

1040231-067

Unavailable

15

SCREW(10)

7512490

$3.97

15

SCREW(10)

7512490

$3.97

16

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

16

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

17

CLAMP, NARROW BAND(10)

7080511

$4.76

18

BOOT,CLUTCH INTAKE

5410421

$11.32

19

SPRING,HOSE RETAINER

7041079

$4.92

20

HOSE, LOWER ENG.

5410606

Unavailable

21

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

21

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

22

INSULATOR-CABLE

5410346

$7.73

23

HOSE,ENG,UPPER

5410570

$48.56

24

SPARKPLUG (10)

3070156

$3.97

25

ENG.EC35PL-02 [No Longer Available]

1211466

Unavailable

26

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

27

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

28

MOUNT,REAR,ATV

5222416-067

Unavailable

29

MOUNT, MOTOR

3110028

Unavailable

30

NUT LOCK(10)

7542411

$3.17

31

CABLE,GROUND/ENG.

4010067

Unavailable

32

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

33

CLAMP-HOSE,(10)

7080236

$1.59

34

GAS LINE,(GOODYEAR) [Cannot Purchase as Assembly]

8450042

Unavailable
