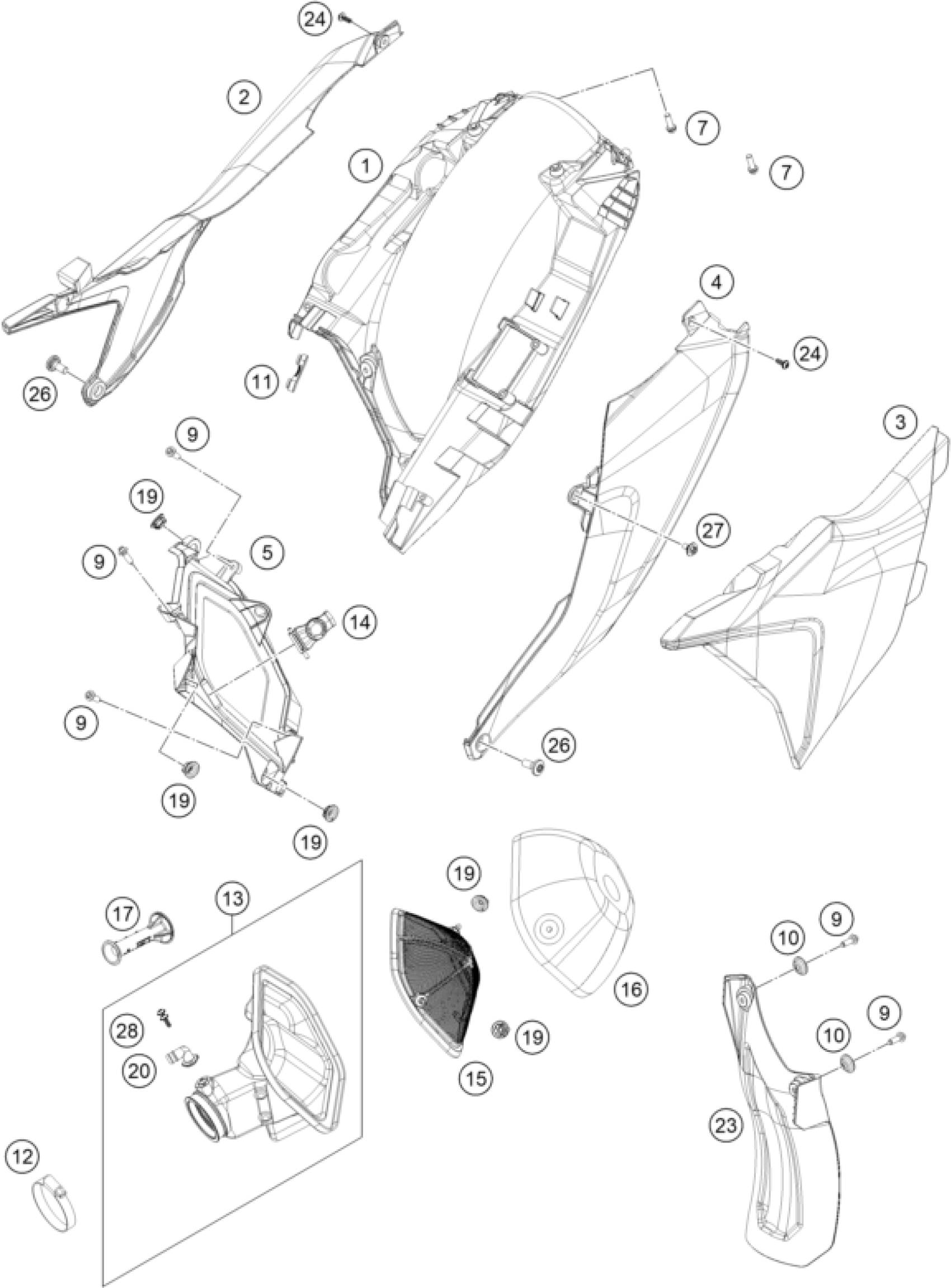

KTM 350 XW-F 2024 AIR FILTER Diagram

#

Description
Price

1

Air filter box, bottom part

A46006101000AB

$43.28

2

Air filter panel

A46006004000AB

$29.74

3

Air filter box cover

A46006003000ABB

$72.17

4

Side fairing

A46006005000AB

$29.74

5

Air filter box front part

A46006001010AB

$16.99

7

HH collar screw M6x20 TX30

0025060206

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Chain slider bushing

77304066150

$1.49

11

exhaust spacer

79105098000

$5.51

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

Suction Cuff p.a.

A46006226133

$244.77

14

Air filter holding bracket

A46006017000

$9.34

15

Air filter support

A46006016000

$15.89

16

Air filter

A46006015000

$31.27

19

quick release rubber grommet

47106003160

$4.11

20

Bleeder flange air filter box

A49006026050

$10.28

23

Splash protection

A46004050000

$11.64

24

EJOT PT screw K50x14

0081050141

$1.49

26

Special screw M8X18 TORX45 SL

79003003000

$3.08

27

special screw M6x12x3

83008000012

$3.08

28

EJOT PT screw K50x12

0081050121

$2.05

17

Air restrictor

A49006012150

Unavailable
