FRONT FORK DISASSEMBLED

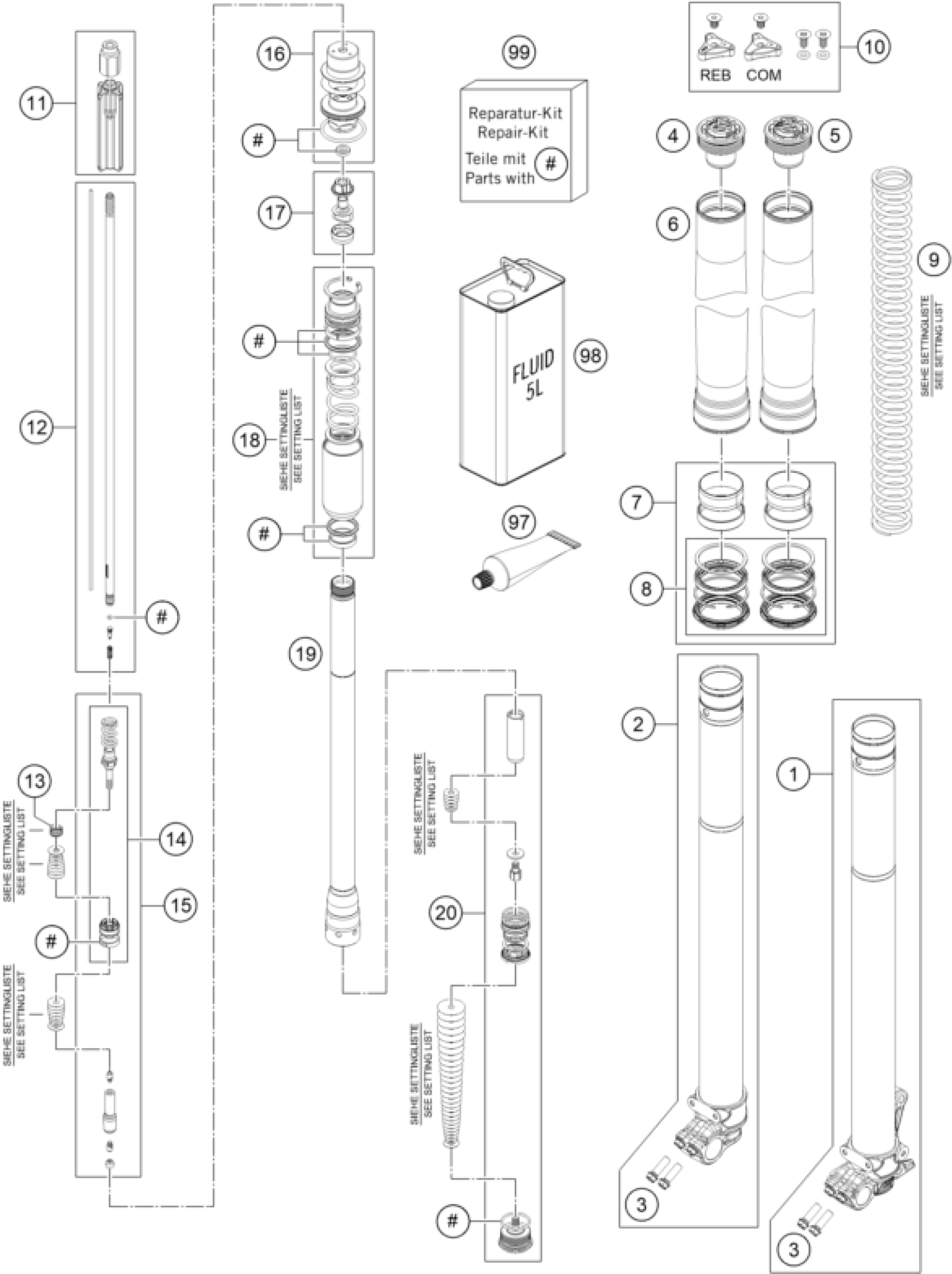

KTM 350 XCF-W SIX DAYS 2016 FRONT FORK DISASSEMBLED Diagram
#
Description
Price
11
SPRING GUIDE CPL.
48601035S
$14.39
1
AXLE CLAMP L/S WITH INNER TUBE
48601326S1
$408.27
2
AXLE CLAMP R/S WITH INNER TUBE
48601327S1
$379.05
3
HH collar screw M8x25
0025080256
$2.05
4
Screw cap M51x1,5 Zugsture cpl
48601050E
$62.82
5
Screw cap M51x1,5 compression
48601116E
$62.82
6
Fork outer tube 49,13x577 dt54
48600736
$462.35
7
Fork repair kit 48mm offroad
R14063
$160.00
8
GASKET KIT CPL.
R14040
$66.75
9
SPRING 4,0N/MM SET D=4,9MM
91410100S
Unavailable
9
SPRING 4,2N/MM SET D=4,9MM
91410101S
Unavailable
9
SPRING 4,4N/MM SET D=4,9MM
91410102S
Unavailable
9
FORK SPRING L= 470 4,6 N/MM SE
91410103S
Unavailable
9
SPRING 4,8N/MM SET D=4,9MM
91410104S
Unavailable
10
SCREW CAP SMALL PART KIT
R14033
$6.82
12
PISTON ROD CPL.
48601343S
$105.09
13
Spring (11,4) 0,4-8 valve
48600382
$2.05
14
TAP KIT
R14056
$34.96
15
Tap compression cpl.
48601390S3
$94.99
16
SCREW SLEEVE KIT
R14035
$60.95
17
Check valve d21mm cpl.
48601025S1
$28.88
18
Reservoir 36x85 cpl.
48601315S4
$80.31
19
TUBE L403 + ADAPTER
48601031S1
$111.88
20
Base tap cpl.
48601522S
$57.51
99
O-RING SET 4CS
R24002
$42.49
97
SILICONE GREASE F. DUST STRI
T511
$34.59
98
Fork Fluid Viscosity 4.0 5L
48601166S1
$149.59
