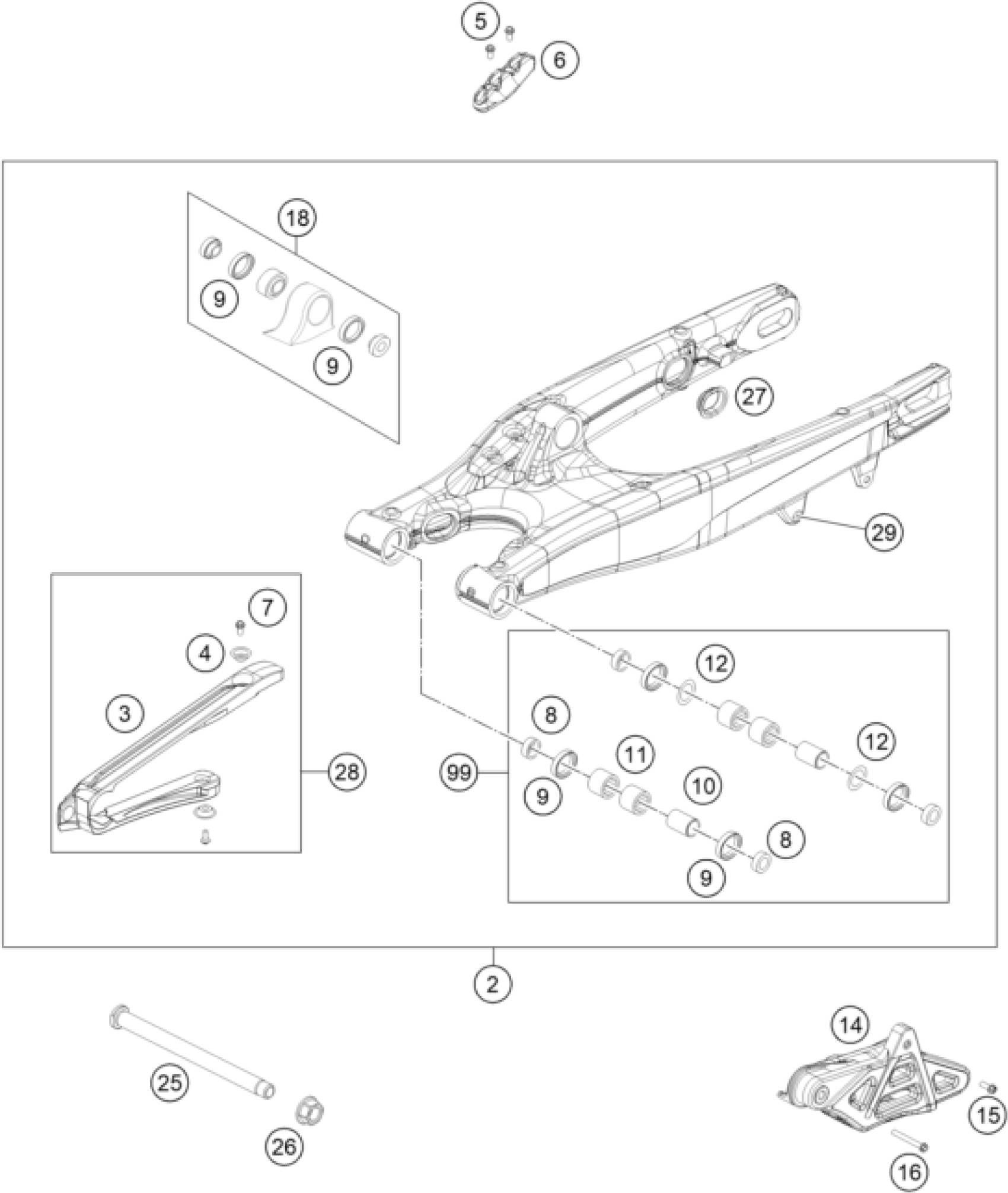

KTM 350 XCF-W SIX DAYS 2014 SWING ARM Diagram

SWING ARM CPL. PDS 2011

51504030044

$665.38

CHAIN SLID.GUARD PDS

51504066000

$22.71

chain slider bushing

77304066050

$1.49

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

Bucket f. shaft seal ring 03

54804034000

$5.23

radial shaft seal 25x32x7

0760253270

$6.63

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

NEEDLE BEARING HK 2216

58033097000

$14.02

STOP DISK 22,2X31,7X1

54603036000

$3.08

CHAIN GUIDE EXC ORANGE

7810407010004

$64.59

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

HH collar screw M6x50 TX30

0025060506

$3.08

PIVOT BEARING+BUSH. PDS '11

50304090144

$64.69

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

Nut with flange M16X1,5 WS=19

54804038000

$2.05

Locking cap swingarm

77204041000

$4.11

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable
