REAR WHEEL

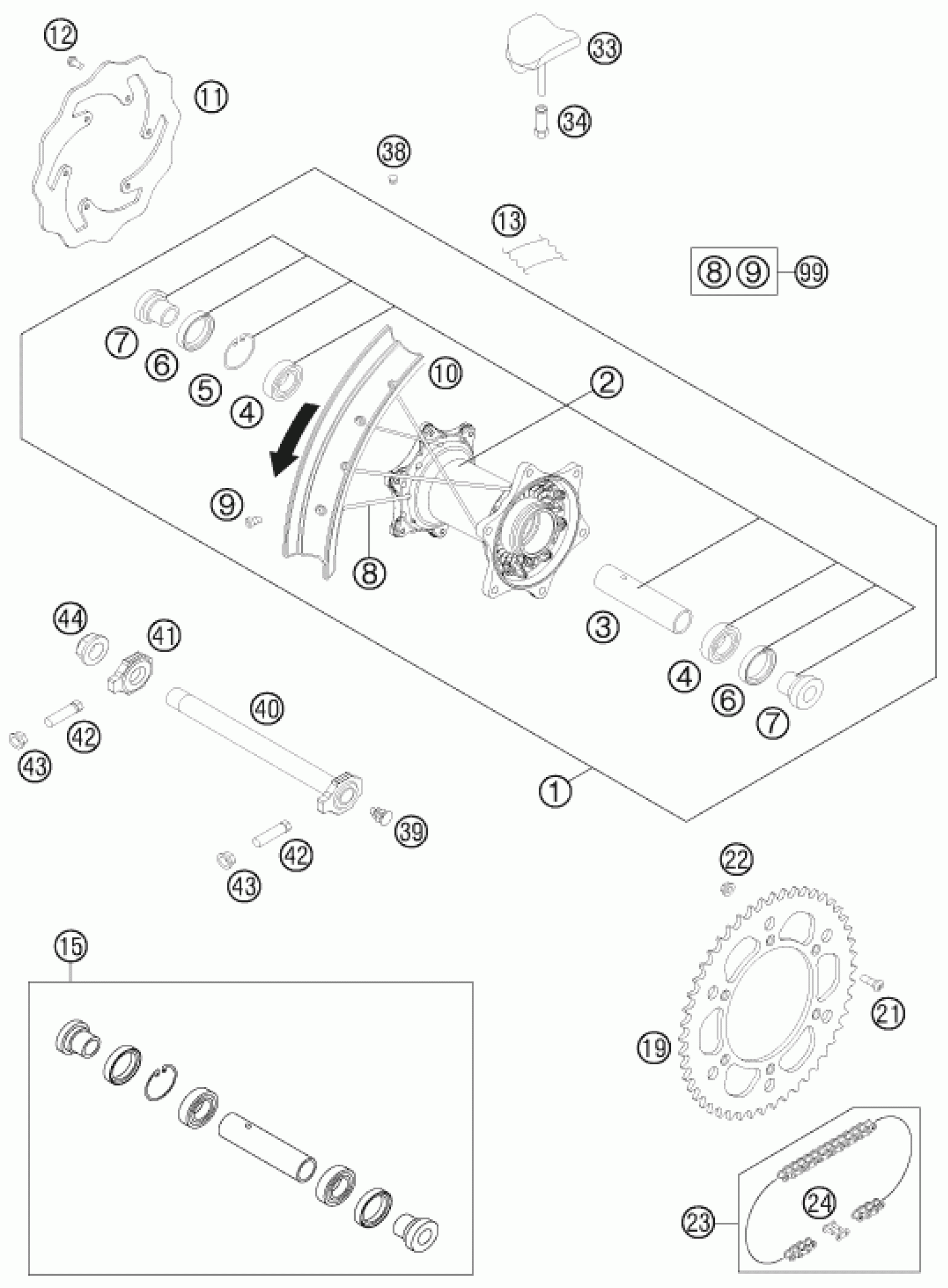

KTM 350 XCF-W SIX DAYS 2014 REAR WHEEL Diagram
#
1
RE.WHEEL CPL.2,15X18''BLK.SD 1
7811000114430
$735.74
2
REAR WHEEL HUB CPL.
78010010144
$313.68
3
BEARING DISTANCE TUBE 121,5MM
77710011000
$22.34
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB 08
78010016000
$32.90
8
SPOKE M4,5X193- 18'' BLACK 12
7711007119330
$5.23
9
Spoke nipple M4.5 AL
77109072000
$3.08
10
RIM REAR 2,15X18'' BLACK
7811007010030
$243.65
11
REAR BRAKE DISK
78010960000
$159.79
12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$2.05
13
Tube protector 18" and 19"
50310073200
$13.27
15
REAR WHEEL REP. KIT
78010015000
Unavailable
19
REAR SPROCKET ORANGE 38-T
5841005103804
Unavailable
19
REAR SPROCKET ORANGE 40-T
5841005104004
Unavailable
19
REAR SPROCKET ORANGE 42-T
5841005104204
Unavailable
19
REAR SPROCKET ORANGE 44-T
5841005104404
Unavailable
19
REAR SPROCKET ORANGE 48-T
5841005104804
Unavailable
19
REAR SPROCKET ORANGE 49-T
5841005104904
Unavailable
19
REAR SPROCKET ORANGE 50-T
5841005105004
$91.79
19
REAR SPROCKET ORANGE 51-T
5841005105104
Unavailable
21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
$3.08
22
Hex. nut DIN EN 1661 M8 WS13
06923080003
$2.05
23
CHAIN DID 118 LINKS
78010167118
$125.66
19
REAR SPROCKET ORANGE 52-T
5841005105204
Unavailable
24
CONNECTING LINK F. 78010167118
78010166000
$13.27
33
RIM LOCK 2,15''
78110090000
$20.56
34
NUT FOR WHEEL HOLDER
77110090050
$5.23
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
Unavailable
40
Thru axle rear wheel cmpl. 07
77310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
screw M10x1.25x50 WS10
50304040100
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
99
SPOKE KIT REAR 18'' BLACK
00050000958
Unavailable
