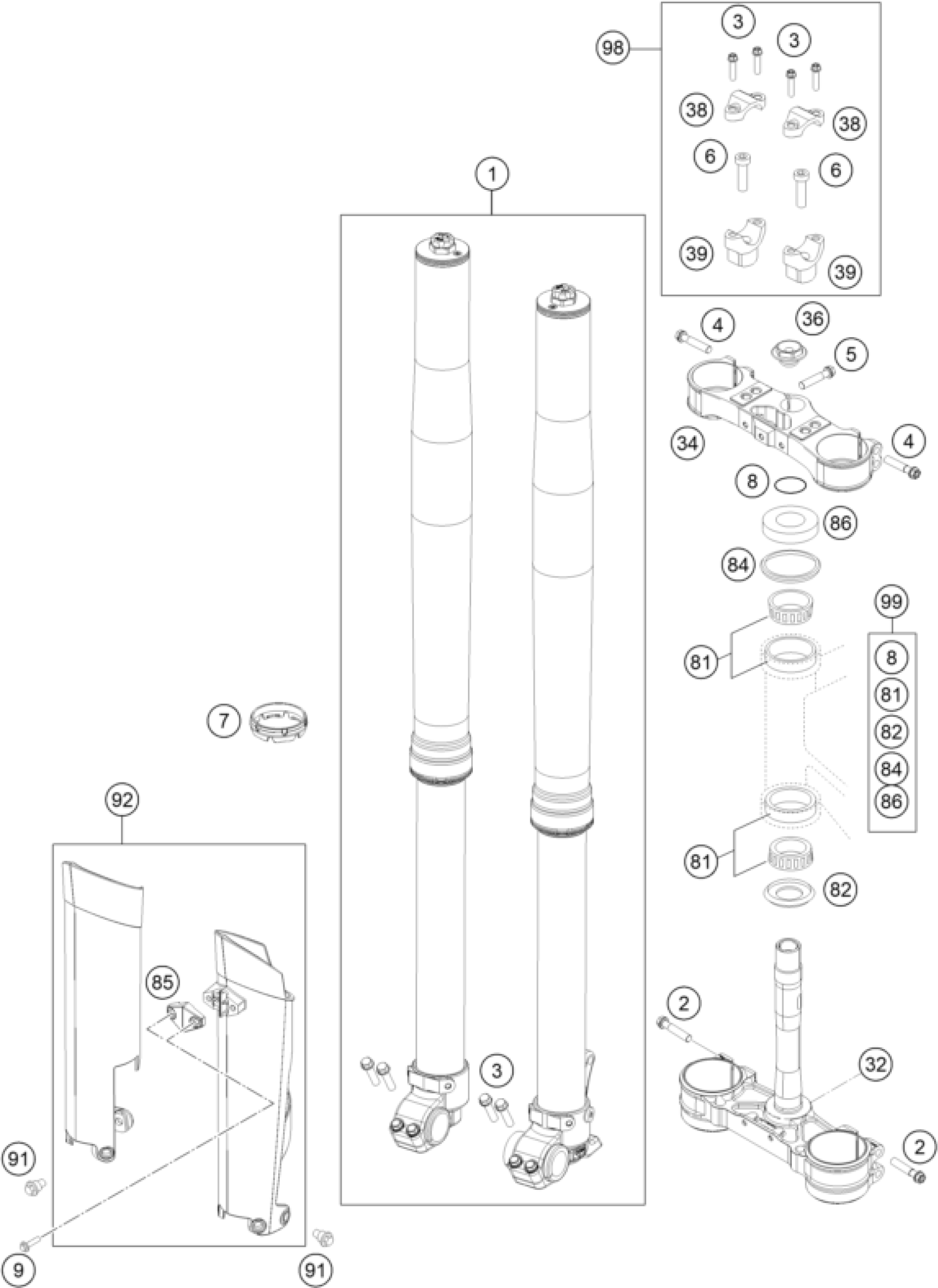

KTM 350 XCF-W SIX DAYS 2014 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK 250/300 2014

24187N6701

$2,406.46

2

HH collar screw M8x50 TX40

0025080506

$3.08

3

HH collar screw M8x25

0025080256

$2.05

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

32

BOTTOM TRIPLE CLAMP CPL.

7770113202004

$373.24

34

TOP TRIPLE CLAMP X=20MM ORANGE

7720103402004

$218.88

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

85

CLAMP F. SPEED. CABLE D=6MM 08

7800108500028

$5.23

92

FORK PROTECT. L/S+R/S WHITE

7800109420028

$30.94

98

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

7

Fork protection ring 62,1mm

48600698

$9.34
