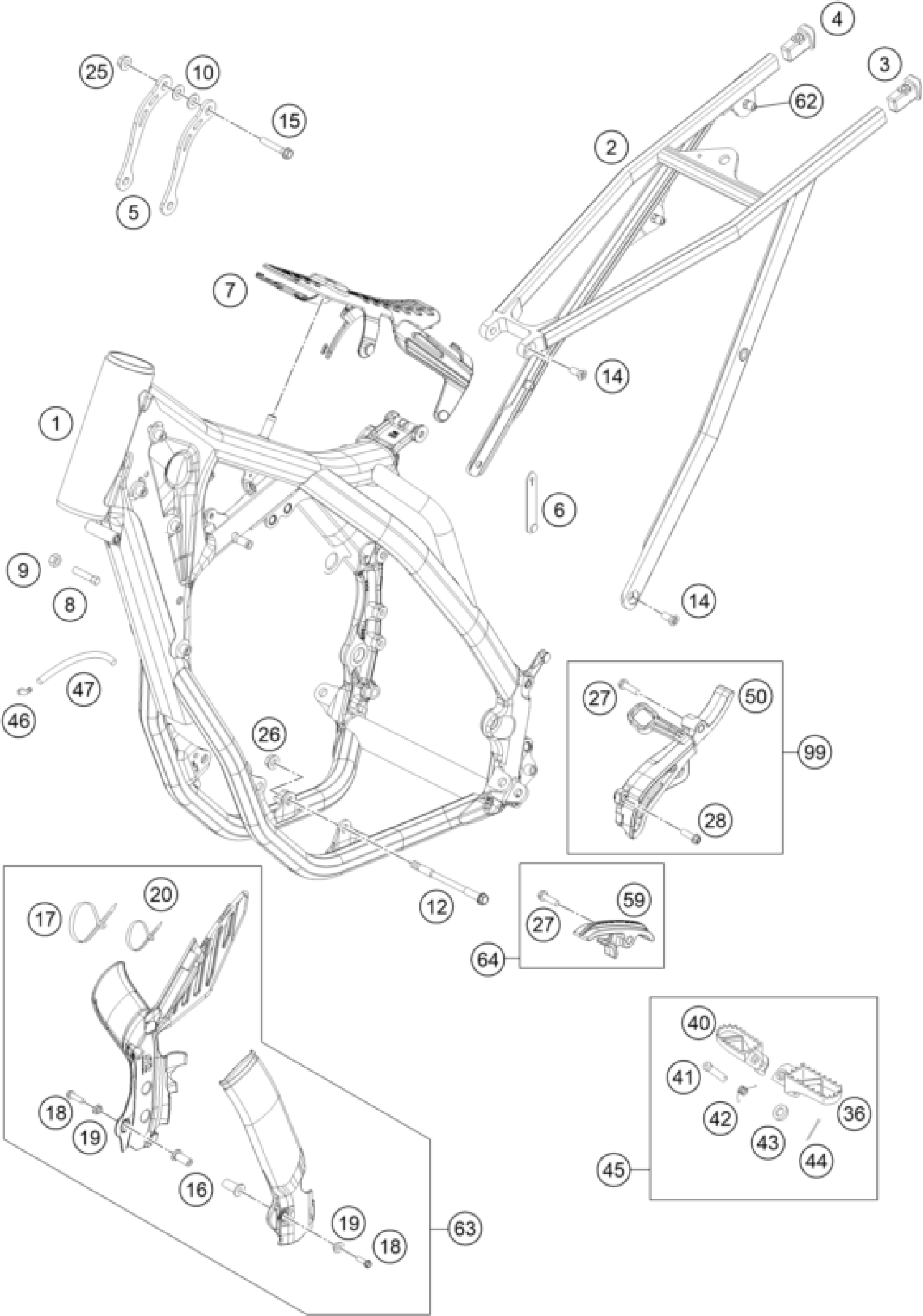

KTM 350 XCF-W SIX DAYS 2014 FRAME Diagram

#

Description
Price

1

FRAME ''775N2'' ORANGE

7750310100004

$1,382.27

2

SUB FRAME SX

77203002000

$391.48

3

SUB FRAME APPLICATION LEFT

78103002010

$22.43

4

SUB FRAME APPLICATION RIGHT

78103002020

$20.37

5

ENGINE BRACE 14

77503113000

$7.00

6

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

7

TANK REST RUBBER

77207012000

$9.44

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

10

WASHER 8,5X18X1 INOX

77003013050

$3.08

12

engine brac.scr. M10x115

77203014000

$8.97

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

15

HH COLLAR SCREW M8X44 WS13

56530079000S

$3.08

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

17

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

19

Bush f. frame protection 03

54803092060

$4.11

25

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

28

HH collar screw M6x40 TX30

0025060406

$3.08

36

FOOTREST L/S 08

78003040050

$43.66

40

FOOTREST R/S 08

78003041050

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTREST L/S + R/S CPL. 09

78003040033

$116.02

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER 350 SX-F

77203096000

$15.61

59

CHAIN SLIDER LOWER PART CPL.

77203053000

$9.06

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

63

PLASTIC FRAME PROTECTION SET

77203094000

$51.98

64

CHAIN SLIDING KIT BELOW CPL.11

77203053010

$18.78

99

SPROCKET COVER KIT

77203096010

Unavailable

20

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable
