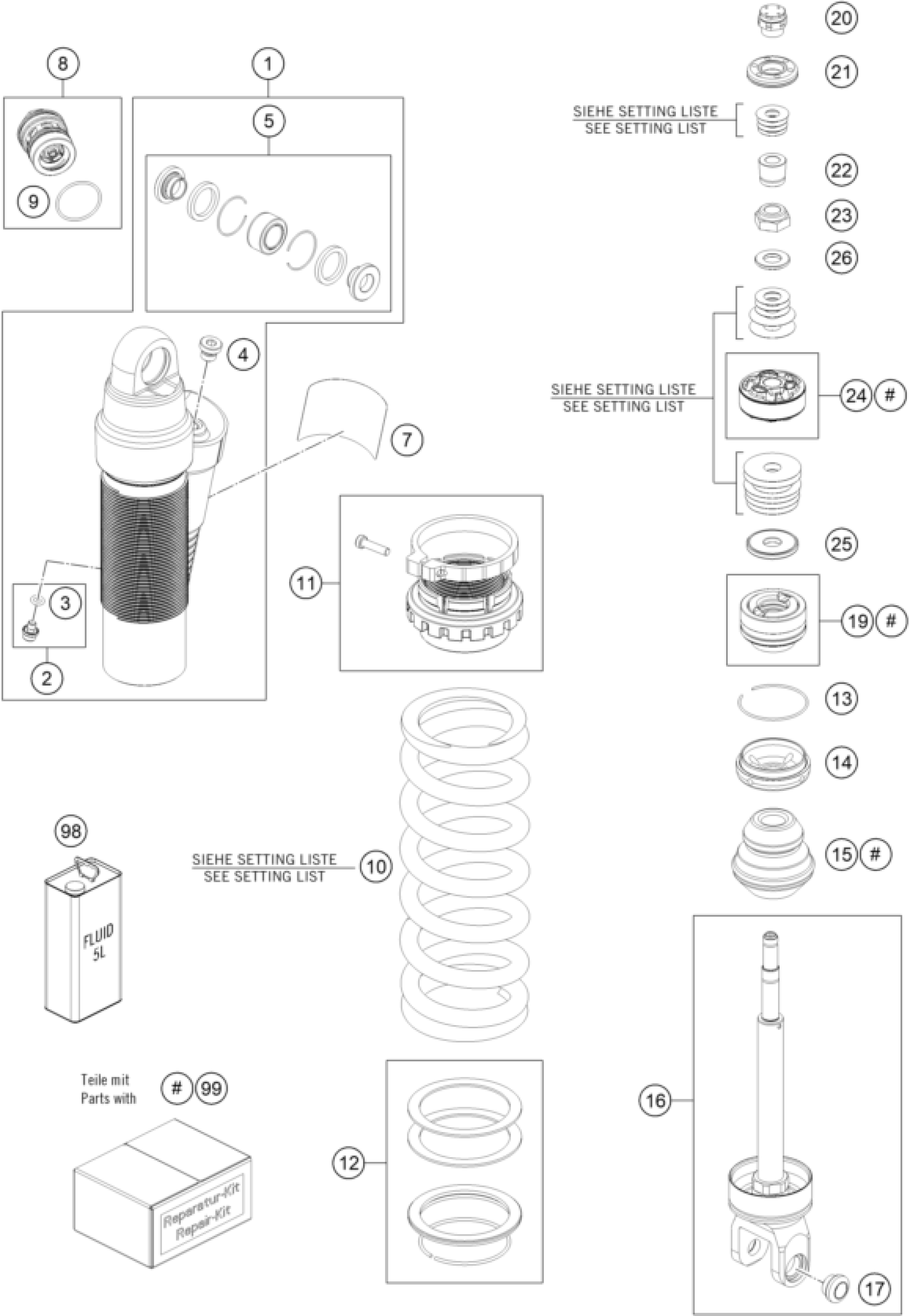

KTM 350 XCF-W 2022 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

shock housing M53x1 h56 cpl.

46181242S4

$398.96

2

PLUG SCREW M5X6 CPL.

36120151S

$4.11

3

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Ball joint bearing kit 12mm

RP10011

$36.93

7

Sticker XPLOR PDS 90x40

52000233

$32.25

8

Compressionadjuster PDS cpl. 2

50181101S35

$101.91

9

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

10

Mainspring (59/61) 54-57-60-22

91010353

Unavailable

10

Mainspring (59/61) 57-60-63-22

91010348

Unavailable

10

Mainspring (59/61) 60-63-66-22

91010349

Unavailable

10

Mainspring (59/61) 63-66-69-22

91010350

Unavailable

10

Mainspring (59/61) 66-69-72-22

91010351

Unavailable

10

Mainspring (59/61) 69-72-76-22

91010352

Unavailable

11

Plastic Spring Retainer D46 cp

46181382S

$32.53

12

SPRING CUP SET PDS 17

RP10005

$32.53

13

Round-wire snap ring 49x1,5

46810010

$3.08

14

Cover 46,12x15 h5,5 red

46181351

$27.67

15

Rubber pad 17x48x55

46181237

$19.35

16

MONOSHOCK LOWER PART CPL.

46181236S1

$345.85

17

Threaded bush M12 d20

50180105

$15.51

19

Sealholder 46x28 cpl.

46180669S

$70.54

20

Nut PDS M10x1 h17,2 WAF19 cpl.

46181659S

$57.40

21

Piston 15,4x35,4x6

46181416

$14.02

22

Bush 10x17x19

S26100000000000

$5.23

23

Piston rod nut M12x1

46810474

$5.23

24

Piston 12x46x20 cpl.

46181328S

$68.25

25

Rebound disc 12x36x4 h0

46181194

$12.89

26

Washer 12x24x2,5

46811258

$24.77

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repairing kit shock absorber P

RP10020

$121.54
