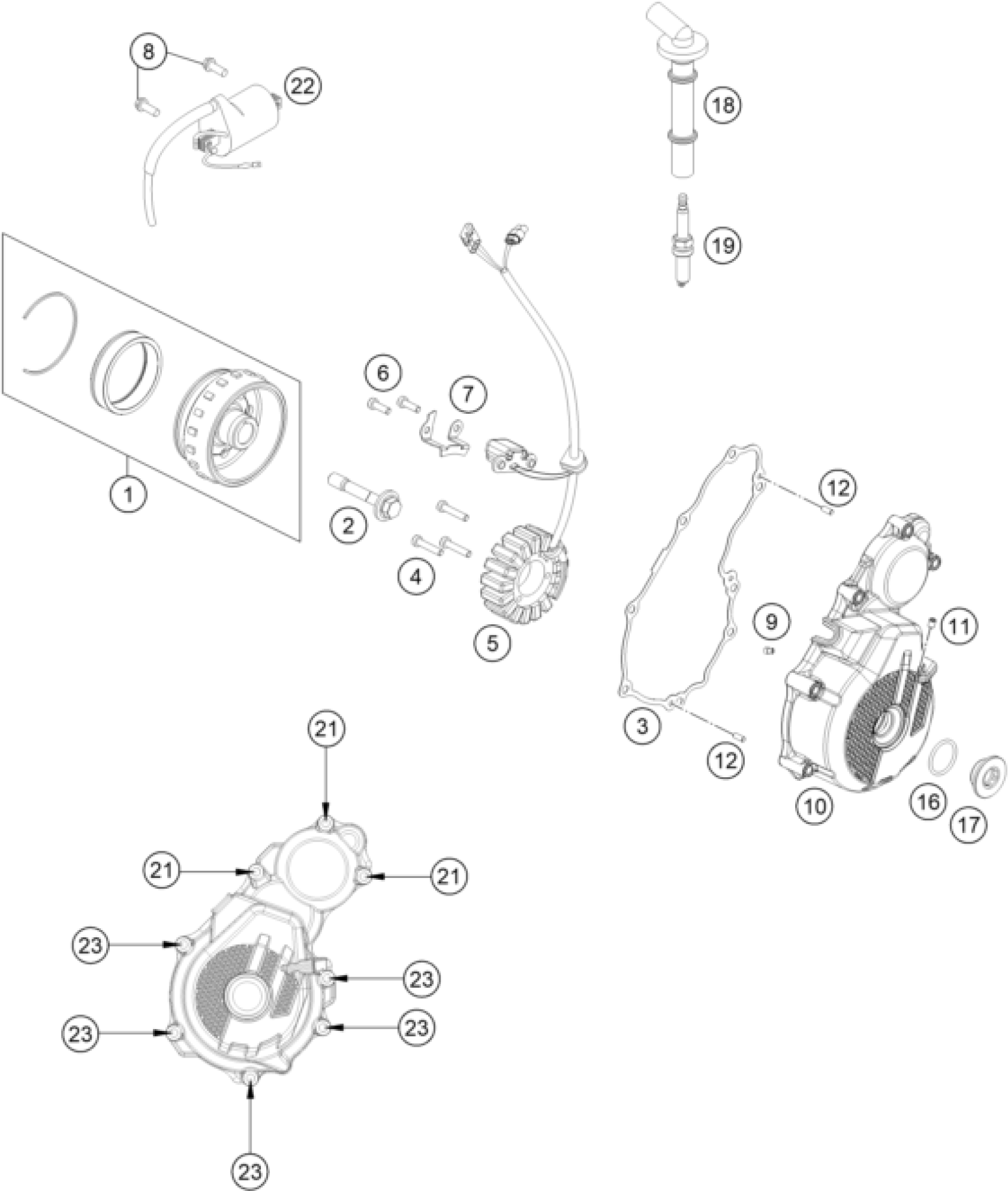

KTM 350 XCF-W 2022 IGNITION SYSTEM Diagram

#

Description
Price

1

ROTOR EFI CPL.

79239105044

$201.39

2

FLYWHEEL SCREW

77339010100

$5.60

3

IGNITION COVER GASKET

79230040000

$17.38

4

Cap head screw DIN 6912 - M5x3

0012050303S

$1.49

5

Stator

79239104100

$226.73

6

Cap head screw DIN912 - M5x16

0912050163S

$1.49

7

CABLE BRACKET

79230102050

$14.02

8

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

9

OIL JET ''60'' M4

80030058060

$11.87

10

Ignition cover

7923010210015

$141.27

11

THREAD PIN DIN 913 M5X6

0913050063S

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

o-ring 24.00x2.50 Viton

07700240251

$3.08

17

SCREW PLUG M24X1,5

7723000216030

$36.64

18

Resistor Plug Cover

79139090000

$58.99

19

spark plug

77839093000

$22.71

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

23

HH collar screw M6x40 TX30

0025060406

$3.08
