FRONT FORK, TRIPLE CLAMP

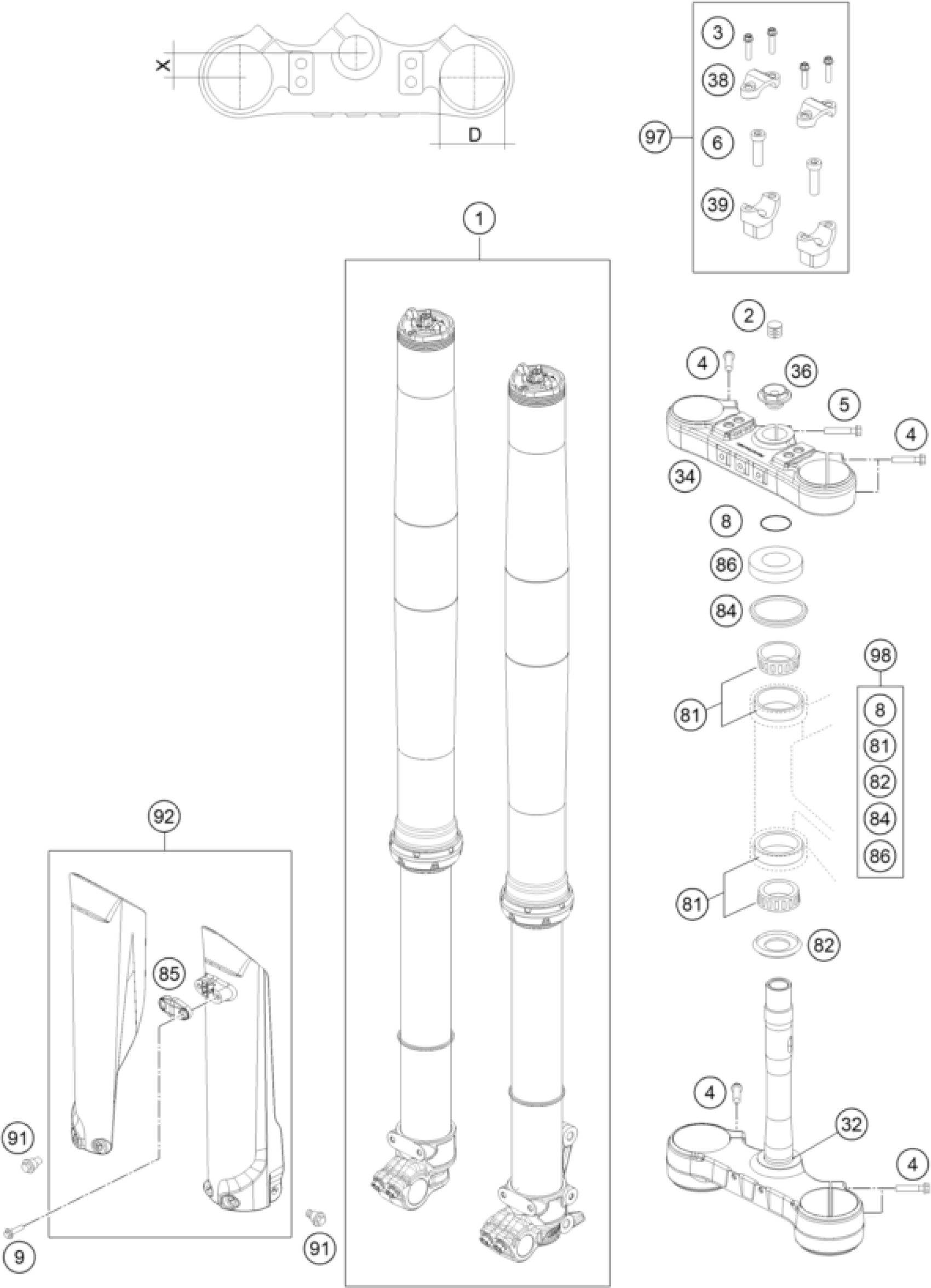

KTM 350 XCF-W 2022 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
Fork KTM 250/350/450/500 EXC-F
0797C168V401000
$2,213.34
3
HH collar screw M8x25
0025080256
$2.05
4
HH collar screw M8x30
0025080306
$3.08
5
HH collar screw M8x35 TX40
0025080356
$4.11
6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
$4.11
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
SCREW F. PLASTIC K60X20AL SW6
0017060206
$3.08
32
BOTTOM TRIPLE CLAMP CPL.
78101132122
$206.07
34
TOP TRIPLE CLAMP X=22MM
78101034022
$148.19
36
AXLESCREW M20X1.5 SW17
70009082000
$9.44
38
HANDLEBAR CLAMP 28MM
77201038000
$25.05
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
39
Handlebar mount D28mm-H37mm
59401039037
$34.12
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
77701084000
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
Clamp for brake line
77701085100EB
$5.23
86
STEERING HEAD COVER
78101086000
$6.07
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
Fork protection kit EXC/XC-W
77701094100EBO
$56.18
97
HANDLEBAR SUPPORT KIT D28/H37
00050000921
Unavailable
98
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
2
PLUG SFL13
55009086000
$2.05
