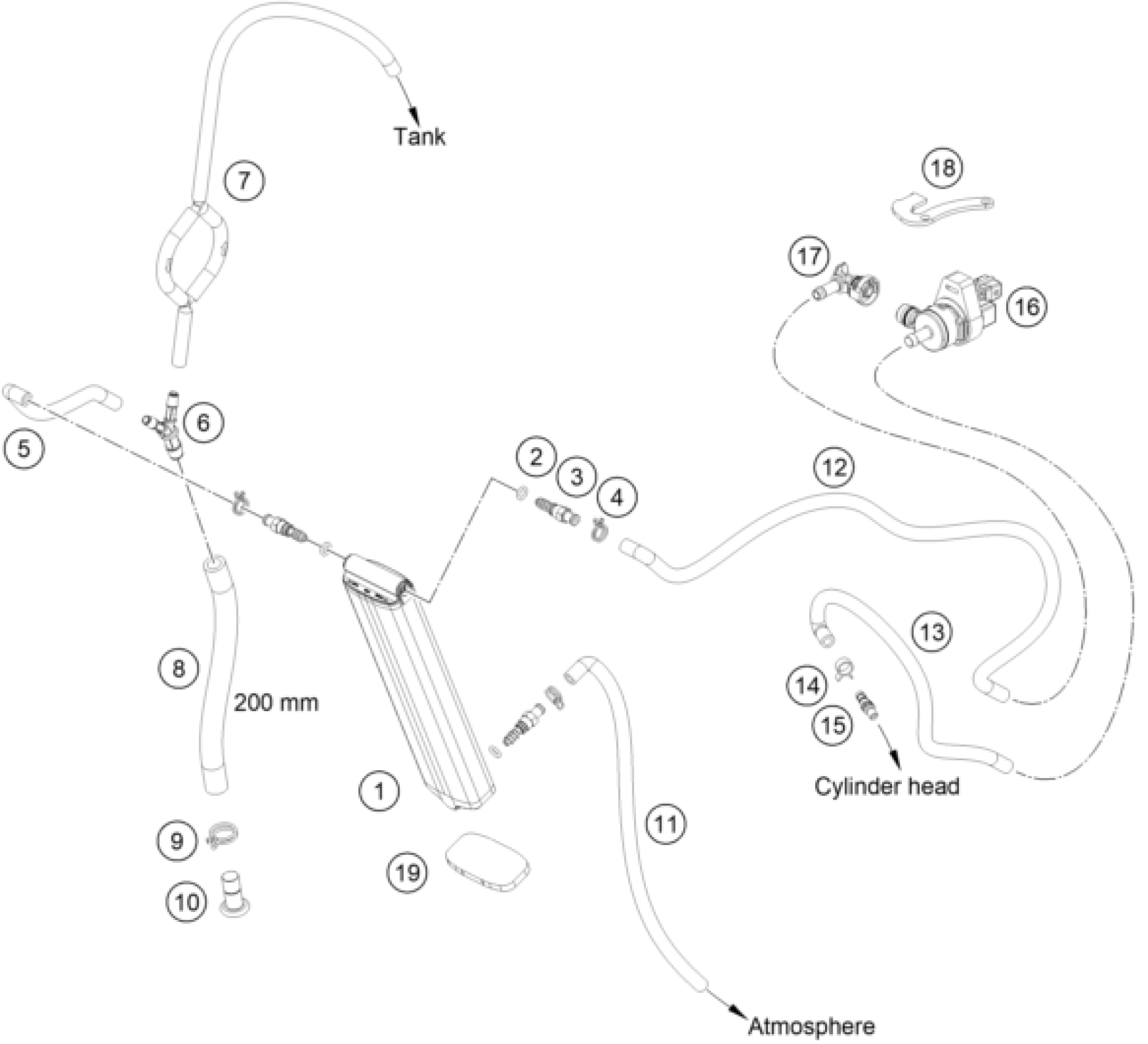

KTM 350 XCF-W 2022 EVAPORATIVE CANISTER Diagram

Activated charcoal filter

79615001100

$48.52

O-RING 6,00X2,00 NBR 70

0770060020

$2.05

Hose connector

79615019100

$8.50

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

PREFORMED HOSE 6X10 ECO

79615021000

$5.23

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

AKF check valves assembly

78115019133

$111.82

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

PLUG D=10

61315026000

$21.87

PREFORMED HOSE 6X10 ECO

79615025000

$8.78

PREFORMED HOSE 6X10 ECO

79615023000

$13.08

PREFORMED HOSE 6X10 ECO

79615024000

$9.06

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

BRACKET AKF-VALVE

79215002000

$12.43

Thermal protection foil

79615001090

$1.96
