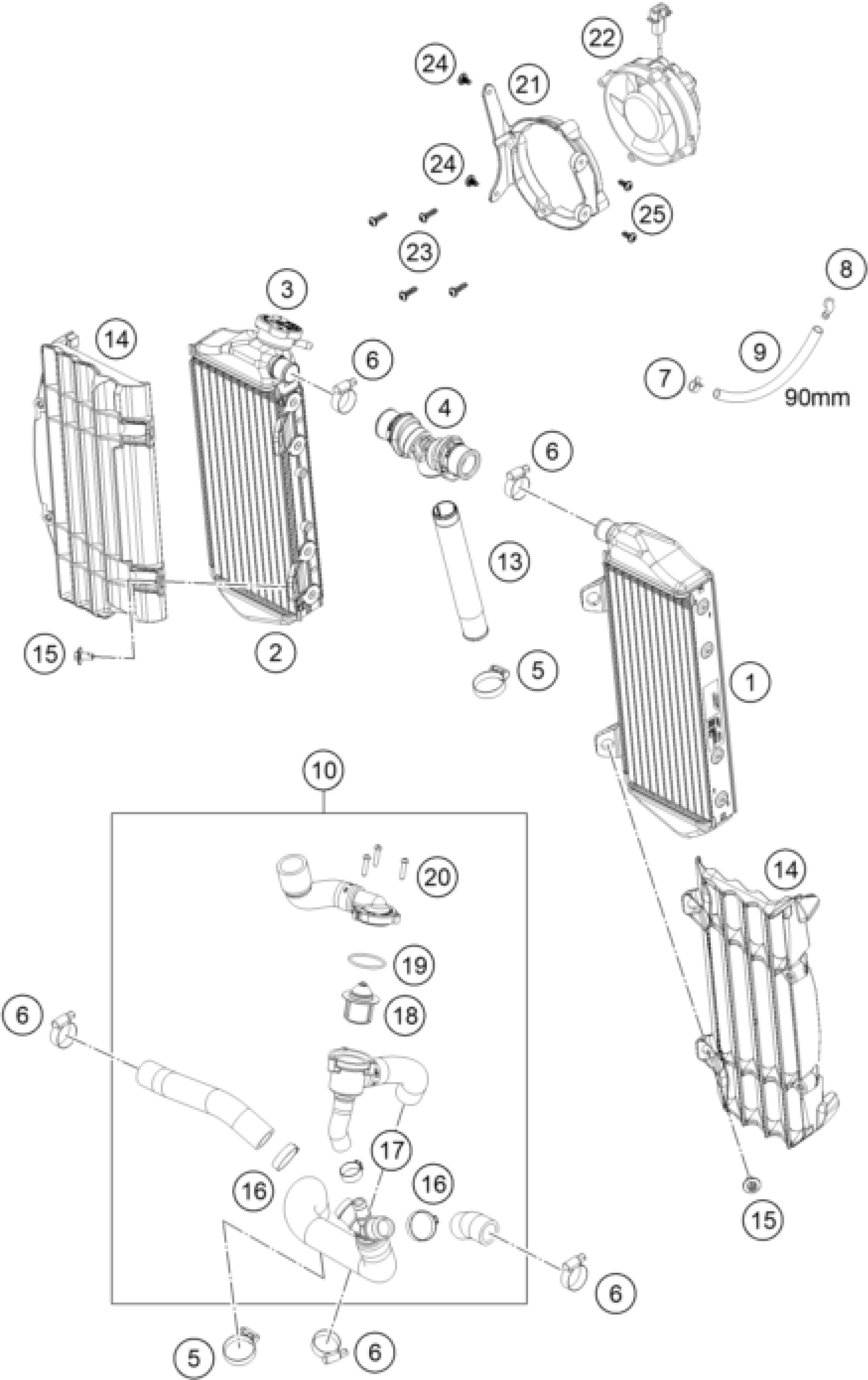

KTM 350 XCF-W 2022 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator, left 19

50535007100

$205.13

2

Radiator right

79535008100

$231.22

3

RADIATOR CAP 1,8 BAR

79035016000

$28.51

4

Y-hose cpl.

79135071044

$40.48

5

Hose clip 20-32

0310000903200

$2.05

6

HOSE CLAMP NORMA 14/24

42013037400

$2.05

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

8

ANGLE PIECE '97

50303089000

$5.23

9

PVC-HOSE 6X9

50335030001

Unavailable

10

preformed hose w. therm

79335026033

$162.12

13

threaded bushing

79135073000

$13.27

14

radiator protector le/ri black

7913503400030

$17.85

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

16

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

$3.08

17

VARIABLE ONE-EAR CLAMP 18,5MM

00050185154

$4.11

18

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

19

O-RING 32,00X2,00

0770320020

$2.05

20

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

21

FAN BRACKET

79635943000

$12.43

22

FAN CPL. 12V LC4 2000

58435041000

$137.53

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

24

EJOT SHEETTRACS SCREW 50X10

0080150100

$1.49

25

EJOT PT screw K50x12

0081050121

$2.05
