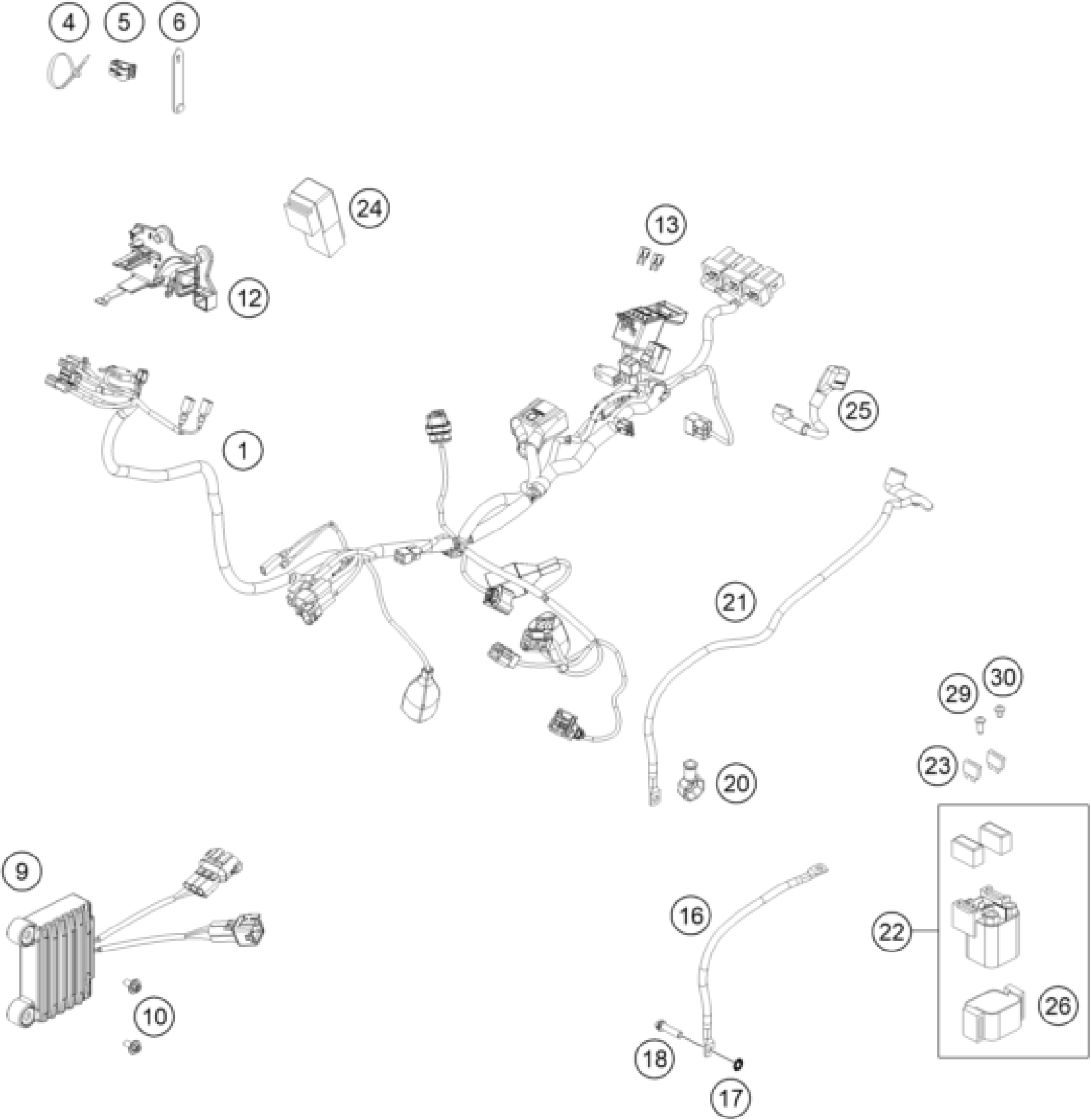

KTM 350 XCF-W 2020 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness XC-W-F

79711275000

$476.75

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

9

VOLTAGE REGULATOR

79611034000

$192.32

10

HH collar screw M6x15 TX30

0024060156

$3.08

12

Connector support

79711083000

$14.87

13

FUSE MINI 5A

75011088005

Unavailable

13

FUSE 10A 07

75011088010

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

HH collar screw M6x25 TX30

0025060256

$3.08

20

Protection cap for starter eng

77240099000

$6.35

21

Starterkabel

25111059000

$20.94

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 20A

58011109120

$1.49

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

Batteriekabel

25111059050

$20.66

26

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

29

Oval head screw AH socket M6x1

0738060167

$1.49

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
