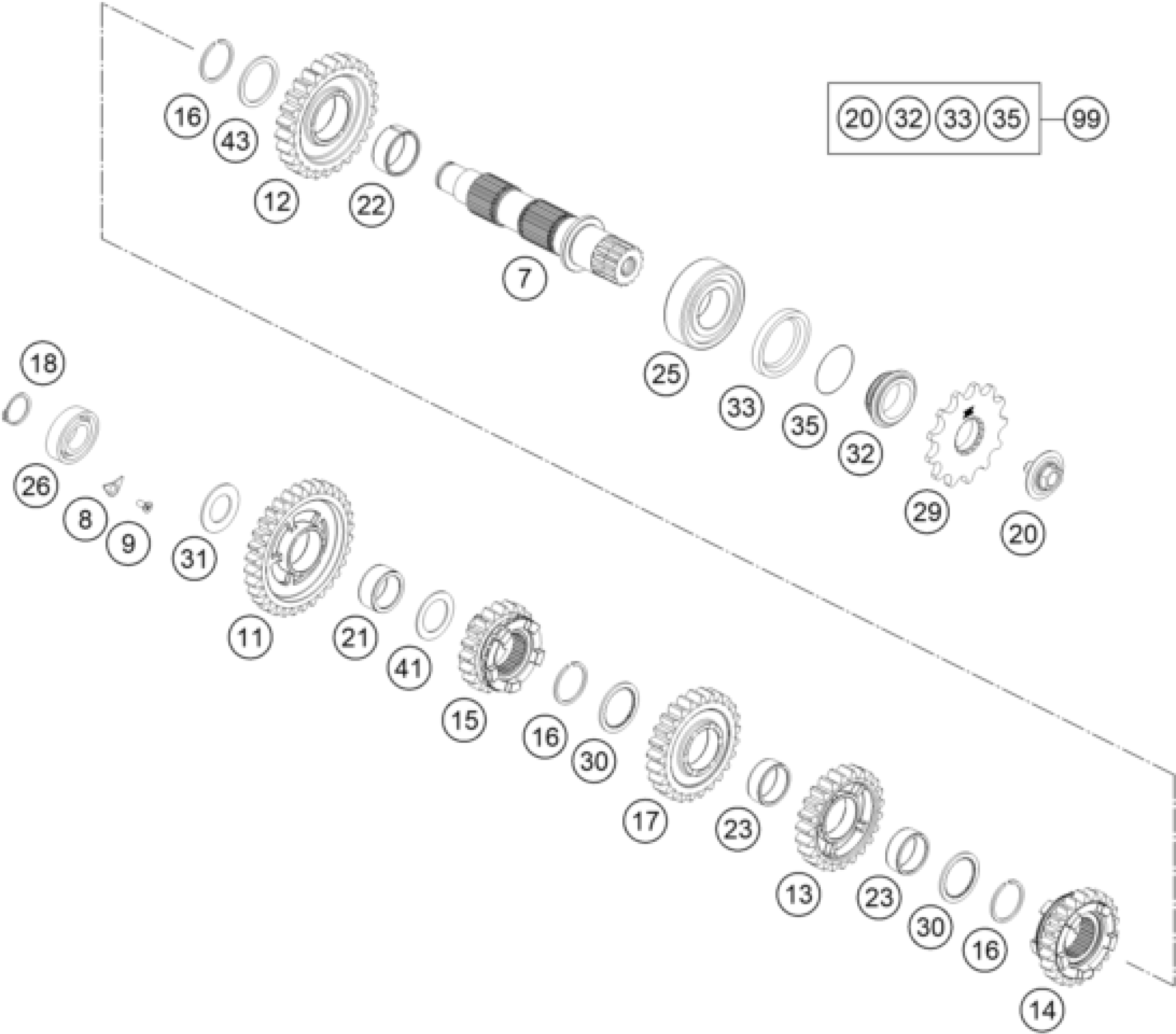

KTM 350 XCF-W 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

Output shaft

79333110000

$176.32

8

RETAINING PLATE F. CS BEARING

75030085000

$1.49

9

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

11

Idler gear, 1st gear, teeth=32

79333311000

$158.85

12

idler gear 2 nd.

79333312000

$154.83

13

idler gear 4 th.

79333314000

$132.39

14

sliding gear 5 th.

79333315000

$131.17

15

sliding gear 6 th.

79333316000

$130.52

16

CIRCLIP WS24

0417024000

$2.05

17

idler gear 3 rd.

79333313000

$133.51

18

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

NEEDLE BEARING K 20X26X12

0405202612

$10.93

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

25

cylindrical roller bearing NJ2

49030023000

$74.42

26

BALL BEARING 6203 JR2 C3

0625062035

$14.48

29

Sprocket 13-t

79233029013

Unavailable

29

ENGINE SPROCKET 14Z

79233129014

$35.33

30

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

31

STOP DISK 17,2X30X1,3

77233020000

$4.11

32

SPACER SLEEVE COUNTER

78133014000

$28.42

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

35

O-RING 25,12X1,78 NBR70

0770020220

$3.08

41

STOP DISC 20,2X30X1

54833080000

$3.08

43

STOP DISC 25X31X1,5

54833044000

$5.23

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
