Description

Price

1

Main shaft, cmpl.

79333101000

$198.77

2

Fixed gear, 2nd gear, teeth=16

79333102000

$44.68

3

Sliding gear, 3rd/4th gear, te

79333103000

$129.49

4

Idler gear, 5th gear, teeth=25

79333105000

$87.23

5

Idler gear, 6th gear, teeth=26

79333306000

$125.38

6

BUSHING

78033001110

$11.40

7

RETAINING PLATE F. CS BEARING

75030085000

$1.49

8

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

10

Groove ball bearing 6205 C4 NT

0625062056

$14.02

11

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

16

CIRCLIP WS24

0417024000

$2.05

19

DISK 20,2X32X1,3

77233015000

$5.23

20

BALL BEARING TM 16004 C4

0625160041

$19.44

22

SPACER SHIM 21X42X0.2

77233088000

$5.79

30

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

43

STOP DISC 25X31X1,5

54833044000

$5.23

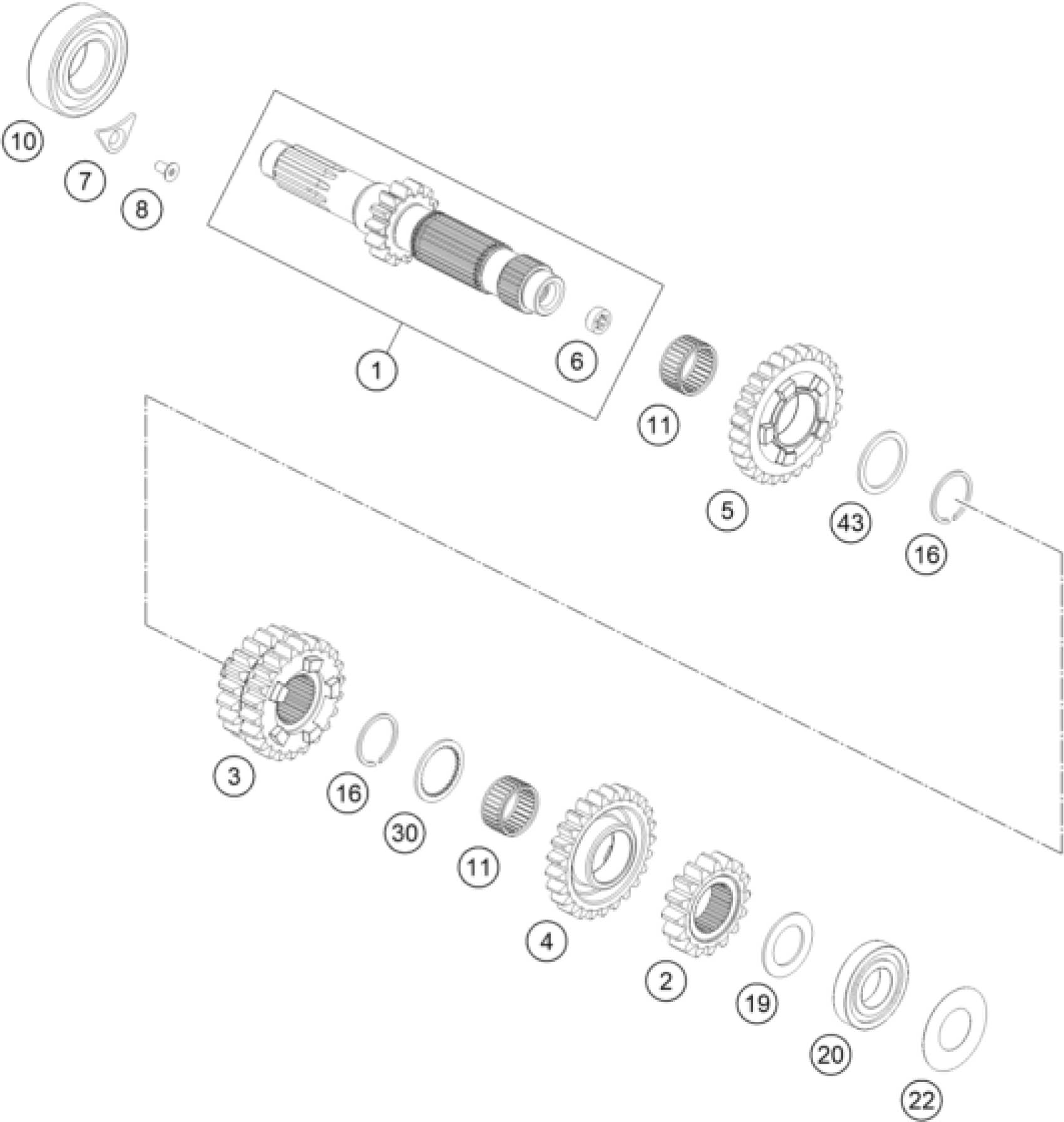

KTM 350 XCF-W 2020 TRANSMISSION I - MAIN SHAFT Diagram

Main shaft, cmpl.

Fixed gear, 2nd gear, teeth=16

Sliding gear, 3rd/4th gear, te

Idler gear, 5th gear, teeth=25

Idler gear, 6th gear, teeth=26

BUSHING

RETAINING PLATE F. CS BEARING

INT. TORX FLAT HEAD M5X12 T25

Groove ball bearing 6205 C4 NT

NEEDLE BEAR. K 22X26X13 TN

CIRCLIP WS24

DISK 20,2X32X1,3

BALL BEARING TM 16004 C4

SPACER SHIM 21X42X0.2

STOP DISC 25X0,8X30X30X7H

STOP DISC 25X31X1,5
