Description

Price

1

ROTOR EFI CPL.

79239105044

$201.39

2

FLYWHEEL SCREW

77339010100

$5.60

3

IGNITION COVER GASKET

79230040000

$17.38

4

AH SCREW DIN0912-M 5X30

0912050303

$1.49

5

STATOR

79239104000

$226.73

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

CABLE BRACKET

79230102050

$14.02

8

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

9

OIL JET ''60'' M4

80030058060

$11.87

10

IGNITION COVER EXC

7923010200015

$141.27

11

THREAD PIN DIN 913 M5X6

0913050063S

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

o-ring 24.00x2.50 Viton

07700240251

$3.08

17

SCREW PLUG M24X1,5

7723000216030

$36.64

18

Resistor Plug Cover

79139090000

$58.99

19

spark plug

77839093000

$22.71

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

23

HH collar screw M6x40 TX30

0025060406

$3.08

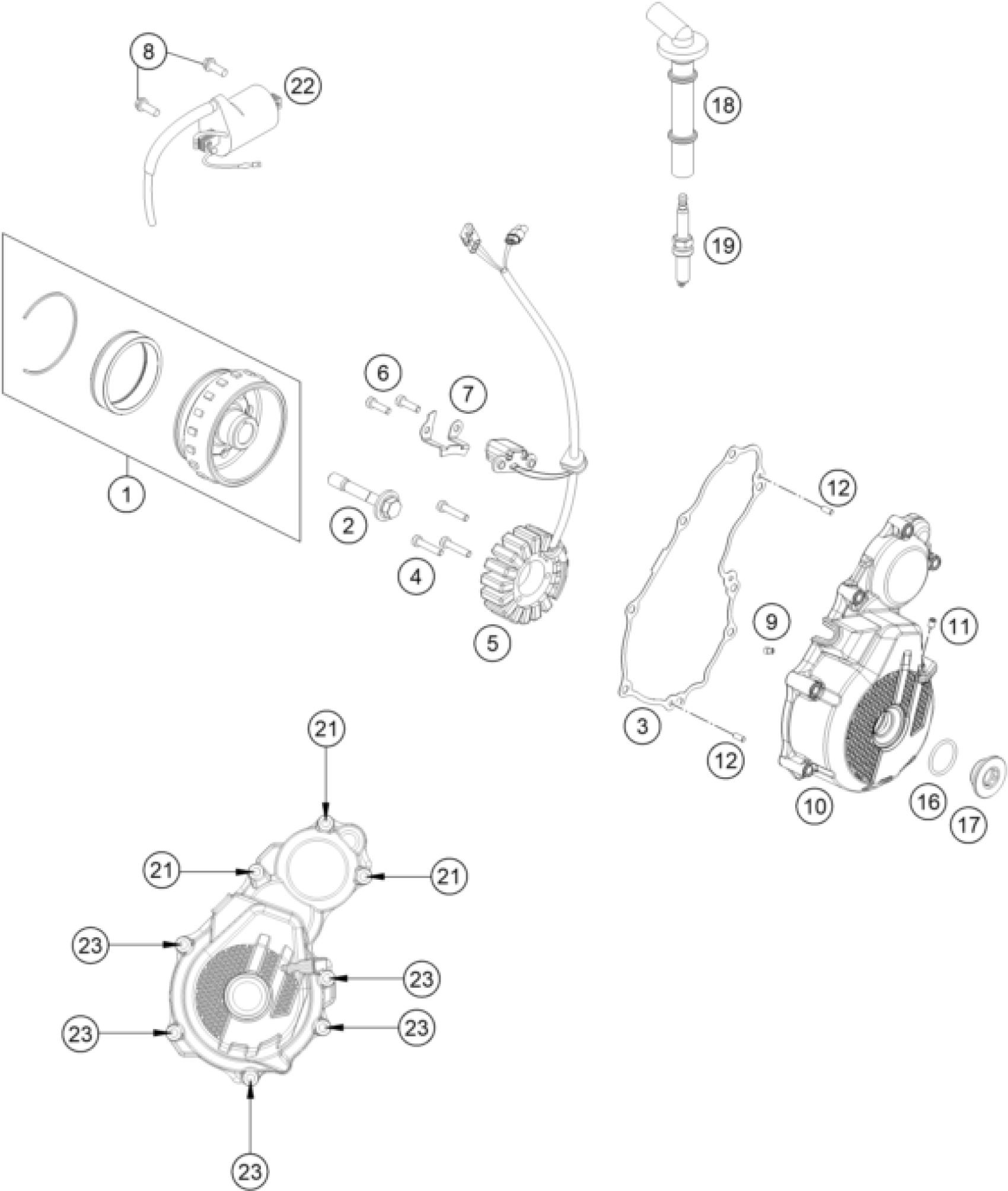

KTM 350 XCF-W 2020 IGNITION SYSTEM Diagram

ROTOR EFI CPL.

FLYWHEEL SCREW

IGNITION COVER GASKET

AH SCREW DIN0912-M 5X30

STATOR

HH collar screw M5x16 TX30

CABLE BRACKET

COLLAR SCREW M6X18 ISA30

OIL JET ''60'' M4

IGNITION COVER EXC

THREAD PIN DIN 913 M5X6

Needle roll.DIN5402 NRB 4X9.8

o-ring 24.00x2.50 Viton

SCREW PLUG M24X1,5

Resistor Plug Cover

spark plug

HH collar screw M6x30 TX30

Ignition coil

HH collar screw M6x40 TX30
