Description

Price

1

HANDLEBAR

7800200100030

$151.84

2

Bar pad cmpl.

77202002144

$22.94

5

Kill switch

50311089200

$37.58

6

STARTER BUTTON GREY 13

78111074000

$42.91

13

THROTTLE CONTROL CASING CPL.

79002010025

$29.16

17

GRIP SET

79002021100

$31.44

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

20

Handguard assembly kit

79602084044

$33.99

21

Handguard

7960218204430

$26.34

30

MASTER CYLINDER CPL.

54802030144

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

46

CLAMP CPL. 06

54802005100

$25.80

63

CLUTCH PIPE

79232063000

$112.38

92

Throttle cable wire

79102091000

$83.30

7

Map switch

79039074100

$166.59

8

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

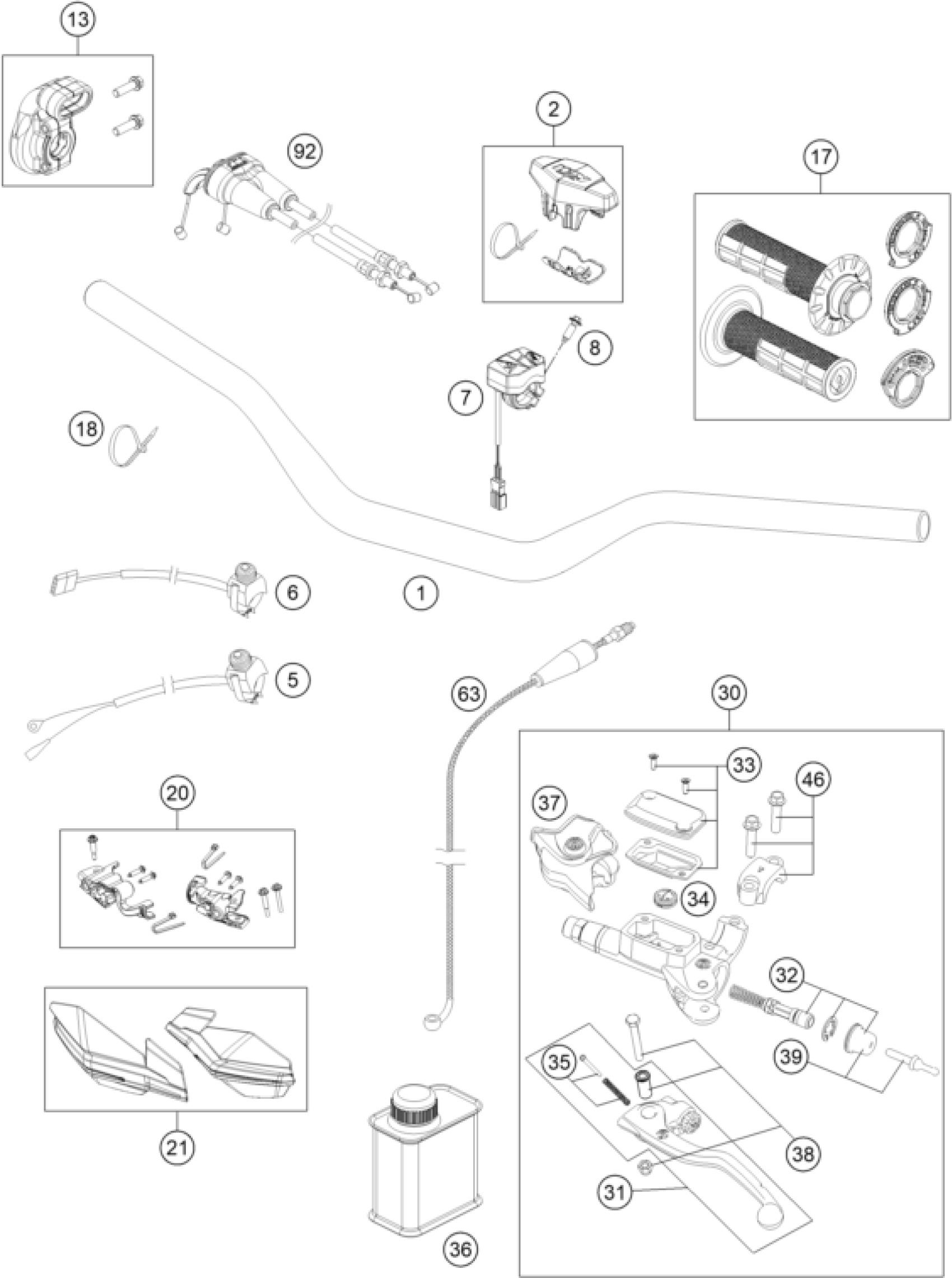

KTM 350 XCF-W 2020 HANDLEBAR, CONTROLS Diagram
