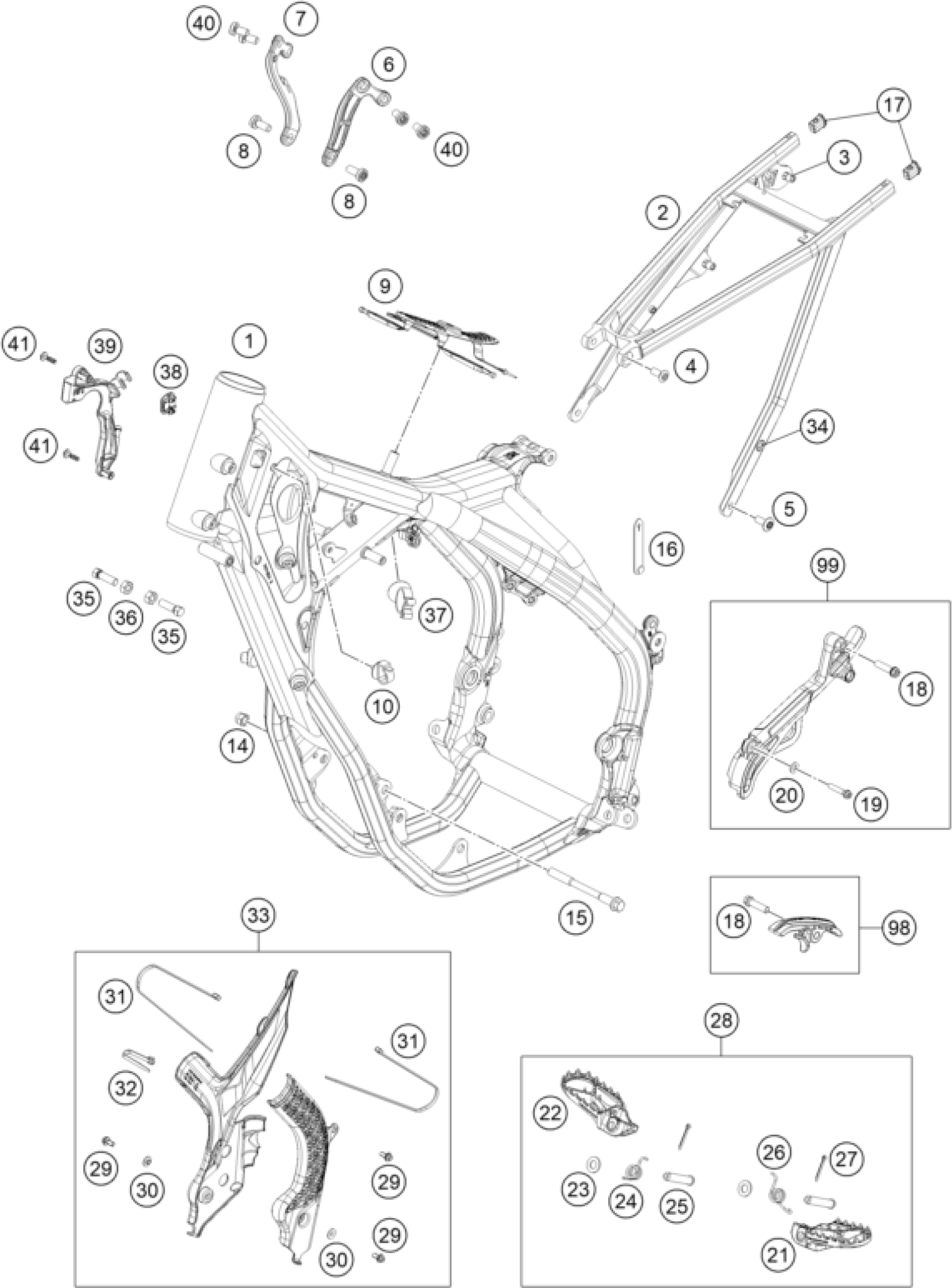

KTM 350 XCF-W 2020 FRAME Diagram

Frame 793T2

7930310100033

$2,133.94

Subframe

79103002000

$201.03

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

Special screw M8X18 TORX45 SL

79003003000

$3.08

Engine brace left

7930311300001S

$51.04

Engine brace right

7930311400001S

$53.85

SHCS M8x20 TX45

0035080206S

$5.32

TANK REST RUBBER

79607012000

$10.09

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

engine brac.scr. M10x115

77203014000

$8.97

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

Rear frame bit

79103002010

$4.11

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x40 TX30

0025060406

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

FOOTREST L/S EXC 2017

79603040000

$44.78

FOOTREST R/S EXC 2017

79603041000

$44.78

washer DIN 125 A 10.5

0125100003

$2.05

FOOTREST SPRING R/S 2016

79003044000

$2.05

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S 2016

79003045000

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTREST-SET

79603040033

$113.03

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

Bush f. frame protection 03

54803092060

$4.11

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

Frame protection set

7910309400030

$26.55

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

CABLE SUPPORT 07

61111041000

$1.49

Cover control head sheet

79111013010

$2.05

Cable holder throttle cable gu

79711013000

$10.09

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

SPROCKET COVER KIT

79003096010

$24.77
