Description

Price

1

Crankshaft cmpl.

79330118100

$1,055.42

2

Connecting rod repair kit

79330115044

$536.49

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

5

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

6

NUT PRIMARY WHEEL

77230029000

$4.29

8

SHAFT SEAL RING A 40X55X6 V.

0760405561

$15.61

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

10

gear primary drive

79232023124

$101.44

11

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

12

RETAINING PLATE F. CS BEARING

75030085000

$1.49

13

CIRCLIP PISTON PIN

79230274000

$19.71

14

COMPRESSIONRING 350

77230030000

$42.72

15

OIL SCRAPER RING

79230232000

$154.69

40

PISTON I CPL. 350

79230207100 I

Unavailable

40

PISTON II CPL. 350

79230207100 II

Unavailable

98

CRANKSHAFT REP. KIT

00050002316

Unavailable

99

Piston kit I

00050000251

Unavailable

99

Piston kit II

00050000252

Unavailable

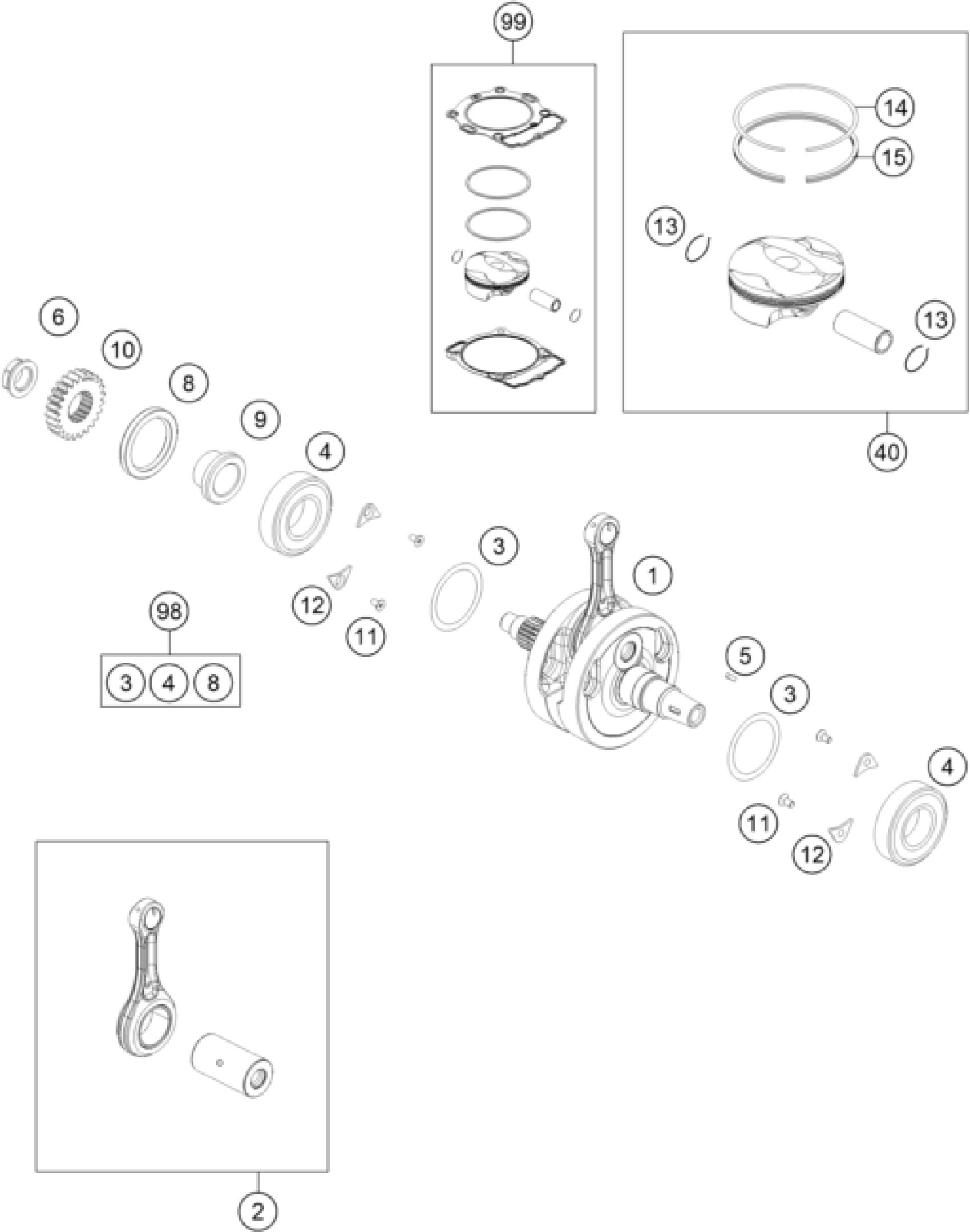

KTM 350 XCF-W 2020 CRANKSHAFT, PISTON Diagram

Crankshaft cmpl.

Connecting rod repair kit

THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,30

BEARING NJ 206 ECP/HN3C4HVA624

WOODRUFF KEY DIN6888-3X3,7

NUT PRIMARY WHEEL

SHAFT SEAL RING A 40X55X6 V.

SPACER BUSHING PRIMARY GEAR

gear primary drive

INT. TORX FLAT HEAD M5X12 T25

RETAINING PLATE F. CS BEARING

CIRCLIP PISTON PIN

COMPRESSIONRING 350

OIL SCRAPER RING

PISTON I CPL. 350

PISTON II CPL. 350

CRANKSHAFT REP. KIT

Piston kit I

Piston kit II
