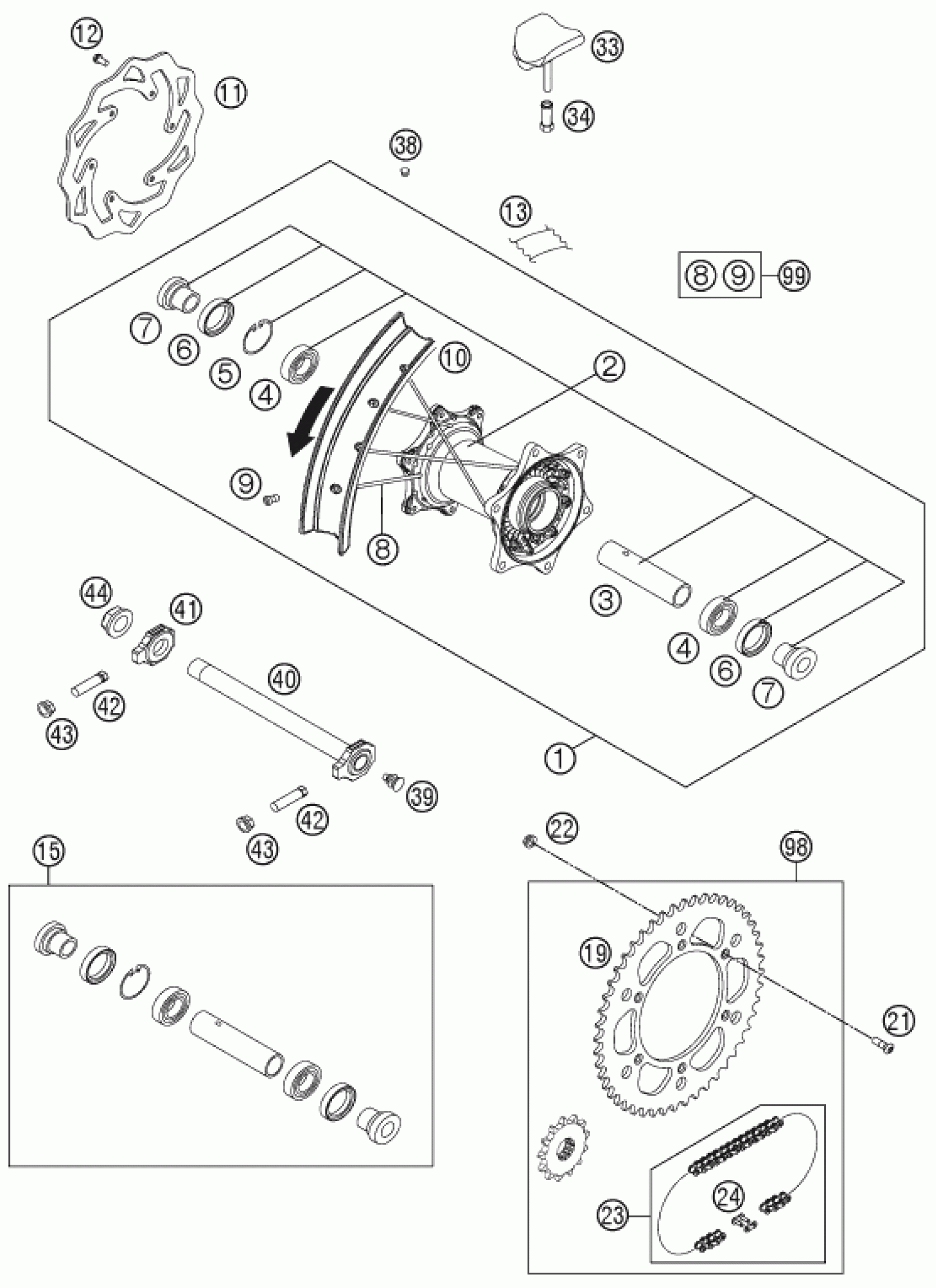

KTM 350 XCF-W 2016 REAR WHEEL Diagram

#

Description
Price

3

BEARING DISTANCE TUBE 121,5MM

77710011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

1

REAR WHEEL 2,15X18''BLACK SD 1

7811000104430

$894.88

2

REAR WHEEL HUB CPL.

78010010144

$313.68

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB 08

78010016000

$32.90

8

SPOKE M4,5X193- 18'' BLACK 12

7711007119330

$5.23

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

RIM REAR 2,15X18'' BLACK

7811007000030

$219.06

11

BRAKE DISC REAR 220

77310060000

$127.62

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

15

REAR WHEEL REP. KIT

78010015000

$107.98

19

REAR SPROCKET 48T ORANGE

7771015104804

Unavailable

19

REAR SPROCKET 50T ORANGE

7771015105004

Unavailable

19

REAR SPROCKET 52T ORANGE

7771015105204

$69.09

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN DID 118 LINKS

78010167118

$125.66

24

CONNECTING LINK F. 78010167118

78010166000

$13.27

33

RIM LOCK 2,15''

78110090000

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

Thru axle rear wheel cmpl. 07

77310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30

98

DRIVETRAIN KIT EXC 14Z/52Z ORA

00050002064

Unavailable

99

SPOKE KIT REAR 18'' BLACK

00050000958

Unavailable
