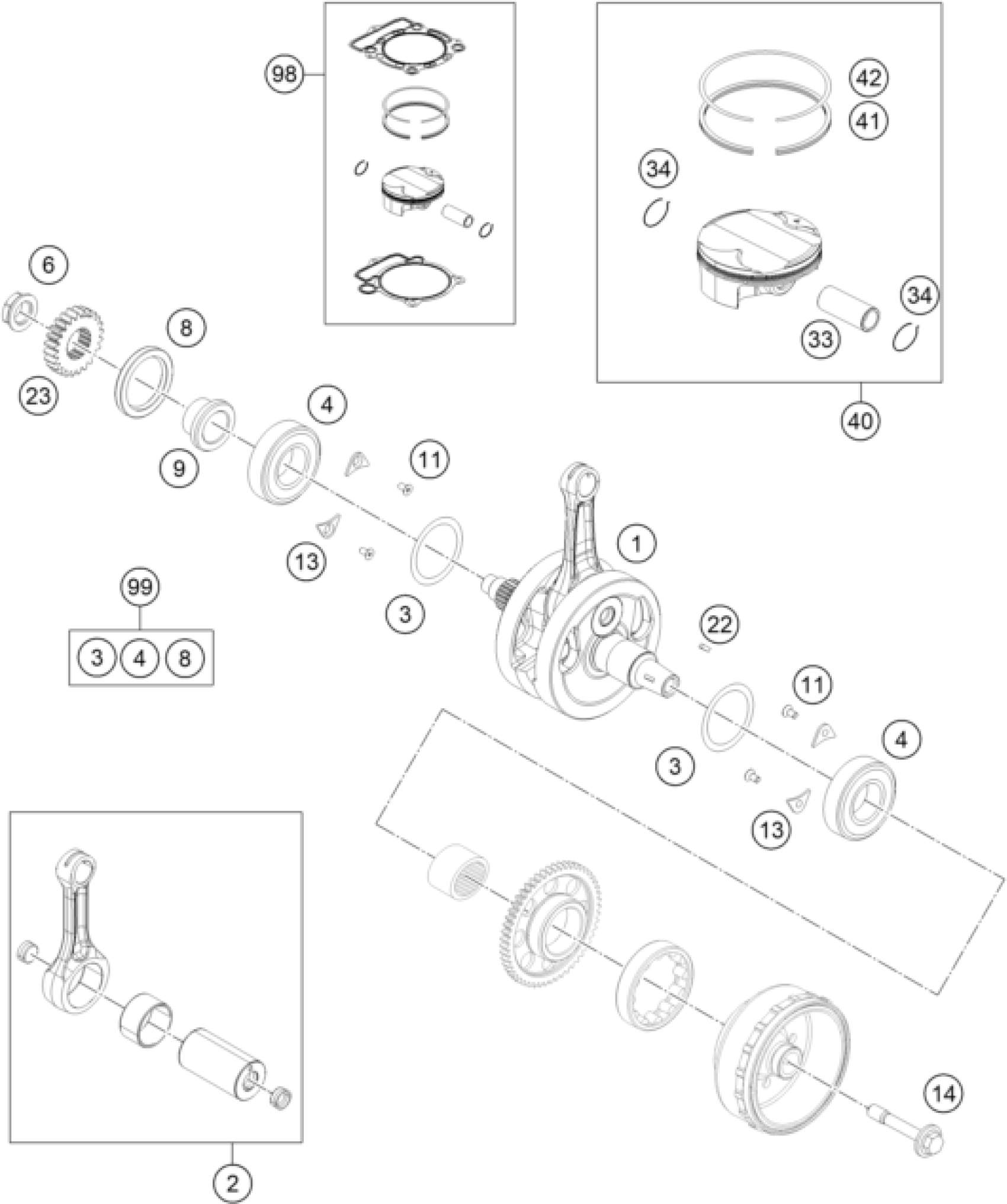

KTM 350 XCF-W 2016 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

77530018200

$1,011.66

2

CONNECTING ROD REPAIR SET

77830015044

$430.28

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

6

NUT PRIMARY WHEEL

77230029000

$4.29

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

11

hex lobe countersunc screw M5x

0019050106S

$2.05

13

RETAINING PLATE F. CS BEARING

75030085000

$1.49

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR 24T.

77232023024

$94.52

33

PISTON PIN 350

77230133000

$51.23

34

CIRCLIP

77230174000

$3.08

40

PISTON I CPL. 350

77530107100 I

Unavailable

40

PISTON II CPL. 350

77530107100 II

Unavailable

41

SCRAPER RING 350

77230032100

$154.69

42

COMPRESSIONRING 350

77230030000

$42.72

98

PISTON KIT GR. I 350 EXC-F 14

77530007010 I

Unavailable

98

PISTON KIT GR. II 350 EXC-F 14

77530007010 II

Unavailable

99

CRANKSHAFT REP.KIT 250/350EXCF

00050002317

Unavailable
