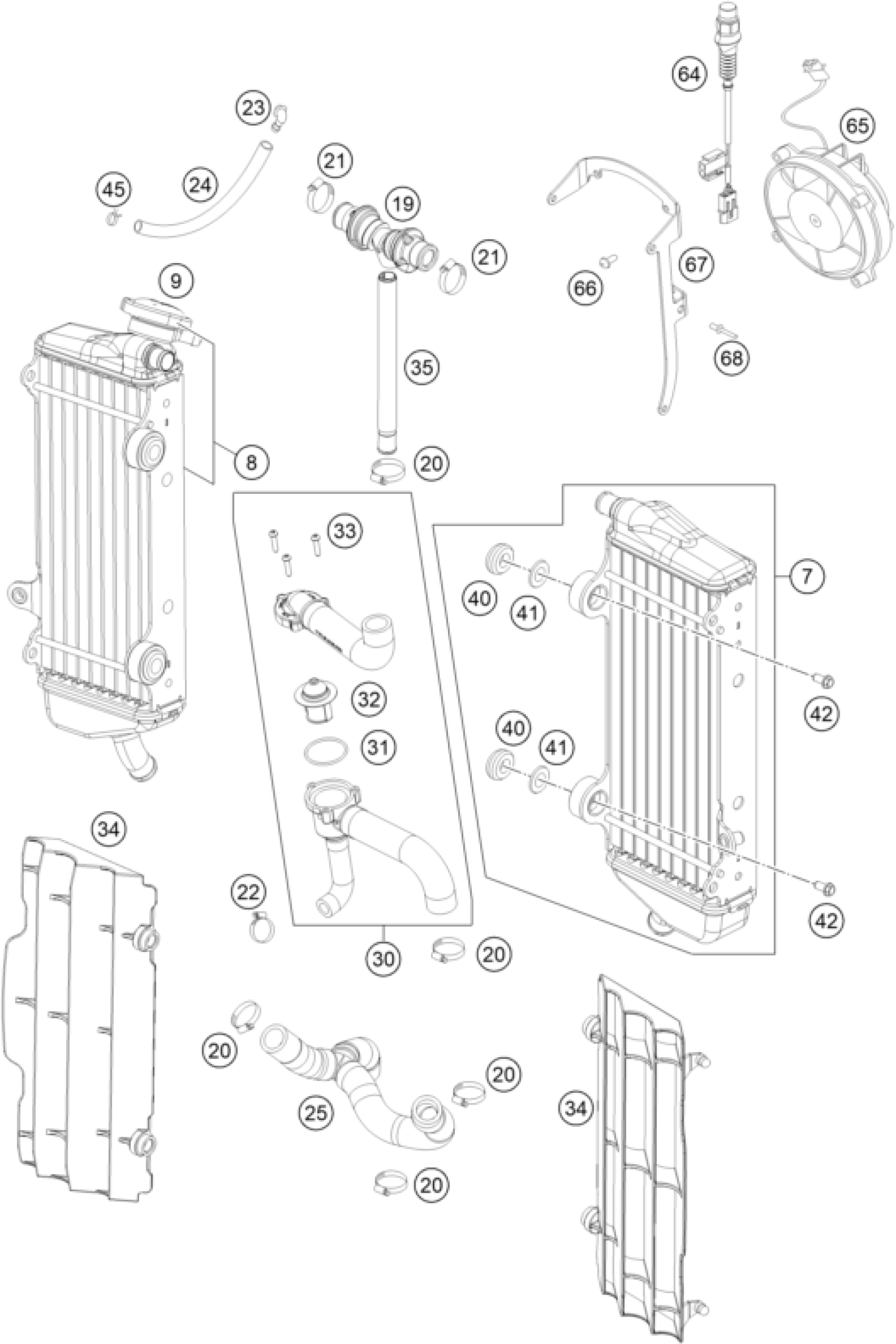

KTM 350 XCF-W 2016 COOLING SYSTEM Diagram

RADIATOR L/S ''15623U''

77035007500

$285.26

RADIATOR R/S ''15556U''

78035008400

$269.27

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

Y-CONNECTOR CPL.

77235071044

$53.38

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP NORMA 14/24

42013037400

$2.05

HOSE CLAMP GEMI 10-16

58335099000

$4.11

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 6X9

50335030001

Unavailable

RADIATOR HOSE CPL.+Y-CONNECT.

77235025033

$60.77

RADIATOR HOSE CPL. W. THERM.

77735126033

$121.92

O-RING 32,00X2,00

0770320020

$2.05

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

RADIATOR PROTECTION orange

7733503400004

Unavailable

COOLING WATER PIPE

50435073000

$19.44

RUBBER SLEEVE D=12MM

41001052000

$4.11

WASHER FOR RADIATOR 08

77335001000

$2.05

COLLAR SCREW M6X12 TX

0023060123

$2.05

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

THERMO SWITCH 95°C M14X1,5

77735045000

$73.48

FAN CPL. 12V LC4 2000

58435041000

$137.53

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

FAN SUPPORT

81235943000

$63.74

RIVET 4,0X 8 ALU

0011400800

$1.49
