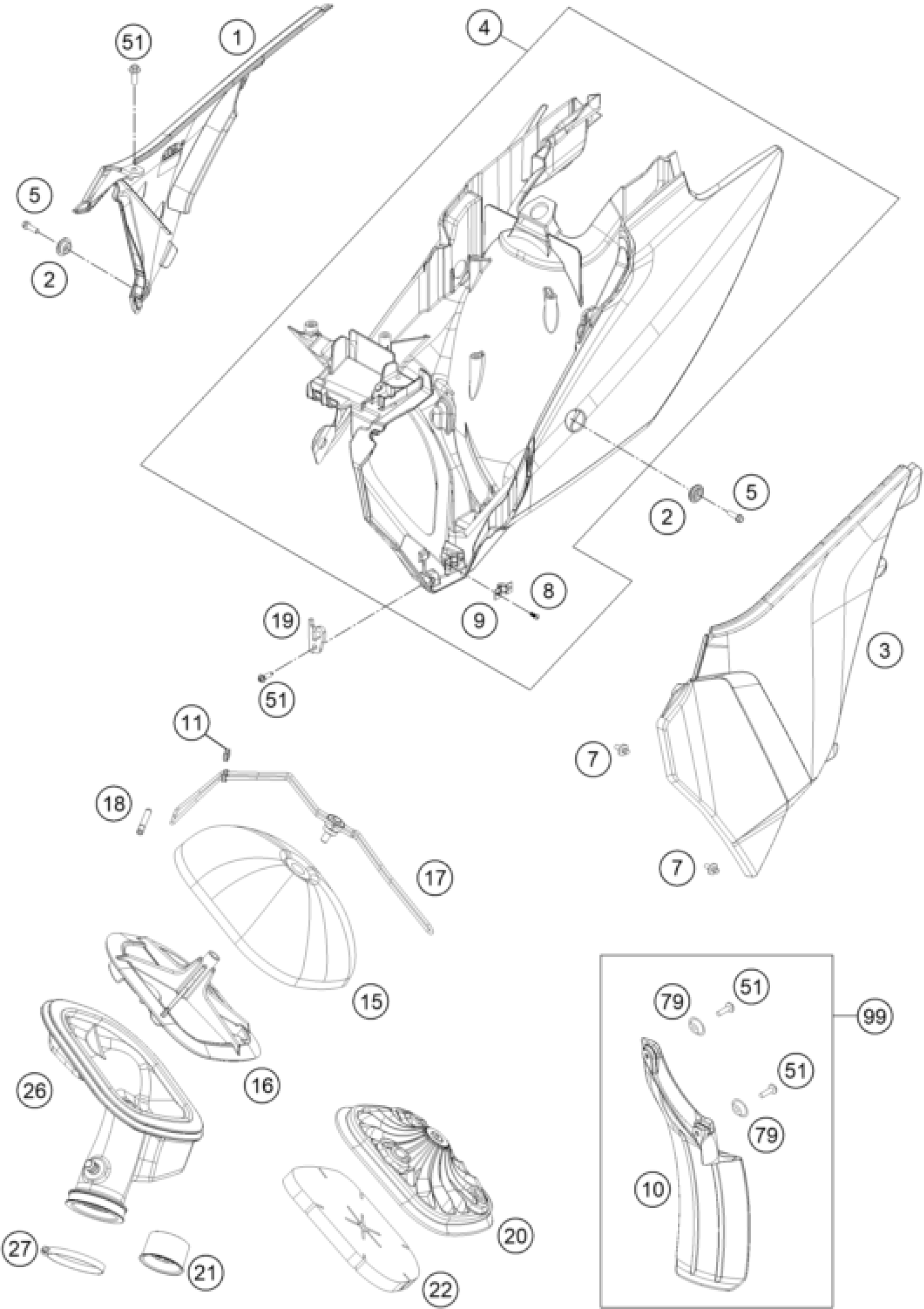

KTM 350 XCF-W 2016 AIR FILTER Diagram

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

AIR BOX COVER LS EXC

7770600310028D

$39.01

FILTER BOX CPL. WHITE 13

7770600104428

$41.22

HH collar screw M6x20 TX30

0025060206

$3.08

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

FENDER FOR FILTER BOX

77306010000

$20.84

RUBBER SLEEVE 15X22X26

50306017055

$4.11

AIR FILTER

77206015000

$32.12

FILTER CARRIER 11

77206016000

$24.77

FILTER SUPPORT CPL. 11

77206017000

$19.53

FILTER SUPPORT BUSH 07

77306018000

$3.08

AIR BOX COVER RS EXC

7770600420028C

$22.91

FASTEN. DEVICE FILTER S. SX 11

77206019000

$8.41

THROTTLE VALVE CAP

78106012000

$24.58

THROTTLE VALVE

78106012050

$2.05

THROTTLE VALVE CAP FILTER

78106014000

$9.17

AIRBOXRUBBER 350 EFI

77506026000

$63.10

HOSE CLAMP 45-65MM

78006027000

$5.23

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

chain slider bushing

77304066050

$1.49

SPLASH PROTECTOR KIT SX/EXC

77306010010

Unavailable
