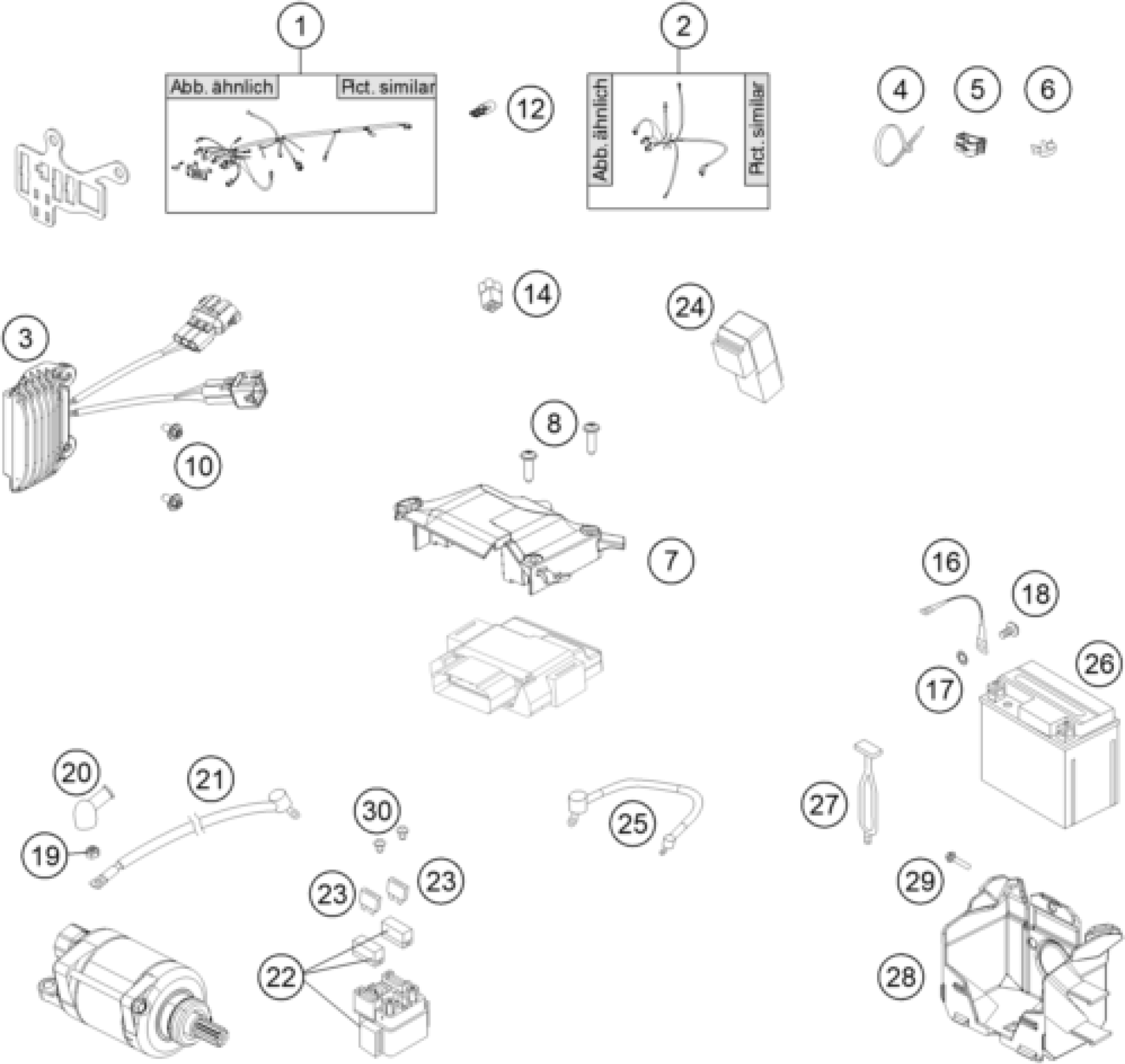

KTM 350 XCF-W 2014 WIRING HARNESS Diagram

VOLTAGE REGULATOR

78111034000

$212.98

ECU SPLASH PROTECT.

77711094050

$10.37

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

WIRING HARN.EFI VMT. EU/AUS 14

78111075133

$486.38

WIRING HARNESS LIGHT XC-W 14

77711079100

$15.70

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

Line guide

83013026000

$3.08

WIRING HOLDER 16MM

57013072100

$1.49

COLLAR SCREW M6X12 TX

0023060123

$2.05

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

DUMMY PLUG AN 4-PIN

81211096000

$8.69

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

Self lock. nut DIN985-M6-A2

0985060003

$2.05

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

STARTERCABLE 700 MM '97

58411059100

$23.65

Starter reley 12V 99

58211058000

$72.64

Plug-in fuse, big 20A

58011109120

$1.49

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

BATTERY 12V 3AH YTX4L-BS

77311053000

$166.05

RUBBER L=145MM

50303018000

$6.44

BATTERY BOX

77211055000

$14.67

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
