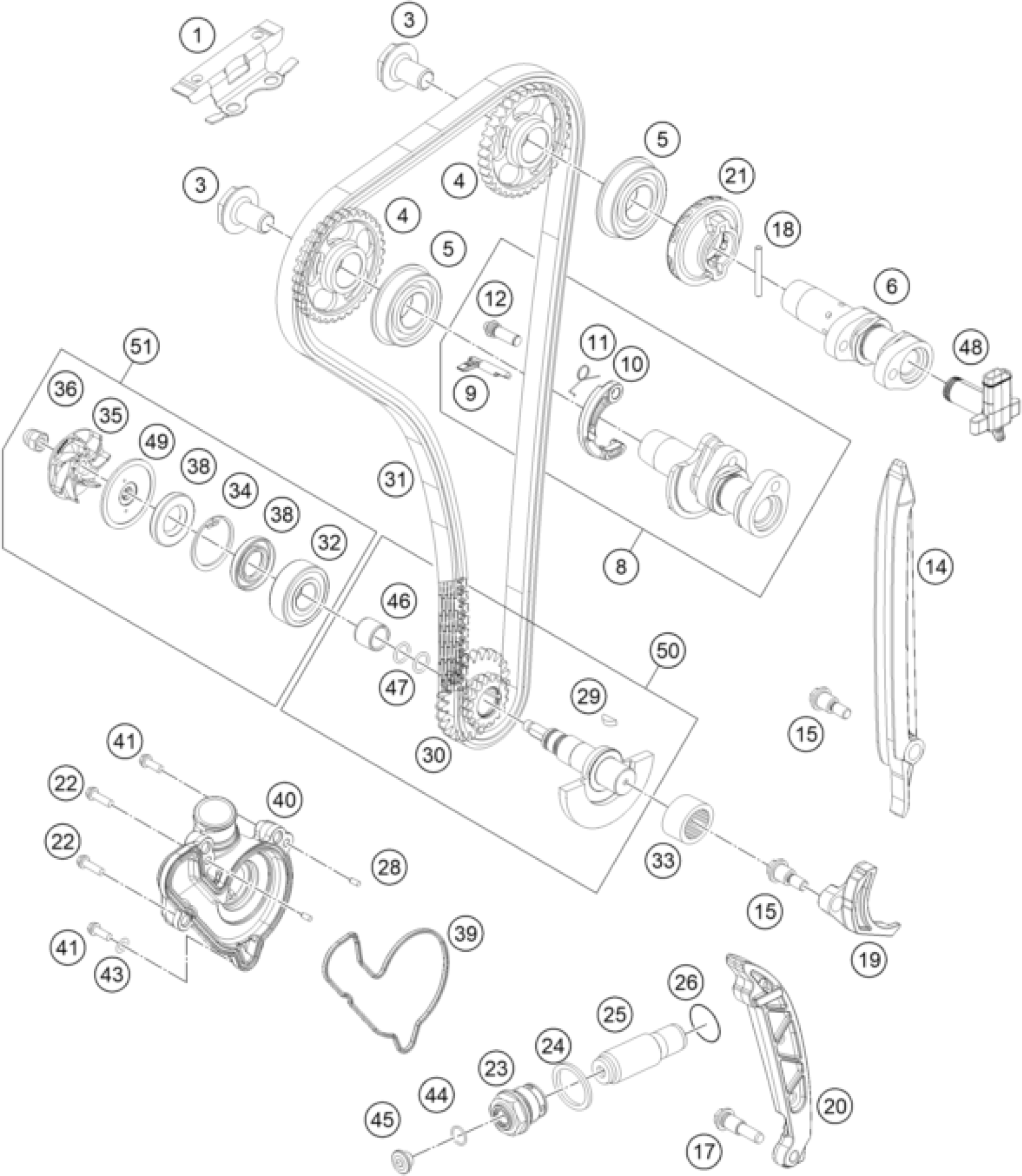

KTM 350 XCF-W 2014 TIMING DRIVE Diagram

TIMING CHAIN GUIDE TOP

77236004000

$33.28

CAMSHAFT GEAR SCREW 08

77036012100

$13.36

CAMSHAFT GEAR

77236011000

$83.11

BALL BEARING 6004 NR C3 ´05

0625060043

$13.92

CAMSHAFT INTAKE

77536009000

$213.64

CAMSHAFT EXH. WITH DEKO CPL.

72036010044

$296.67

AUTO DECOMPRESSION

77236015000

$28.42

AUTO DECO WEIGHT

77036016100

$54.50

SPRING FOR AUTO DECOMPR.

77236017000

$4.11

BUSHING SCREW AUTODEC.

77236019000

$8.03

TIMING CHAIN GUIDE

77236001000

$7.56

BUSHING SCREW M6

77236001160

$5.23

BUSHING SCREW M8

77236002160

$3.08

NEEDLE ROOLER NRB 3.5X29.8-G2

0402035298

$35.05

SECURING PROTECTION

77236005000

$3.08

TENSIONING RAIL

77236002000

$20.00

VENTILATION GEAR CPL.

77236082000

$11.40

HH collar screw M6x40 TX30

0025060406

$3.08

HOLDING BOLT M24X1,5

77336008000

$20.56

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

o-ring 18.00x2.00 NBR70

0770180020

$2.05

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

TIMING VALVE TWIN WHEEL

77236076000

$119.48

TIMING CHAIN

77236013000

$161.84

BALL BEARING 6202 C0 2

0625062022

$14.48

NEEDLE BEARING NK16/16

77230058000

$18.88

CIRCLIP 30X1,2

0472300120

$1.49

WATER PUMP ROTOR

81235055020

$10.09

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82

WATER PUMP COVER GASKET

77735053000

$8.69

WATERPUMP COVER

77735052000

$32.44

HH collar screw M6x25 TX30

0025060256

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

o-ring 10.00x1.00 NBR70

0770010010

$2.05

SCREW PLUG

77236080000

$6.63

water pump wear bushing

77236072020

$10.56

O-RING 9x1,5 V80 SH

07700900151

$2.05

ANGLE PIECE F. BREATHER SYSTEM

77236081000

$4.11

DISC WATER PUMP

81235055110

$5.23

BALANCER SHAFT CPL.

77536072033

Unavailable

WATER PUMP REP. KIT 11-14

77235055010

Unavailable
