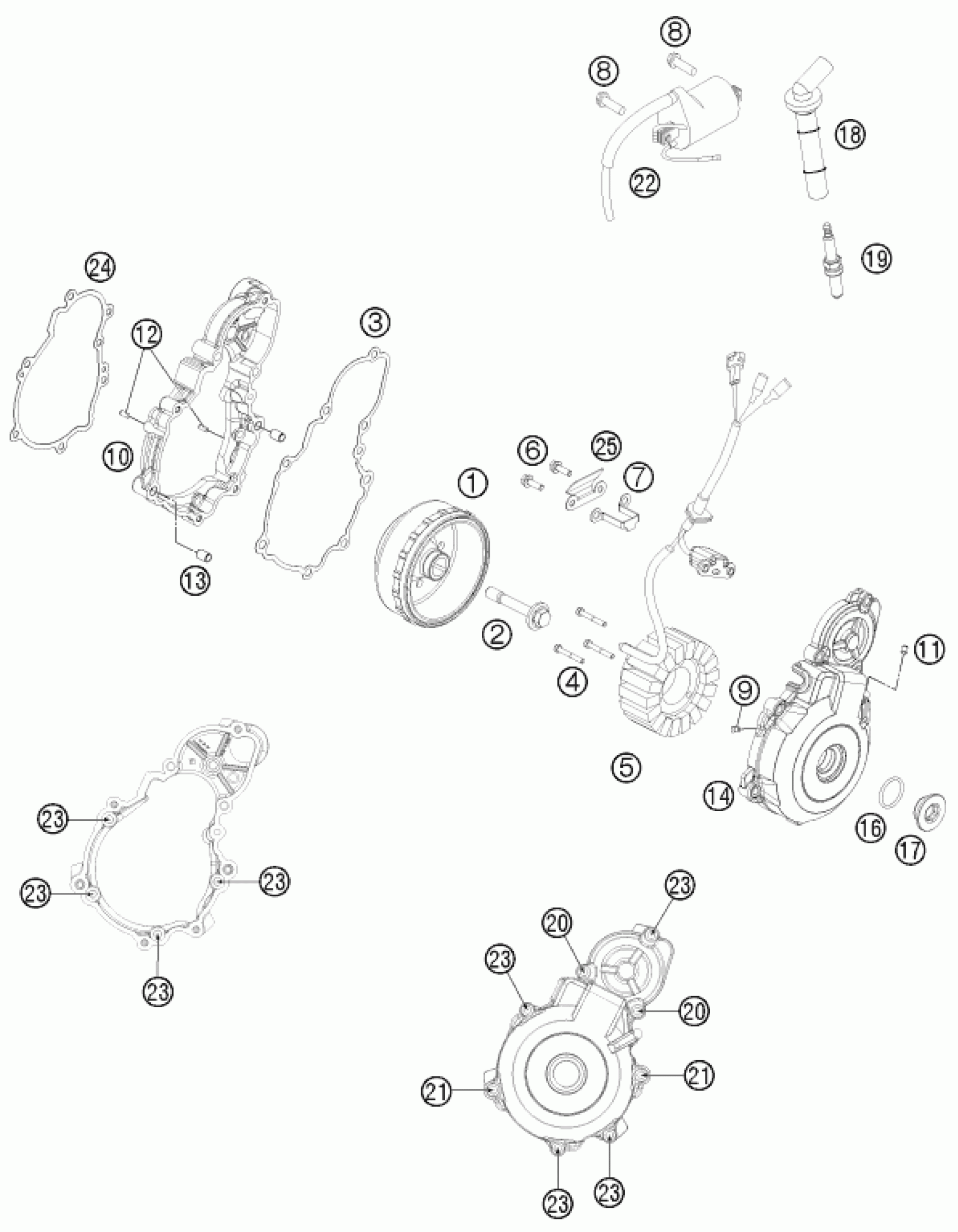

KTM 350 XCF-W 2014 IGNITION SYSTEM Diagram

#

Description
Price

1

ROTOR EFI CPL.

77539005144

$492.46

2

FLYWHEEL SCREW

77339010100

$5.60

3

IGNITION COVER GASKET

77530042000

$13.83

4

AH SCREW DIN0912-M 5X30

0912050303

$1.49

5

STATOR

77539004000

$220.02

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

CABLE TAB WASHER EXC

77530002050

$15.79

8

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

9

OIL JET ''60'' M4

80030058060

$11.87

10

IGNITION COVER INSIDE

7753000200015

$79.93

11

THREAD PIN DIN 913 M5X6

0913050063

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

dowel sleeve 6x8x11.5

59030023000

$1.49

14

IGNITION COVER

7753001200015

$153.14

16

o-ring 24.00x2.50 Viton

07700240251

$3.08

17

FACTORY IGNITION COVER PLUG

7723000206030

$36.64

18

SPARK PLUG CONNECTOR

77239090000

$33.84

19

PLUG NGK LMAR9AI - 8

77239093000

$22.71

20

HH collar screw M6x50 TX30

0025060506

$3.08

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

23

HH collar screw M6x25 TX30

0025060256

$3.08

24

IGNITION COVER GASKET

77530040000

$13.27

25

BRACKET

77530002060

$8.31
