Description

Price

15

CIRCLIP DIN0472-57X1,50

0472057150

$2.05

16

ROTOR EFI CPL.

77539005144

$492.46

1

E-STARTER ENGINE CPL.

77240001100

$286.29

2

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

3

HH collar screw M6x25 TX30

0025060256

$3.08

5

NEEDLE BUSH HK 0810 DIN 618

0618081210

$5.23

6

TORQUE LIMITER

77240116000

$118.08

7

BUSHING PIN

59040028000

$10.46

8

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

9

STARTER INTERMEDIATE GEAR

77240122000

$50.11

10

STOP DISK 17,2X25X1

54633090000

$5.23

11

CIRCLIP DIN0471-17X1

0471170010

$2.05

12

NEEDLE BUSH HK2516 25/32/16 02

0618253216

$9.90

13

FREEWHEELER GEAR

77840120000

$61.89

14

FREE WHEEL 03

80040026000

$83.95

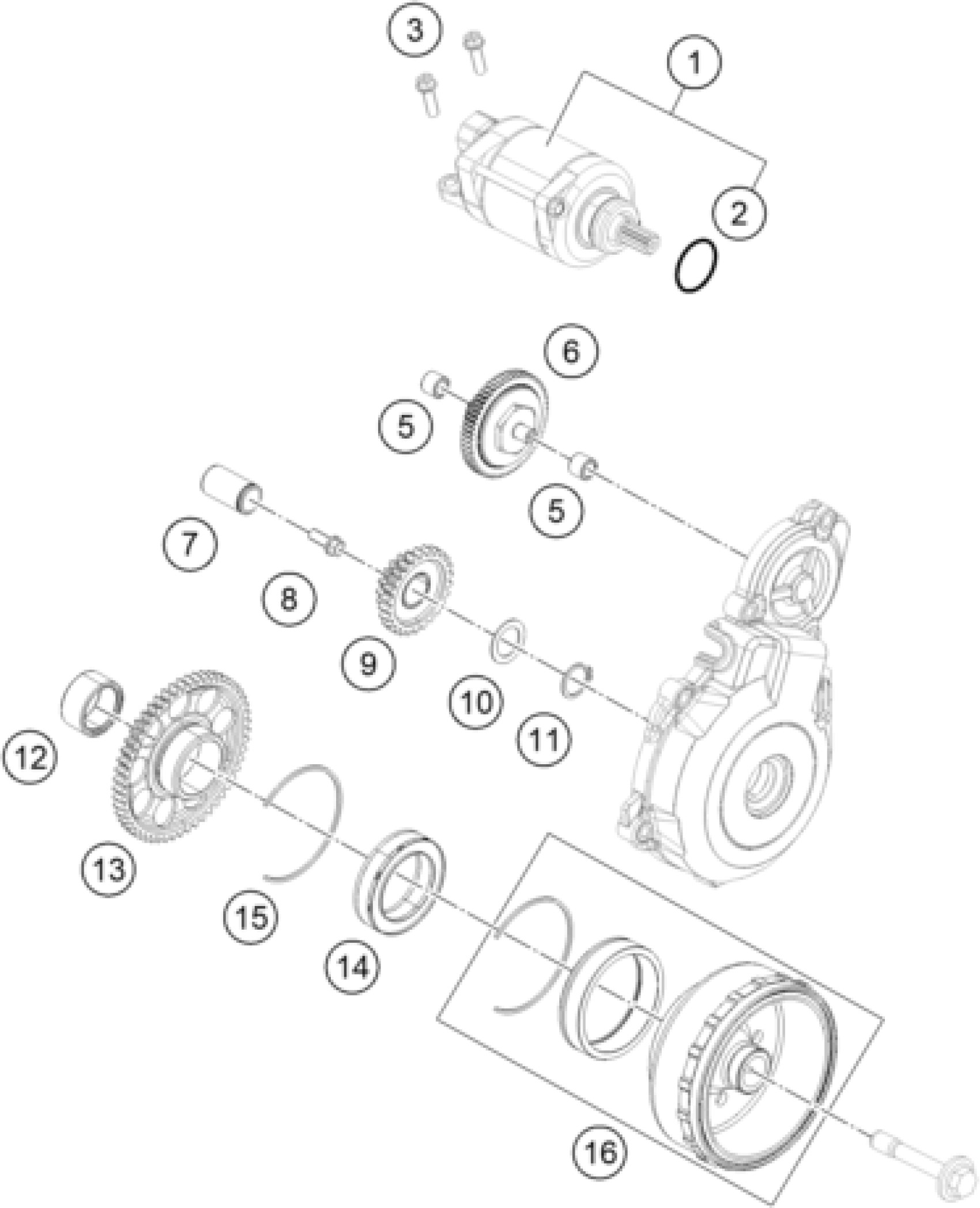

KTM 350 XCF-W 2014 ELECTRIC STARTER Diagram

CIRCLIP DIN0472-57X1,50

ROTOR EFI CPL.

E-STARTER ENGINE CPL.

O-RING 25,00X3,00 NBR 70

HH collar screw M6x25 TX30

NEEDLE BUSH HK 0810 DIN 618

TORQUE LIMITER

BUSHING PIN

HH COLLAR SCREW M 6X16 WS=8

STARTER INTERMEDIATE GEAR

STOP DISK 17,2X25X1

CIRCLIP DIN0471-17X1

NEEDLE BUSH HK2516 25/32/16 02

FREEWHEELER GEAR

FREE WHEEL 03
