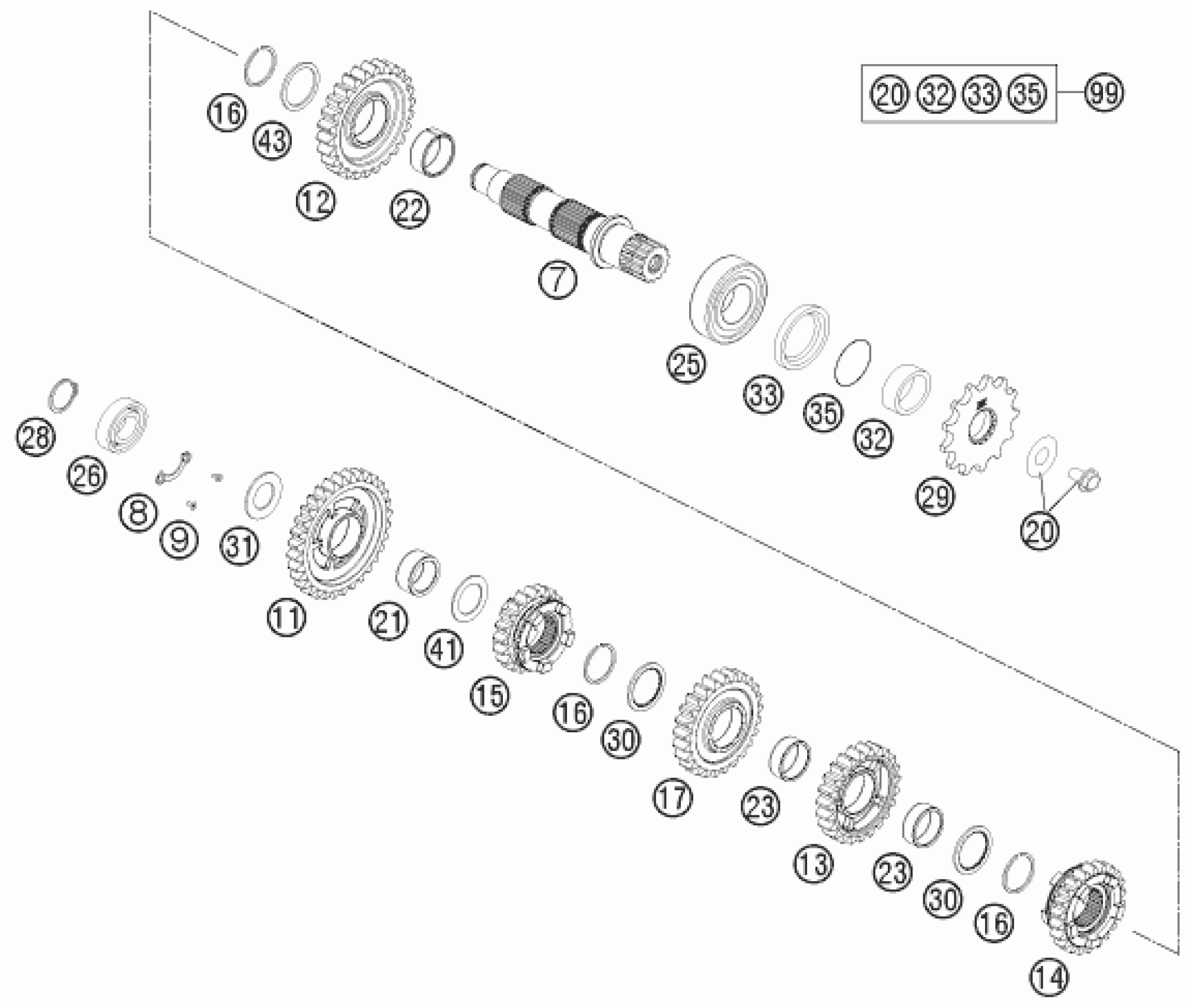

KTM 350 XCF-W 2013 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

COUNTERSHAFT

77233110000

$134.44

8

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

9

hex lobe countersunc screw M5x

0019050106S

$2.05

11

IDLER GEAR 1. G, Z=32

54833211000

$174.74

12

IDLER GEAR 2. G., Z=26

54833212000

$92.09

13

IDLER GEAR 4.G., Z=23

54833214000

$116.77

14

SLIDING GEAR 5.G., Z=22

54833215000

$93.96

15

SLIDING GEAR 6.G., Z=20

54833216000

$123.79

16

CIRCLIP WS24

0417024000

$2.05

17

IDLER GEAR 3.G., Z= 25

54833213000

$123.22

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

NEEDLE BEARING K 20X26X12

0405202612

$10.93

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

25

cylindrical roller bearing NJ2

49030023000

$74.42

26

BALL BEARING 6203 JR2 C3

0625062035

$14.48

28

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

29

FRONT SPROCKET 13-T

50033029013

$30.94

29

FRONT SPROCKET 14-T

50033029014

Unavailable

30

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

31

STOP DISK 17,2X30X1,3

77233020000

$4.11

32

SPACER BUSHING 12MM

54633014100

$20.94

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

35

O-RING 25,12X1,78 NBR70

0770020220

$3.08

41

STOP DISC 20,2X30X1

54833080000

$3.08

43

STOP DISC 25X31X1,5

54833044000

$5.23

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
