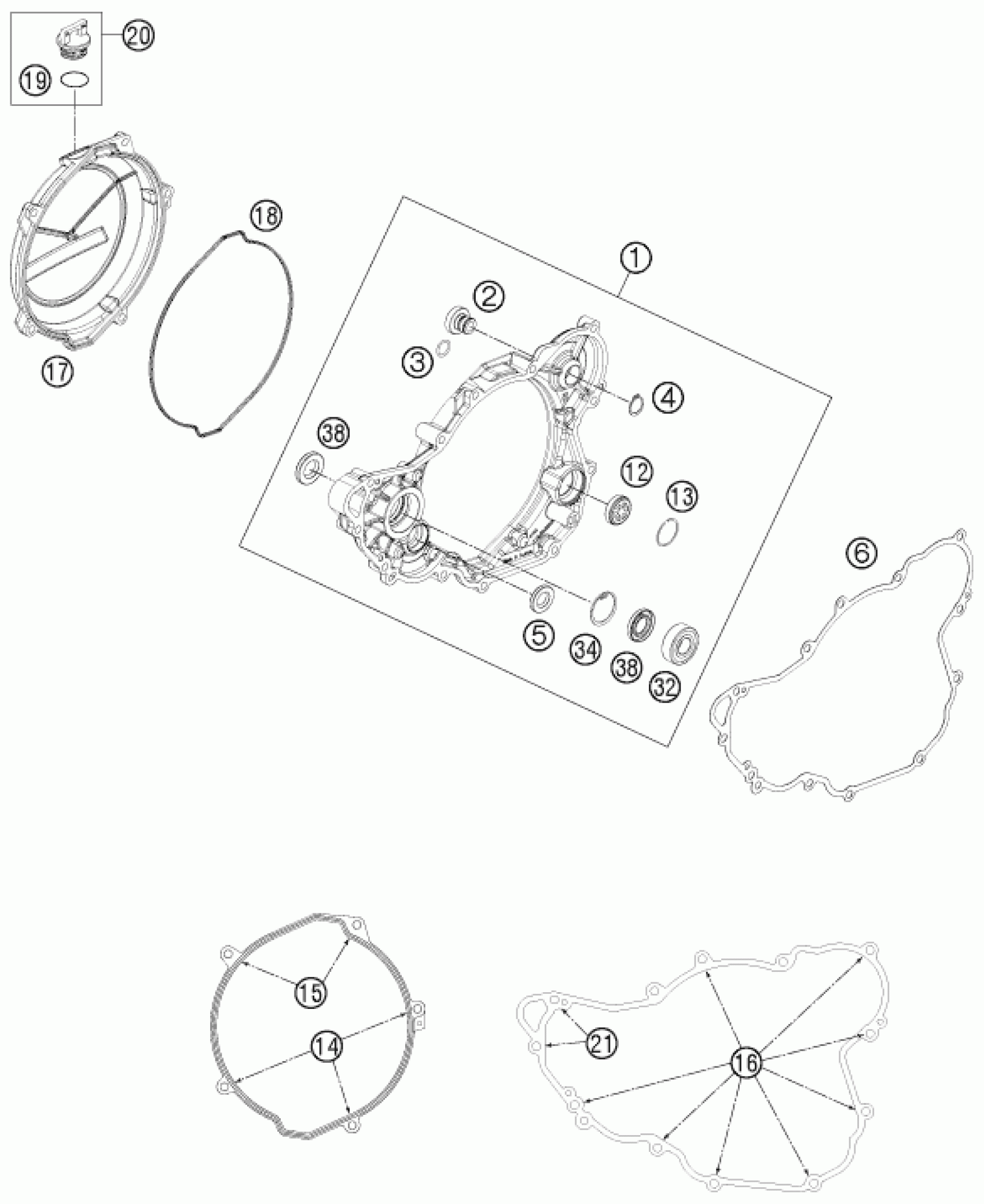

KTM 350 XCF-W 2013 CLUTCH COVER Diagram

PLUG STARTING LEVER

77230001010

$11.02

O-RING 14,00X2,00

0770140200

$2.05

CIRCLIP DIN0471-17X1

0471170010

$2.05

radial shaft seal 14x24x6 B

0760142460

$9.25

CLUTCH COVER GASKET

77230025000

$24.40

OIL LEVEL GLASS

59030019100

$21.31

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

HH collar screw M6x20 TX30

0025060206

$3.08

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

HH collar screw M6x25 TX30

0025060256

$3.08

CLUTCH COVER OUTSIDE

7723002600015

$92.93

GASKET FOR OUTER CLUTCH COVER

77230027000

$13.83

O-RING 19,00X3,00 NBR

0770191015

$2.05

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

HH collar screw M6x40 TX30

0025060406

$3.08

BALL BEARING 6202 C0 2

0625062022

$14.48

CIRCLIP 30X1,2

0472300120

$1.49

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82

CLUTCH COVER CPL.

77230001044

$143.14
