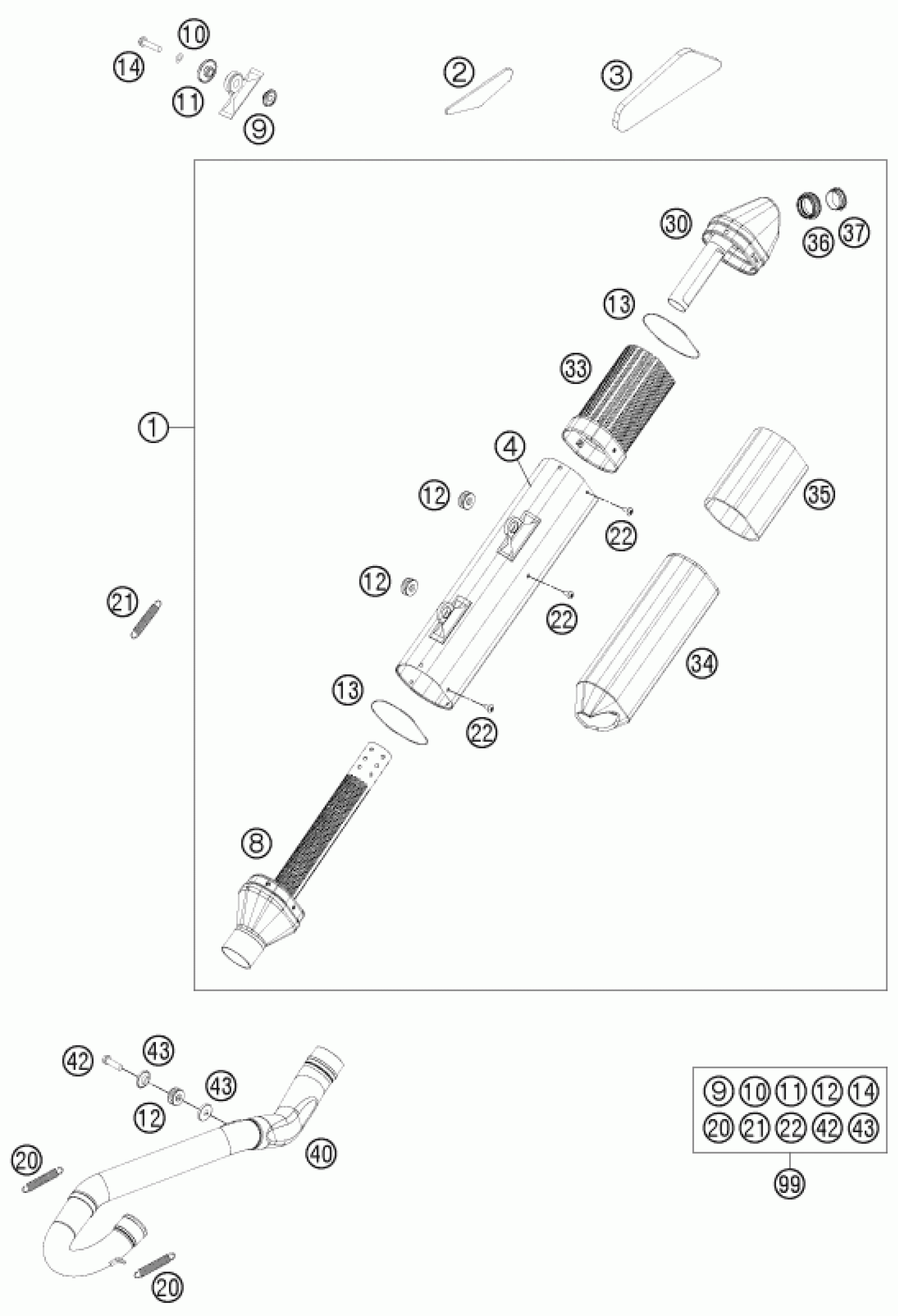

KTM 350 XCF-W 2012 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER XC-W USA

78105082000

$686.00

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

3

THERMAL PROTECTION FOIL

77208013050

$9.53

4

SILENCER HOUSING EXC USA

78105082080

$108.75

8

CONNECTING CAP

78105081050

$188.58

9

BUSHING 7.5x12x20x8.2 11

77205069000

$5.98

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

12

DAMP. COMPON. BLACK

77205068000

$6.54

13

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

14

HH collar screw M6x30 TX30

0025060306

$3.08

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

$7.00

22

SCREW TORX M5X10

78105081010

$2.05

30

SILENCER CAP EXC USA

78105082060

$159.97

33

INSERT SILENCER

78105081040

$48.01

34

ROCKWOOL PREFOMED

78105078400

$65.25

35

STUFFING YARN REAR

78105078070

$30.19

36

SILENCER BUSHING REAR EXC-F 09

77005081154

$26.26

37

SIL. ELEMENT EXC-F 07

77005081055

$9.81

40

EXHAUST MANIFOLD 350 SX-F 11

77205007000

$431.49

42

HH collar screw M8x25

0025080256

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

99

EXHAUST PARTS KIT 12-14

00050000815

Unavailable
