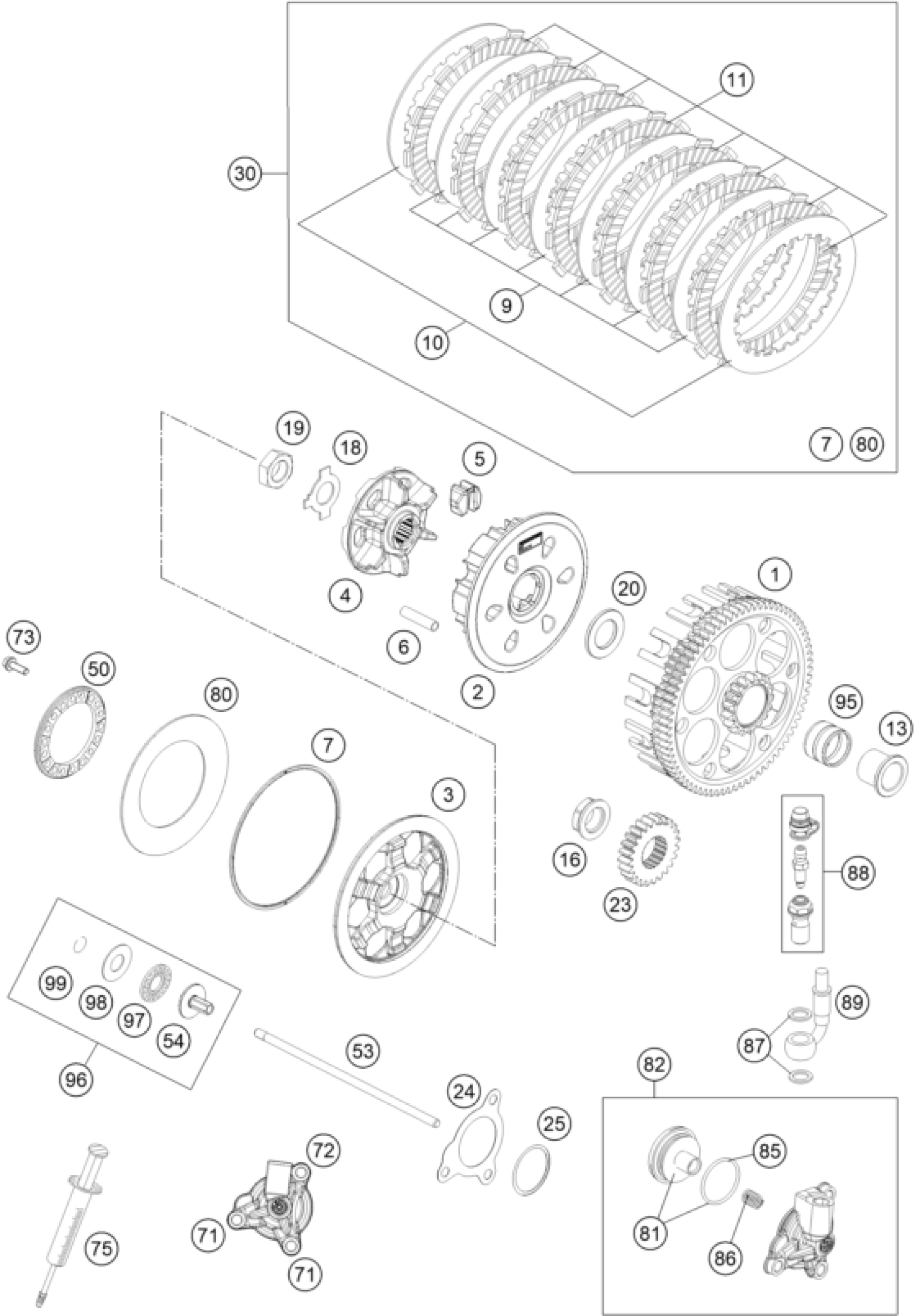

KTM 350 XCF-W 2012 CLUTCH Diagram

#

Description
Price

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

99

CIRCLIP DIN7993-RW12

0993012000

$3.08

86

PRESSURE SPRING

54832069000

$12.05

87

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

88

BLEEDER SCREW CPL. 05

62513020000

$27.48

89

CLUTCH PIPE 06

54832063000

$100.32

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

7

WASHER 112X118X1.5

78132013000

$10.84

6

SLEEVE 7,5X33.4

78132004000

$4.11

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

BELLEVILLE SPRING 71X115X1,5 I

78132005000

$31.97

81

PISTON CPL.

77232066000

$49.83

82

OUTPUT CYLINDER CPL.

77232061044

$132.20

18

LOCK WASHER

56532018000

$6.26

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

WASHER 21,8 X 37 X 5,1

77232009000

$8.13

23

PRIMARY GEAR 24T.

77232023024

$94.52

24

GASKET F. OUTPUT CYLINDER

77232062000

$4.11

25

O-ring 30x1.5 NBR 70

0770300015

$2.05

30

CLUTCH KIT 350 EXC-F 12-15

78132010110

$245.06

50

SPRING RING

78132006100

$10.84

73

HH collar screw M5x16 TX30

0025050166

$2.05

85

O-RING

54832067000

$3.08

96

PRESSURE PIECE CPL. 08

78032057044

$26.08

5

DAMPING RUBBER

78132025100

$4.11

53

PUSH ROD

77232054000

$16.54

54

PRESSURE PIECE

78032057000

$26.08

71

HH collar screw M6x16 TX30

0025060166

$3.08

72

HH collar screw M6x35 TX30

0025060356

$3.08

1

OUTER CLUTCH CPL.

77232001073

$261.62

2

INNER CLUTCH HUB

78132002008

$134.72

3

PRESSURE PLATE

78132003000

$208.87

4

HUB

78132002111

$134.72

9

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

11

LINING DISC 2MM 04

59032011100

$22.43

13

INNER RING

77232015000

$20.66

16

NUT PRIMARY WHEEL

77230029000

$4.29
