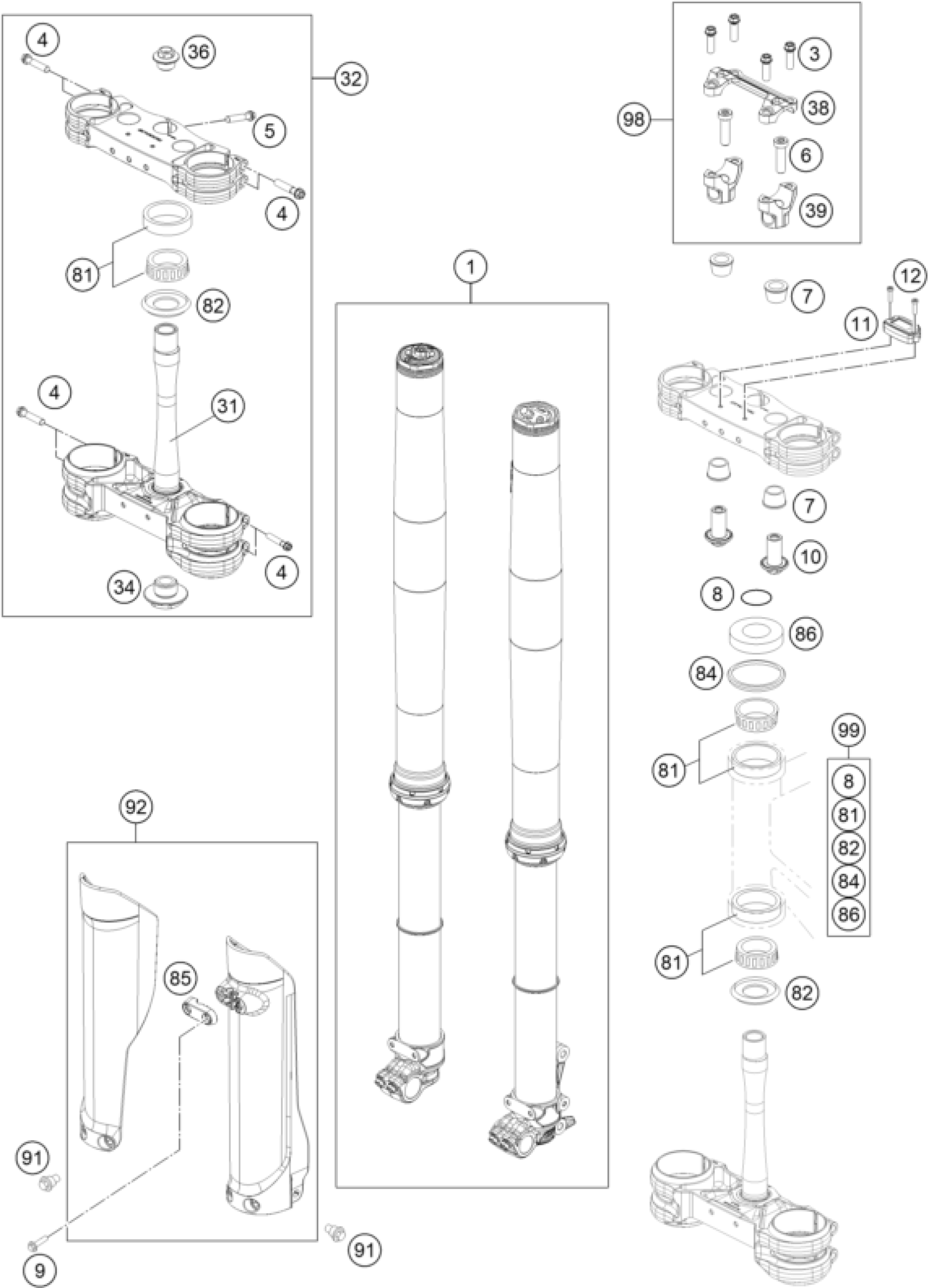

KTM 350 XC-F KAILUB RUSSELL 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 350 XC-F / FX 350 2021

34188U7701

$2,415.52

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

7

RUBBER BUSH

83001040000

$5.23

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

11

HOUR METER

78112020050

$56.09

12

AH SCREW DIN0912-M 4X16

0912040163

$2.05

31

Steering stem

79101933000

$84.14

32

Factory triple clamp

7910199902104

$613.69

34

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

36

AXLESCREW M20X1.5 SW17

70009082000

$9.44

38

Handlebar clamp 28mm

79001938000

Unavailable

39

HANDLEBAR SUPPORT D28MM-H36MM

79001039036

$32.44

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

Clamp for brake line

77701085100EB

$5.23

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork protection kit Kailub Rus

77701094100EBL

Unavailable

98

handlebar mount kit for CU

00050000998

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
