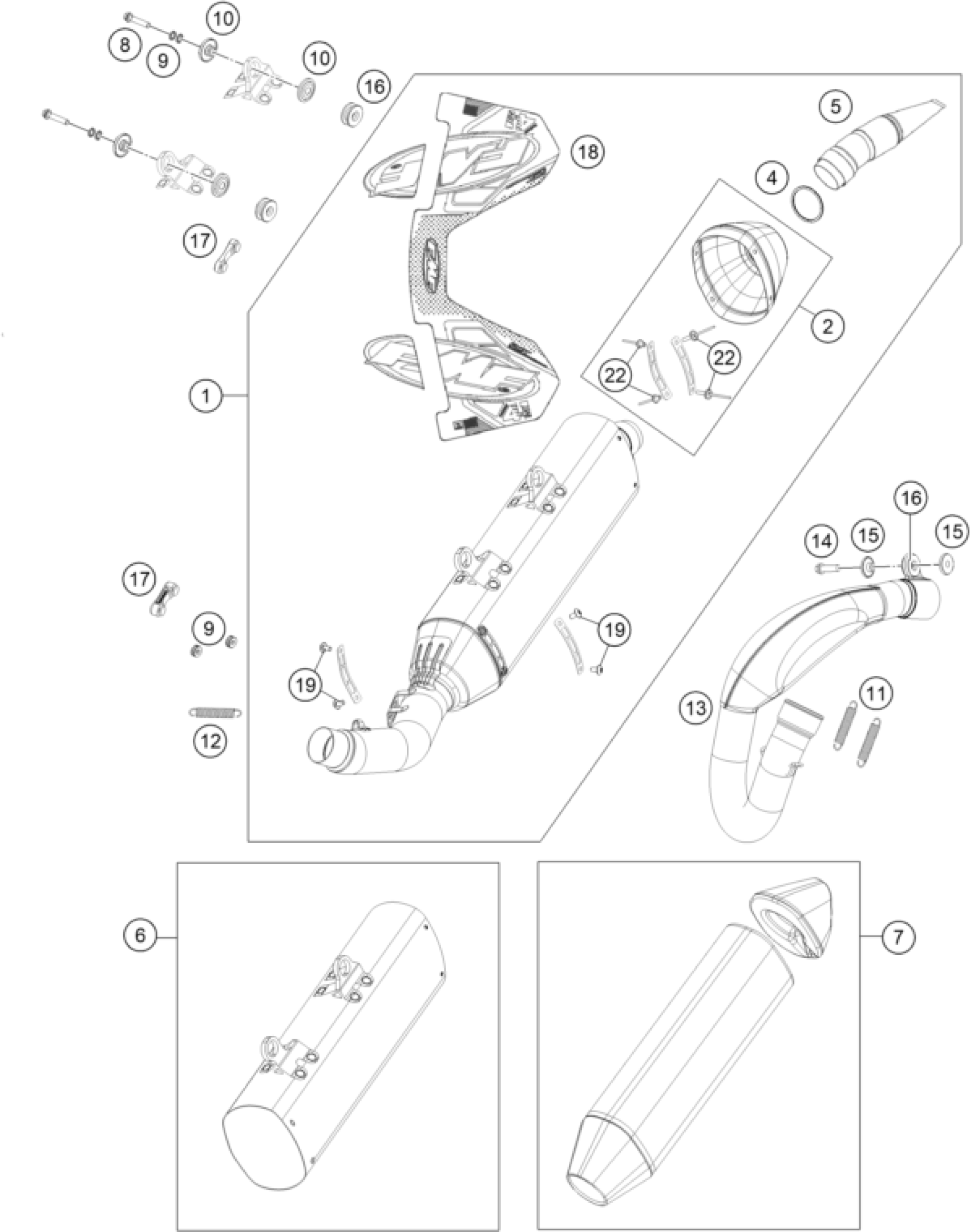

KTM 350 XC-F KAILUB RUSSELL 2021 EXHAUST SYSTEM Diagram

#

Description
Price

1

FMF Factory 4.1 RCT silencer

79505979003

Unavailable

2

CARBON ENDCAP

79005079550

Unavailable

4

Spiral retaining ring

79505979535

Unavailable

5

Spark arrestor insert

79505979533

Unavailable

6

Muffler sleeve

79505979523

Unavailable

7

Race repack kit

79505979513

Unavailable

8

HH collar screw M6x30 TX30

0025060306

$3.08

9

Pair of washers M6 NORDLOCK

50233041000

$4.11

10

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

12

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

13

Header KTM 350 SX-F

79305007000

$429.44

14

HH collar screw M8x25

0025080256

$2.05

15

BUSHING 8.5x12x28x8.3

77805069000

$5.98

16

DAMP. COMPON. BLACK

77205068000

$6.54

17

exhaust spacer

79105098000

$5.51

18

FMF Factory 4.1 RCT sticker

79505979583

Unavailable

19

SCREW TORX M5X10

78105081010

$2.05

22

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

11

Tension spring L=65 mm

50305016200

$4.57
