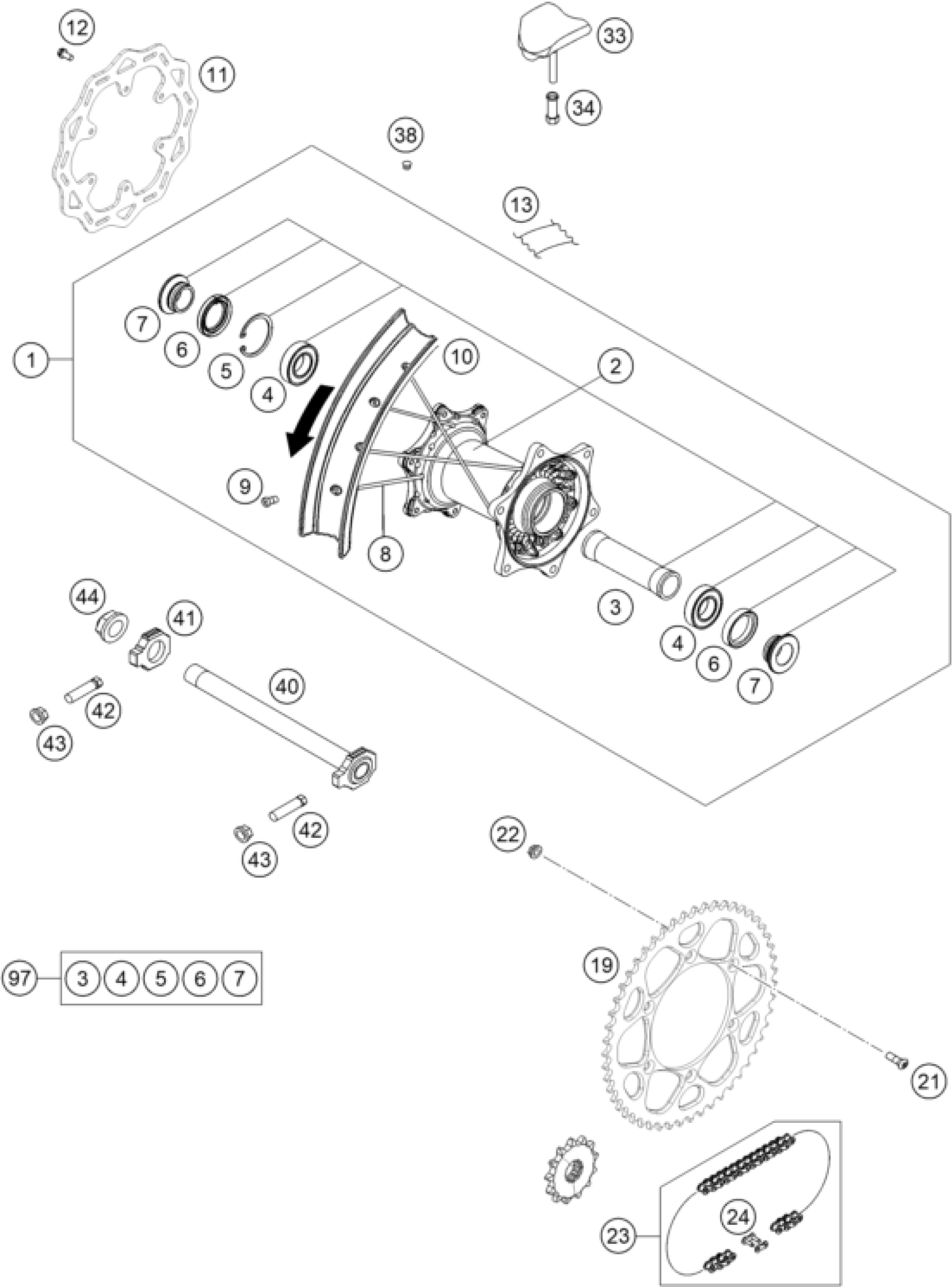

KTM 350 XC-F FACTORY EDITION 2026 REAR WHEEL Diagram

#

Description
Price

1

Factory rear wheel 2.15x18"

A4901090104404

$515.94

2

Rear wheel hub

A4601091004404

$334.04

3

Bearing spacer tube 121.5mm

A46010011000

$15.33

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

Spacing tube rear wheel

A46010016000

$16.17

8

SPOKE M4,5X193-18'' BLACK 1

7901007119330

$5.23

9

Spoke niple

7710907200004S

$2.54

10

Rear rim 2.15x18" DID

8121007010030A

$354.45

11

BRAKE DISC REAR D=220MM

25010960000

$159.79

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

19

REAR SPROCKET 48T ORANGE

7771015104804

Unavailable

19

REAR SPROCKET 50T ORANGE

7771015105004

$67.03

19

SPROCKET 51-Z

7771015105104

Unavailable

19

REAR SPROCKET 52T ORANGE

7771015105204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 520 GPXV GOLD

78910065118

$158.01

24

CONNECTING LINK F. 78910065118

78910066000

$7.85

33

Tyre locker 2,15"

78110090200

$20.56

34

NUT FOR WHEEL HOLDER

77110090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

40

axle rear wheel cpl.

A46010185044

Unavailable

41

chain tensioner right

A46010184000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Collar nut M22x1.5 WS=30

A46010086000

$5.79

97

wheel bearing repair kit

A46010015010

Unavailable
