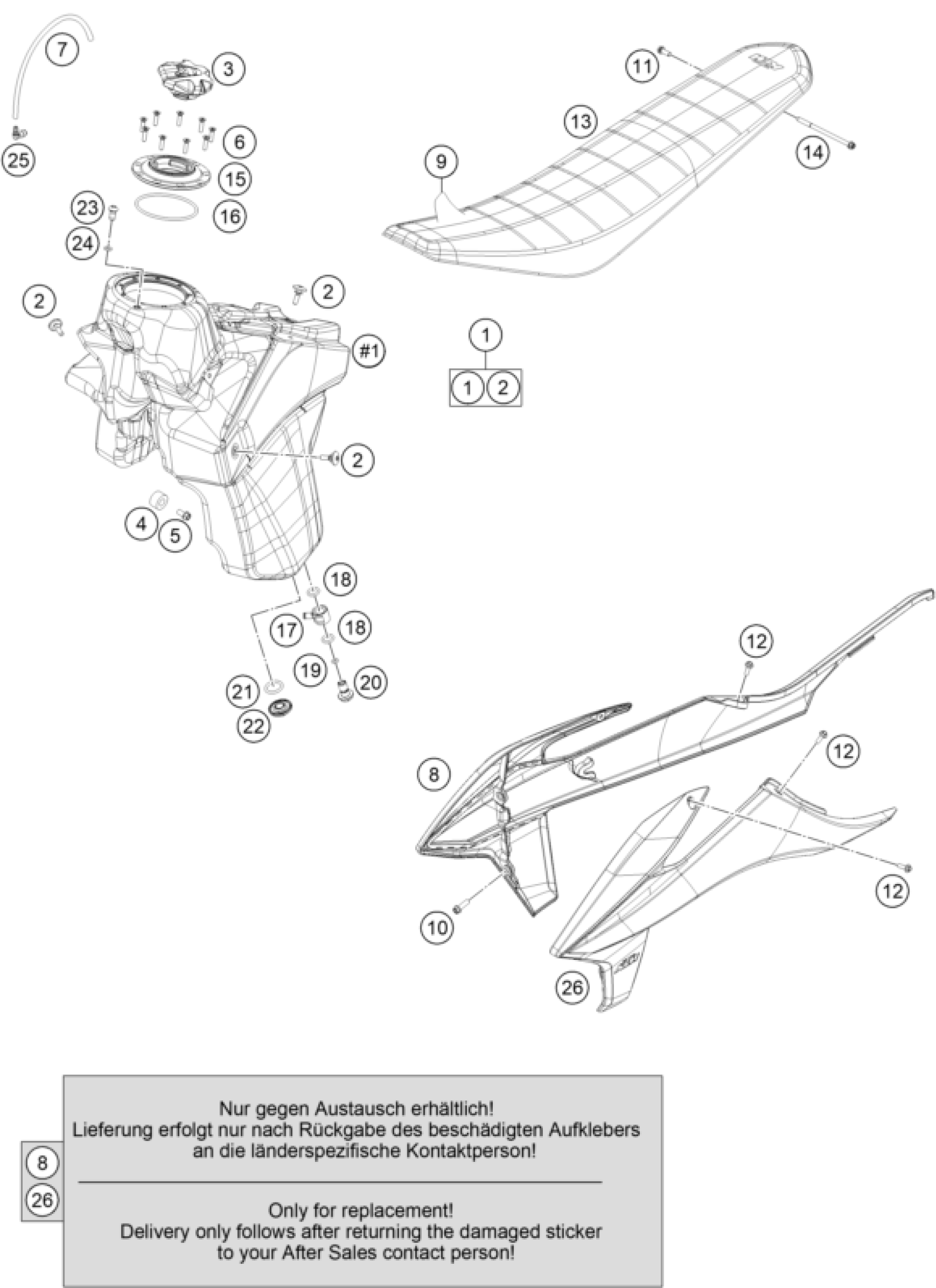

KTM 350 XC-F FACTORY EDITION 2022 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank cmpl.

79107913033

Unavailable

2

Seat holder screw

79107011000

Unavailable

3

Tank plug cpl. 14

7810700804404

Unavailable

4

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

5

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

6

COUNTERSUNK SCREW ISA25 M5X20

0019050201

Unavailable

7

PVC-hose 5.6X10X270MM

78007000270

Unavailable

8

Spoiler left

79108150000HDB

Unavailable

9

Seat cover Factory 18

79107040160

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

11

HH collar screw M6x16 TX30

0025060166

Unavailable

12

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

13

seat factory 18

79107040100

Unavailable

14

Seat screw

79107040010

Unavailable

15

Flange

79707913050

Unavailable

16

O-ring 84.00X3.5 NBR70

0770840035

Unavailable

17

Fuel connection

79007089200

Unavailable

18

O-RING 12,5X3,00 NBR 70

0770125030

Unavailable

19

O-RING 6,00X2,00 NBR 70

0770060020

Unavailable

20

Connector for XPE-tank

79007090100

Unavailable

21

O-RING 20,22X3,53 NBR70

0770202353

Unavailable

22

NUT F. FUEL PUMP M12

78107088014

Unavailable

23

FLAT HEAD SCREW ISO7380 M8X16

0738080166S

Unavailable

24

O-RING 8,00X2,0 VITON

0770080201

Unavailable

25

Angle piece fuel connector

79007089000

Unavailable

26

Spoiler right

79108151000HDB

Unavailable
