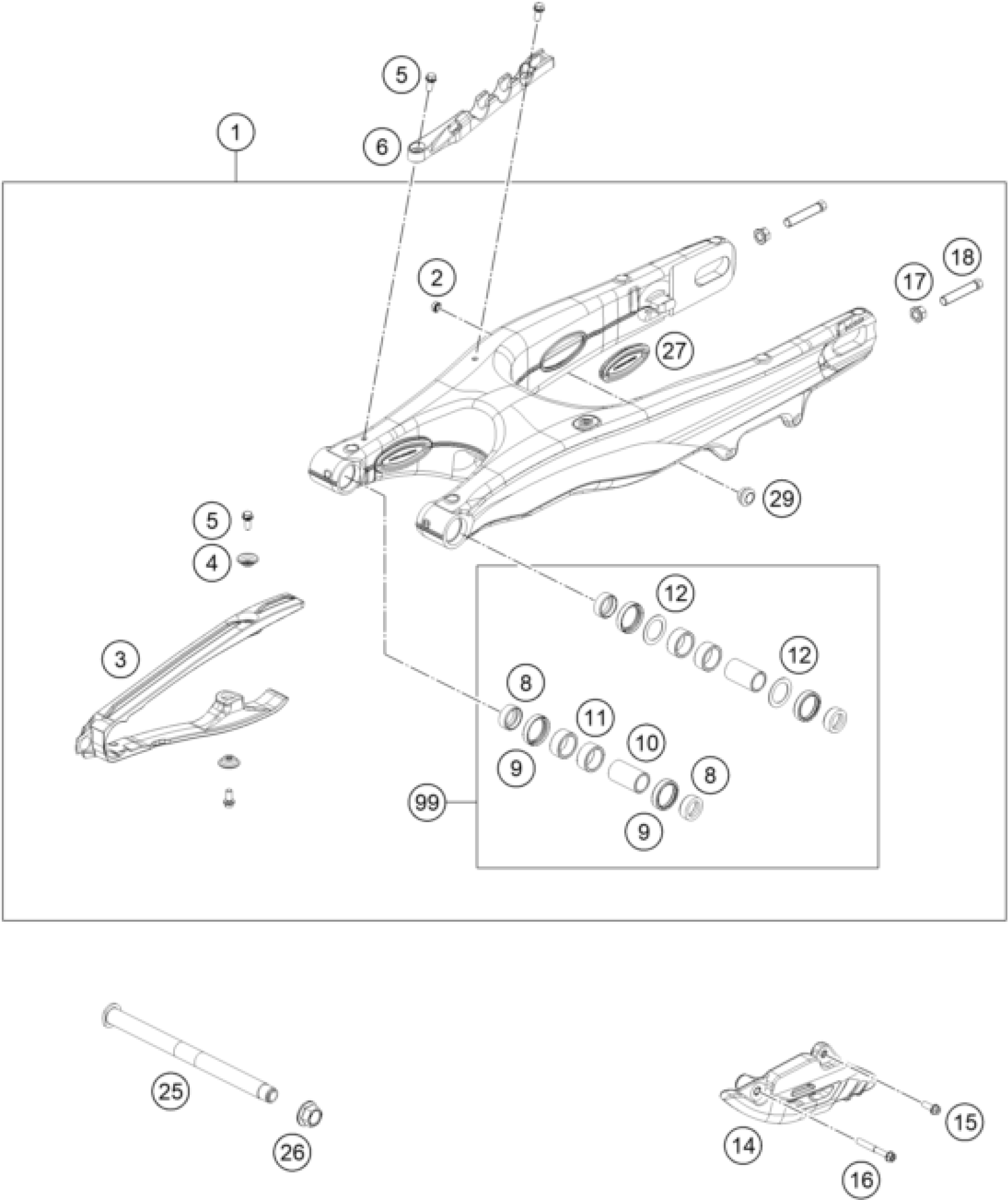

KTM 350 XC-F 2024 SWING ARM Diagram

#

Description
Price

1

Swingarm cpl

A46004030144

$544.44

3

Chain slider, left

A46004066000

$18.04

4

Chain slider bushing

77304066150

$1.49

5

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

6

Brake line guide

A46004042000

$7.56

8

Support f. shaft seal ring 16

77704034000

$13.46

9

radial shaft seal 25x32x7

0760253270

$6.63

10

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

11

Needle bushing HK2212V 22/28/1

0618222812

$9.81

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

Chainguide SX

A46004070000

$44.22

15

HH collar screw M6x16 TX30

0025060166

$3.08

16

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

25

Swingarm pivot

A46004037000

$70.96

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

A46004041000

$1.49

29

Threaded bush M12 d20

50180105

$15.51

99

Repair kit swingarm bearing

79004030110

Unavailable

2

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

17

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

18

screw M10x1.25x50 WS10

50304040100

$5.23
