VALVE DRIVE

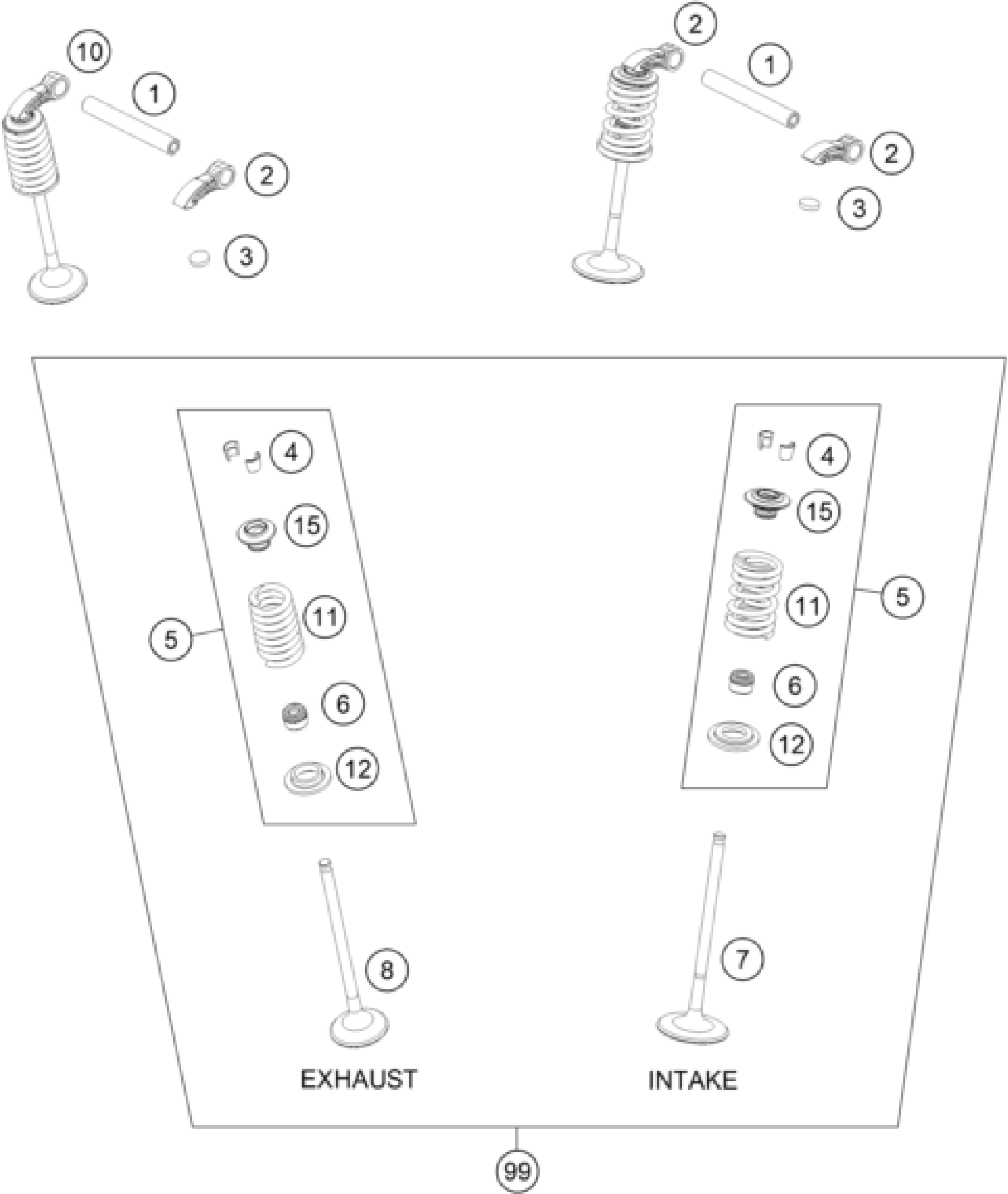

KTM 350 XC-F 2023 VALVE DRIVE Diagram
#
1
Cam follower shaft
77236056100
$7.00
2
VALVE LEVER
77236060100
$101.16
3
SHIM D=8,9/1,72
77036035172
Unavailable
3
SHIM D=8,9/1,76
77036035176
Unavailable
3
SHIM D=8,9/1,80
77036035180
Unavailable
3
SHIM D=8,9/1,84
77036035184
Unavailable
3
SHIM D=8,9/1,88
77036035188
Unavailable
3
SHIM D=8,9/1,92
77036035192
Unavailable
3
SHIM D=8,9/1,96
77036035196
Unavailable
3
SHIM D=8,9/2,00
77036035200
Unavailable
3
SHIM D=8,9/2,04
77036035204
Unavailable
3
SHIM D=8,9/2,08
77036035208
Unavailable
3
SHIM D=8,9/2,12
77036035212
Unavailable
3
SHIM D=8,9/2,16
77036035216
Unavailable
3
SHIM D=8,9/2,20
77036035220
Unavailable
3
SHIM D=8,9/2,24
77036035224
Unavailable
3
SHIM D=8,9/2,28
77036035228
Unavailable
3
SHIM D=8,9/2,32
77036035232
Unavailable
3
SHIM D=8,9/2,36
77036035236
Unavailable
3
SHIM D=8,9/2,40
77036035240
Unavailable
3
SHIM D=8,9/2,44
77036035244
Unavailable
3
SHIM D=8,9/2,48
77036035248
Unavailable
3
SHIM D=8,9/2,52
77036035252
Unavailable
3
SHIM D=8,9/2,56
77036035256
Unavailable
3
SHIM D=8,9/2,60
77036035260
Unavailable
4
valve collet
77036033000
$5.23
5
valve spring kit
A47036028010
$131.92
6
VALVE-STEM SEALING 05
77036027000
$6.44
7
Inlet valve
A47036030000
$177.81
8
Exhaust valve
A47036031000
$184.10
11
VALVE SPRING
79236028000
$34.49
12
Valve spring washer
79036236100
$2.05
15
VALVE SPRING RETAINER
79036232000
$21.68
99
valve kit
A47036030010
$688.49
10
Cam follower
A47036060000
$80.78
