Description

Price

1

Camshaft inlet valve

A47036009000

$171.28

2

Camshaft exhaust valve

A47036010044

$252.72

3

Slide bars

A47036004000

$15.42

4

TENSIONING RAIL

79236002000

$21.50

5

Slide bars

A47036001000

$8.97

6

BUSHING SCREW M6

77236001160

$5.23

7

BUSHING SCREW M8

77236002160

$3.08

8

o-ring 18.00x2.00 NBR70

0770180020

$2.05

9

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

10

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

11

HOLDING BOLT M24X1,5

77336008000

$20.56

12

o-ring 10.00x1.00 NBR70

0770010010

$2.05

13

threaded plug

77236080100

$6.63

14

Angle piece, engine breather

A47036081000

$5.23

15

SECURING PROTECTION

77236005000

$3.08

16

Timing chain

A47036013000

$63.76

17

DECO LEVER

79236016000

$32.44

18

NEEDLE ROLLER

0402061780

$2.05

19

DECO SPRING PIN L=10,6 07

77336016055

$17.57

20

SPRING FOR AUTO DECOMPR.

77336017030

$3.08

21

DECO SCREW PLUG

77336017050

$15.33

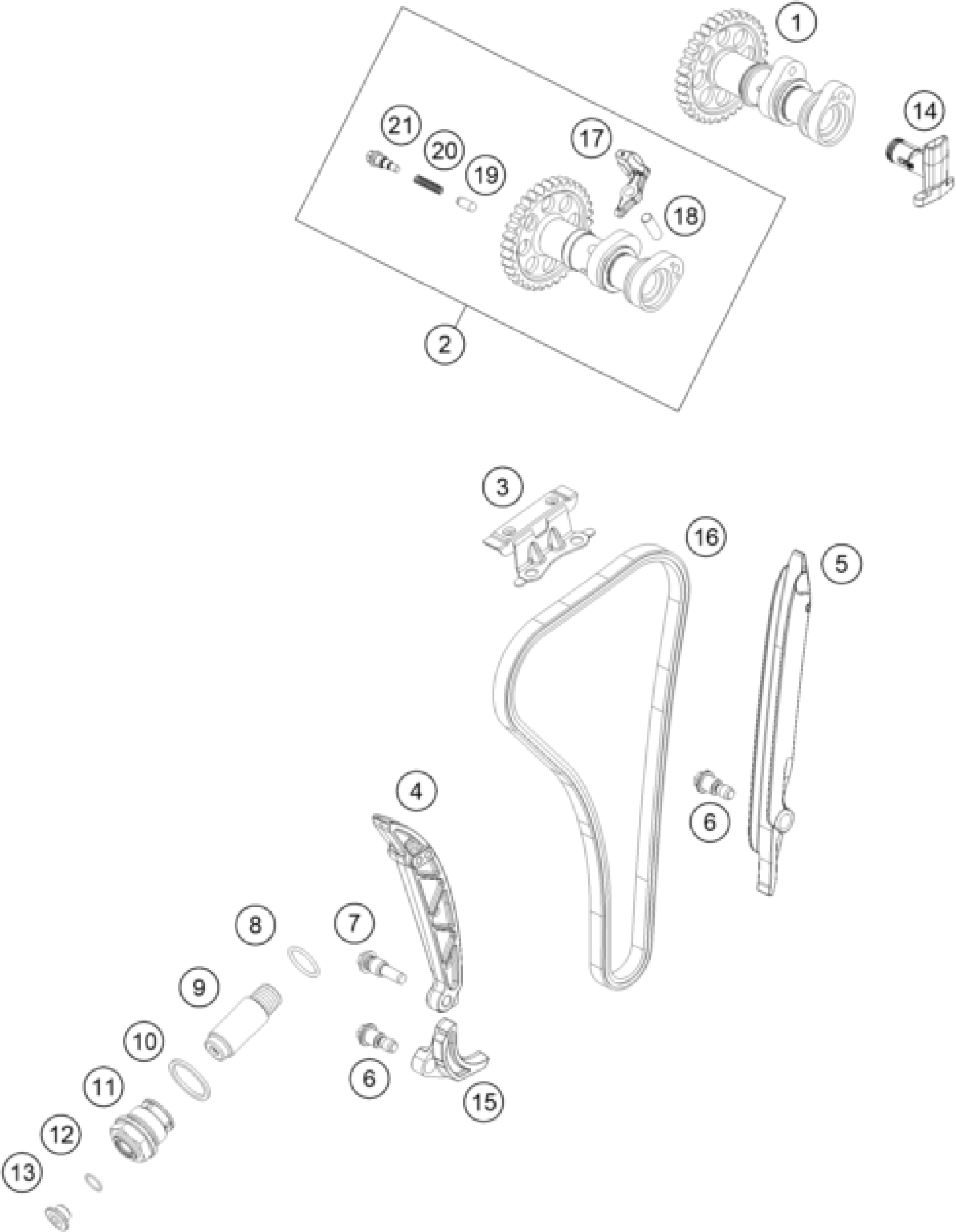

KTM 350 XC-F 2023 TIMING DRIVE Diagram

Camshaft inlet valve

Camshaft exhaust valve

Slide bars

TENSIONING RAIL

Slide bars

BUSHING SCREW M6

BUSHING SCREW M8

o-ring 18.00x2.00 NBR70

CHAIN ADJUSTER HYD. 05

CU SEAL-RING DIN7603 A24X29X2

HOLDING BOLT M24X1,5

o-ring 10.00x1.00 NBR70

threaded plug

Angle piece, engine breather

SECURING PROTECTION

Timing chain

DECO LEVER

NEEDLE ROLLER

DECO SPRING PIN L=10,6 07

SPRING FOR AUTO DECOMPR.

DECO SCREW PLUG
