Description

Price

1

ROTOR EFI CPL.

79239005044

$544.44

2

FLYWHEEL SCREW

77339010100

$5.60

3

IGNITION COVER GASKET

79230040000

$17.38

4

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

5

Stator

79239004100

$204.20

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

CABLE HOLDER PLATE

79230002050

$9.06

8

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

10

Ignition cover

7923000210015

$139.31

11

THREAD PIN DIN 913 M5X6

0913050063S

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

o-ring 24.00x2.50 Viton

07700240251

$3.08

17

SCREW PLUG M24X1,5

7723000216030

$36.64

18

Resistor Plug Cover

79139090000

$58.99

19

PLUG NGK LMAR9AI - 8

77239093000

$22.71

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

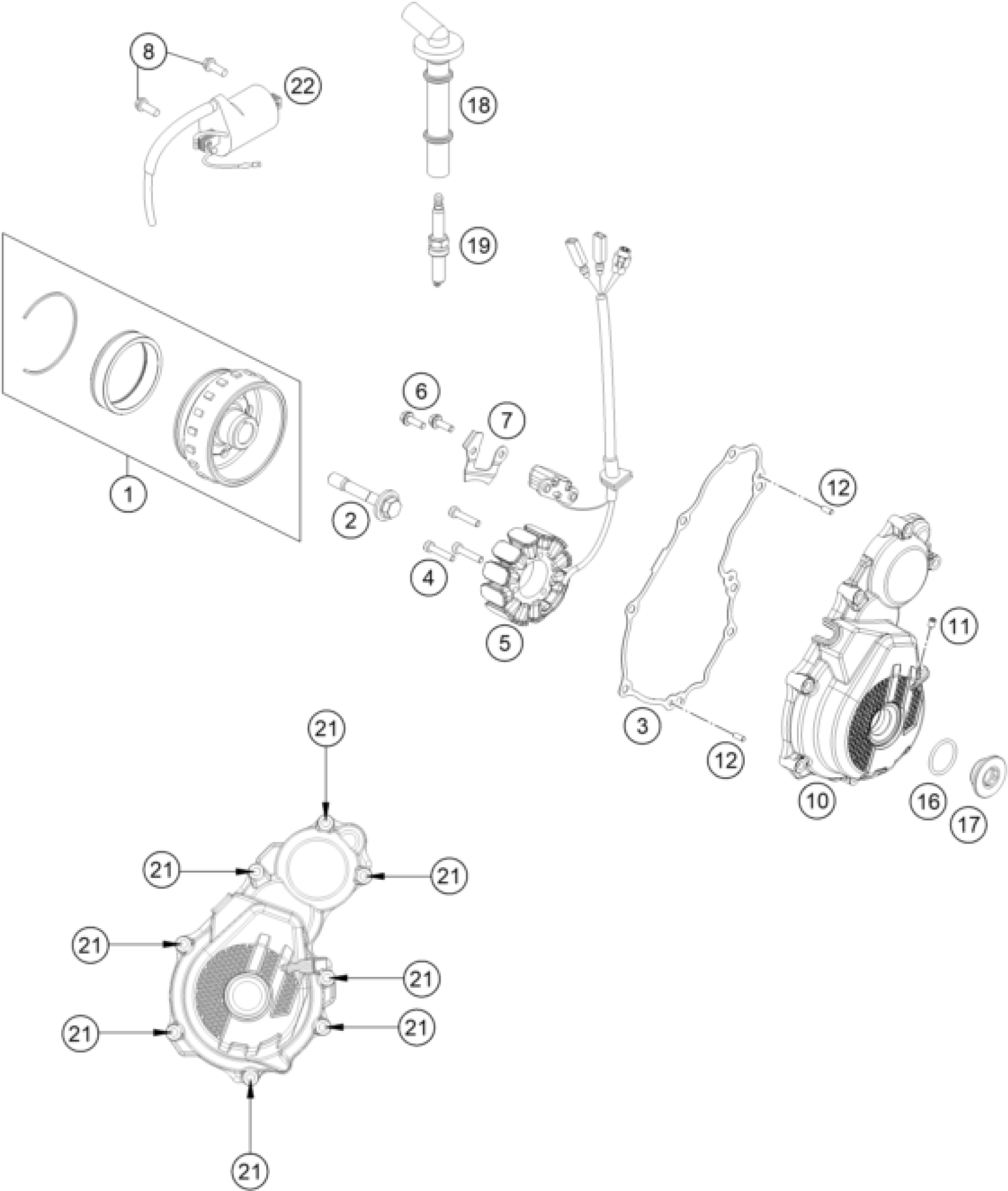

KTM 350 XC-F 2022 IGNITION SYSTEM Diagram

ROTOR EFI CPL.

FLYWHEEL SCREW

IGNITION COVER GASKET

Bolt DIN 6912 - M5x25 SS

Stator

HH collar screw M5x16 TX30

CABLE HOLDER PLATE

COLLAR SCREW M6X18 ISA30

Ignition cover

THREAD PIN DIN 913 M5X6

Needle roll.DIN5402 NRB 4X9.8

o-ring 24.00x2.50 Viton

SCREW PLUG M24X1,5

Resistor Plug Cover

PLUG NGK LMAR9AI - 8

HH collar screw M6x30 TX30

Ignition coil
