Description

Price

1

CAMSHAFT INTAKE

79236009000

$206.44

2

Camshaft Outlet with Deco Leve

79336010044

$258.33

3

TIMING CHAIN GUIDE TOP

79236004000

$31.22

4

GUIDE RAIL

79236001000

$12.61

5

TENSIONING RAIL

79236002000

$21.50

6

BUSHING SCREW M6

77236001160

$5.23

7

BUSHING SCREW M8

77236002160

$3.08

8

o-ring 18.00x2.00 NBR70

0770180020

$2.05

9

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

10

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

11

HOLDING BOLT M24X1,5

77336008000

$20.56

12

o-ring 10.00x1.00 NBR70

0770010010

$2.05

13

threaded plug

77236080100

$6.63

14

ANGLE PIECE F. BREATHER SYSTEM

77236081000

$4.11

15

SECURING PROTECTION

77236005000

$3.08

16

TIMING CHAIN

79236013100

$105.93

17

DECO LEVER

79236016000

$32.44

18

NEEDLE ROLLER

0402061780

$2.05

19

DECO SPRING PIN L=10,6 07

77336016055

$17.57

20

SPRING FOR AUTO DECOMPR.

77336017030

$3.08

21

DECO SCREW PLUG

77336017050

$15.33

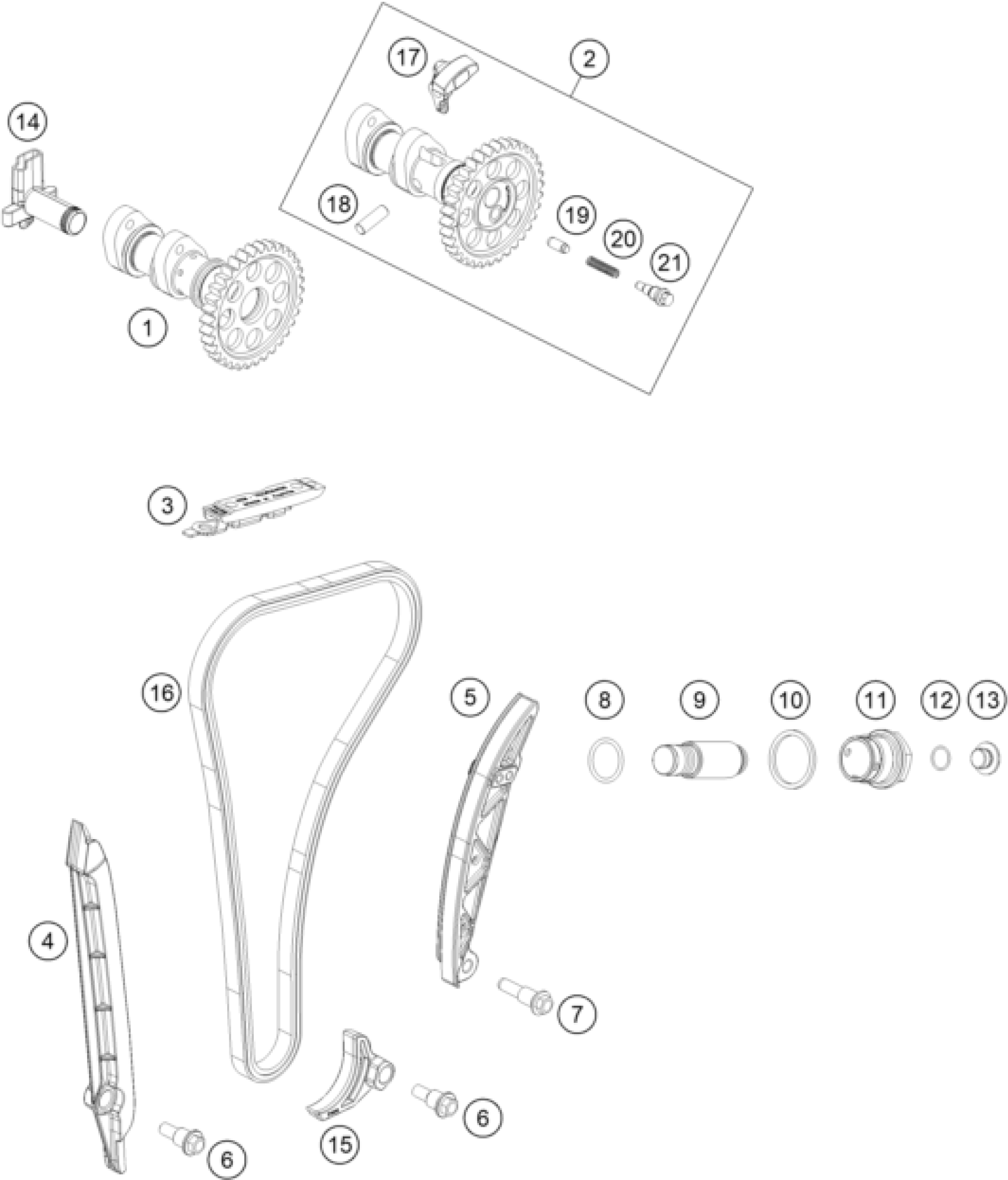

KTM 350 XC-F 2020 TIMING DRIVE Diagram

CAMSHAFT INTAKE

Camshaft Outlet with Deco Leve

TIMING CHAIN GUIDE TOP

GUIDE RAIL

TENSIONING RAIL

BUSHING SCREW M6

BUSHING SCREW M8

o-ring 18.00x2.00 NBR70

CHAIN ADJUSTER HYD. 05

CU SEAL-RING DIN7603 A24X29X2

HOLDING BOLT M24X1,5

o-ring 10.00x1.00 NBR70

threaded plug

ANGLE PIECE F. BREATHER SYSTEM

SECURING PROTECTION

TIMING CHAIN

DECO LEVER

NEEDLE ROLLER

DECO SPRING PIN L=10,6 07

SPRING FOR AUTO DECOMPR.

DECO SCREW PLUG
